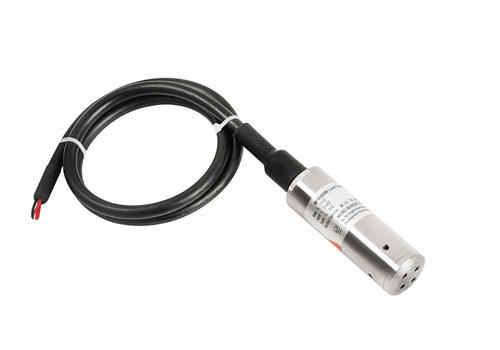

Analog 2-wire Liquid 24VDC Level Transmitter MPM489W

Features:
1. Low cost
2. Integrated construction;
3. IP68;
4. High stability & reliability;
5. RoHS;

Applications:

1. Medicine;
2. Metallurgy;
3. City water;
4. Drainage and hydrology;
5. Power station;
6. Mine

Options:
1 .Intrinsic safe version;
2 .Fixed flange;
3. Water-proof connecting box;
4. Lightening-proof connecting box

Specifications:
1. Range(FS): 1 2 5 10 20 50 100 200mH₂O
2. Overpressure: 2 times FS
3. Accuracy:      0.5%FS
4. Stability:      range>20mH₂O, ±0.2%FS/
range≤20mH₂O, 20mmH₂O
5.Thermal drift:                       zero              span
range>10mH₂O     0.02%FS/ºC        0.05%FS/ºC
range≤10mH₂O     0.05%FS/ºC        0.05%FS/ºC
6. Application temp. range: -10~80ºC;
7. Storage temp. range:    -40~100ºC
8. Power supply:   12~28VDC
9. Output signal:   4~20mADC(2-wire)
10 .Load (Ω):     <(Uv-12)/0.02

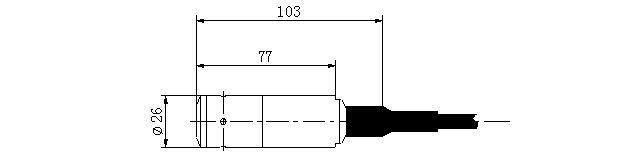

Outline Construction:
(Unit:mm)

Order Guide:

MPM489W

Level Transmitter

Range

Pressure range: 0~1200mH2O

[0~XmH₂O] L

X:actual measurement range L: cable length suggested L-X=(1~2)m

Code

Output signal

4~20mADC

Code

Construction material

Diaphragm

Port

Housing

SS 316L

Tantalum

Code

Others

M₁

0~100% indicator

Aluminum connection box with display

Aluminum connection box without display

MS200 water-proof connection box (default)

PD140 lightening-proof protection device

Intrinsic safe version ExiaIICT6

C₁

M20×1.5 male

C₃

G1/2 male

F₁

Fixed flange

MPM489W [0~2mH₂O]5 E 22 Yc the whole spec

Prod Model:	MPM489W
Accuracy:	0.5%Fs
Kind:	Liquid Level Transmitter
Structure:	All in One
Range:	0-1mh2o...200mh2o
Principle:	Piezoelectric Type
Output Signal:	4~20madc
Wire:	2-Wirre
Protection:	IP68
Housing:	Stainless Steel
Operation Temp:	-10~80c
