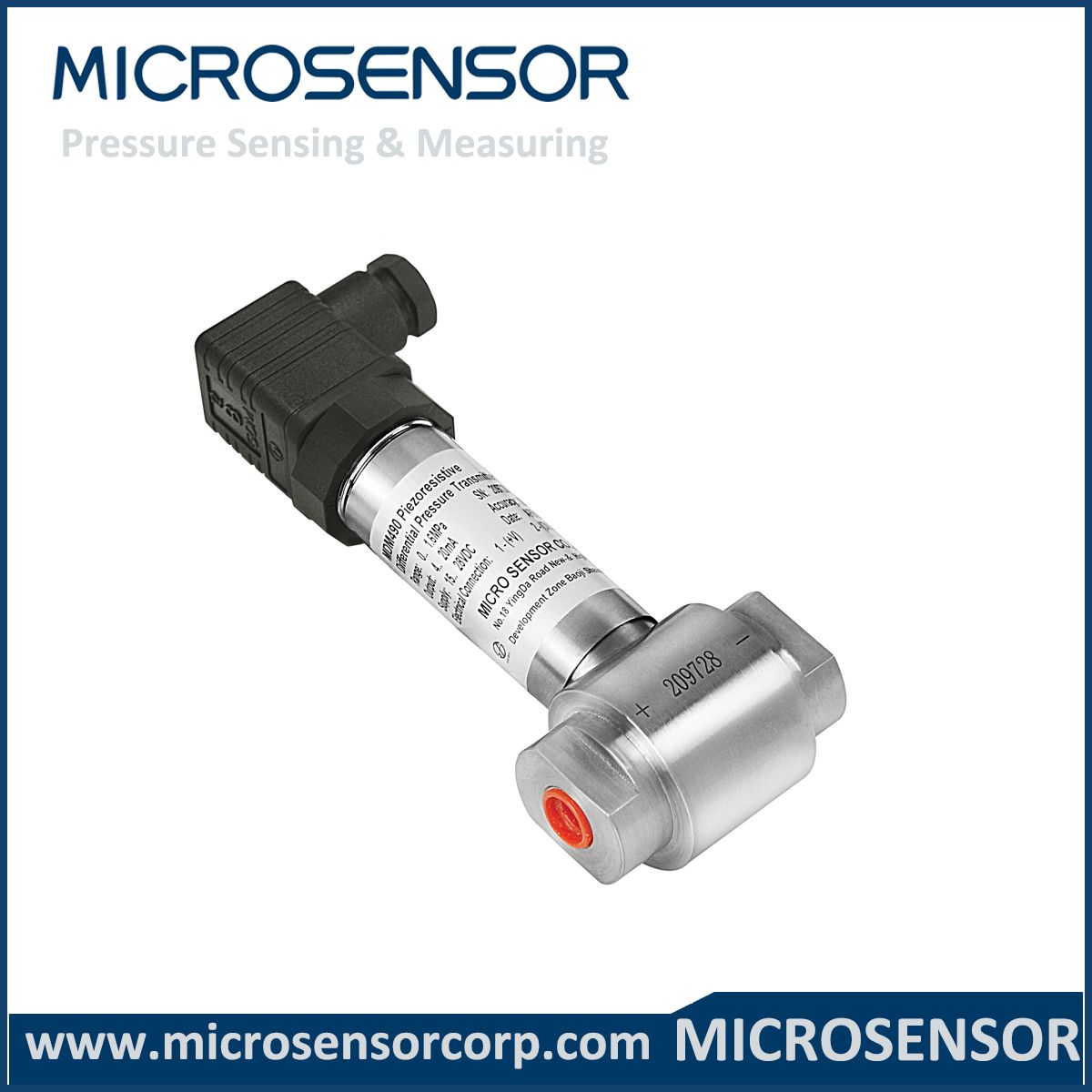

CE Approved Analog Differential Pressure Transmitter MDM490
Features
·Full stainless steel construction, compact size, easy installation;
·Laser welding, full-sealed construction; protection IP65;
·Using piezoresistive differential pressure sensor, 316L isolated diaphragm;
·Temperature compensation and aging, stable performance;
·Zero and span adjustable outside;
·Ex-proof version MDM490 conforms to GB3836.4 standard; ex-proof certificate is approved;
·Ship-use product conforms to CCS Rules of Classification of Sea-going Steel Ships(2006); ship-use certificate is approved;
·CE and ROHS certificatesElectric Characteristic
Power supply: 2-wire 15~28VDC 3-wire 15~28VDC
Output signal: 2-wire 4~20mADC 3-wire 0/1~5VDC,0~10/20mADC
Electric connection: plug connection or Φ7.2mm 7-pin cable
Response time(10%~90%): ≤1ms Insulation resistor: 100MΩ,50VDC
Construction Material
Housing: stainless steel 1Cr18Ni9Ti
Diaphragm: stainless steel 316L
O-ring: Viton
Filled liquid: silicon oil Pressure port: G1/4 female
Environment Condition
Shock effect: ≤1% at 3gRMS, 30~2000Hz
Impact: ≤1% at 100g, 10ms Media: liquid or gas which is compatible with construction material

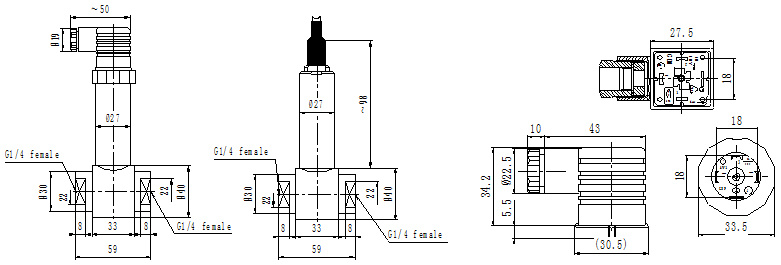

Outline Dimension
Specifications: | Range code | 0A | 02 | 03 | 07 | 08 | 09 | 10 | 12 | 13 |
| Unit | kPa | MPa |
| Measure range | 0~35 | 0~70 | 0~100 | 0~200 | 0~350 | 0~700 | 0~1 | 0~2 | 0~3.5 |
| +orvepressure | 70 | 150 | 200 | 400 | 700 | 1400 | 2.0 | 4.0 | 7.0 |
| -overpressure | 35 | 70 | 100 | 200 | 350 | 700 | 1.0 | 1.0 | 1.0 |
| Max.static pressure | ≤20MPa |
| | Min. | Typ. | Max. | Unit |
| Accuracy | 0~100kPa | | 0.25 | 0.5 | %FS |
| 200~3500kPa | | 0.25 | 0.5 |
| Zero Thermal error | 0~100kPa | | 0.75 | 1.25 | ±%FS, @25ºC |
| 200~3500kPa | | 0.5 | 0.75 |
| FS Thermal error | 0~100kPa | | 0.75 | 1.25 |
| 200~3500kPa | | 0.5 | 0.75 |
| Stability | ≤200kPa | 0.5 | %FS/year |
| ≤3500kPa | 0.2 |
| Static pressure effect | 0.05 | ±%FS, each 100kPa |
| Compensation temp. | 0~50 |
ºC
|
| Operation temp. | -10~80 |
| Storage temp. | -40~120 |
Electric performance:
1. Power supply: 2-wire 15~28VDC 3-wire 15~28VDC
2. Output signal: 2-wire 4~20m ADC 3-wire 0/1~5VDC 0·10.20m ADC
3. Pressure connection: G1/4 female thread
4. Electric connection: plug, 7.2mm cable
5. Respond time (10%~90%): ≤1ms
6. Insulation resistor: 100MΩ,50VDC
Order Guide:| MDM490 | Piezoresistive Differential Pressure Transmitter |
| | | Code | Pressure range: kPa or MPa |
X[0~X]
kPa or MPa | Code | Pressure range
kPa | overpressurekPa | Code | Pressure
Range MPa | Overpressure MPa |
| + | - | + | - |
| 0A | 0~35 | 70 | 35 | 09 | 0~0.7 | 1.4 | 0.7 |
| 02 | 0~70 | 150 | 70 | 10 | 0~1.0 | 2.0 | 1.0 |
| 03 | 0~100 | 200 | 100 | 12 | 0~2.0 | 4.0 | 1.0 |
07
| 0~200 | 400 | 200 | 13 | 0~3.5 | 7.0 | 1.0 |
| 08 | 0~350 | 700 | 350 | | | | |
| | | | Code | Output signal |
| E | 4~20mADC |
| F | 1~5VDC |
| J | 0~5VDC |
| Q | 0~10mADC |
| U | 0~20mADC |
| V | 0~10VDC |
| | | | | Code | Construction material |
| | Diaphragm | Pressure port | Housing |
| | 22 | SS 316L | SS | SS |
| | 24 | SS 316L | SS 316L | SS 316L |
| | | | Code | Others |
| | C4 | G1/4 female |
| | B1 | Plug connection |
| | B2 | Cable connection Default length: 1.5m |
| | M3 | 31/2LCD digital indicator(only 4~20mADC) |
| | M4 | 31/2LED digital indicator (only 4~20mADC) |
| | i | Intrinsic safe version ExiaIICT6(>35kPa) /ExiaIIBT6Ga(<=35kPa) |
| | T | Ship-use |
| | | |
| MDM490 [0~100]kPa E 22 C4B2 the whole spec |
| | | | | | | | | | | | | | | | | | | | |
