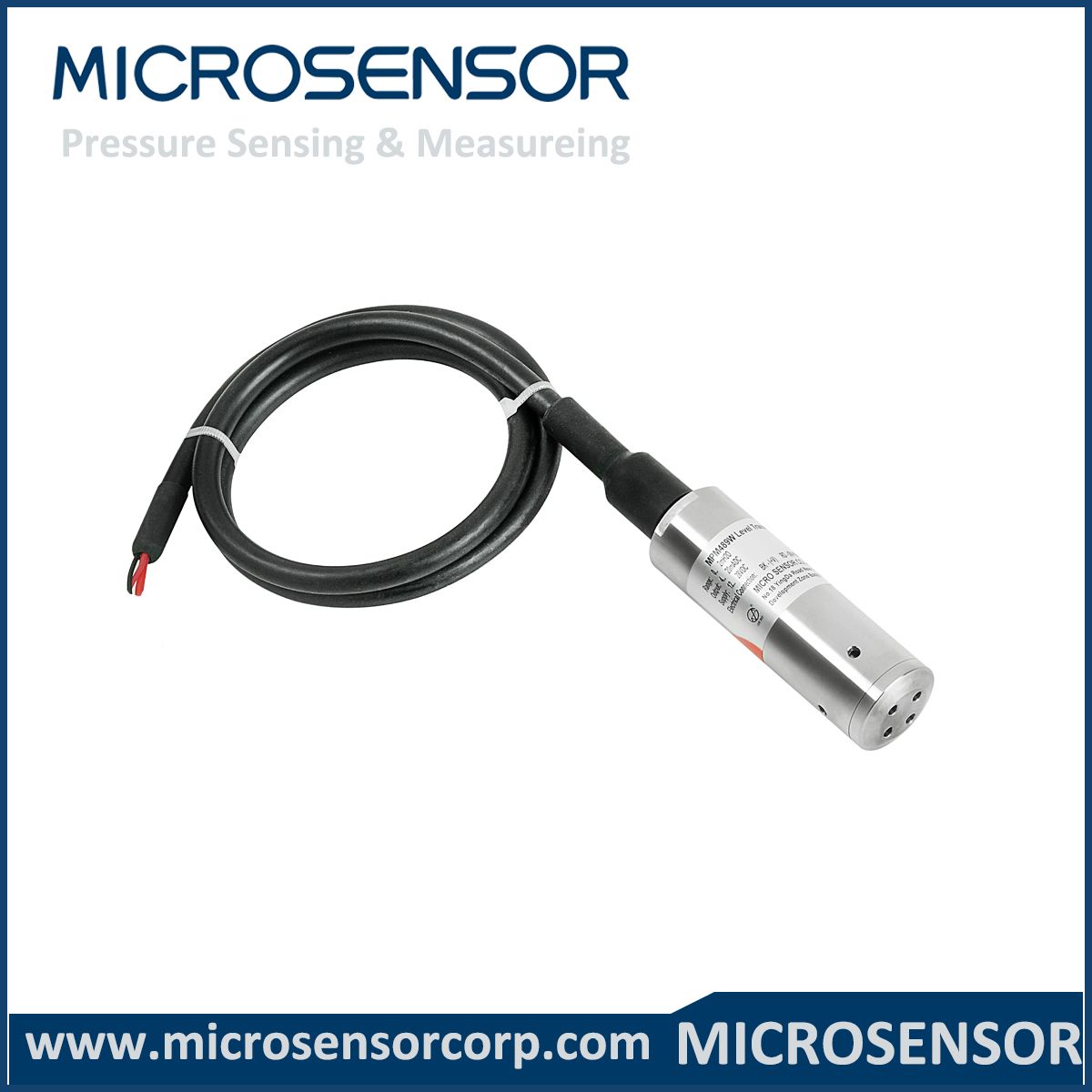

Analog 2-wire Oil Tank Level Sensor MPM489W

Name: Analog 2-wire Oil Tank Level Sensor MPM489W
Brand: all-electronics-online.com
SKU: 839572985
Availability: InStock
Rating: 4.7 (34 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM489W
Kind:	Liquid Level Transmitter
Structure:	All in One
Range:	0-1mh2o...100mh2o
Principle:	Piezoelectric Type
Accuracy:	0.5%Fs
Operation Temp:	-10~80c
Storage Temp:	-40~100c
Overpressure:	2 Times Fs
Output Signal:	4~20madc
Protection:	IP68

Product Description

Analog 2-Wire Oil Tank Level Sensor MPM489W

Features:
1. RoHS;
2. 2-Wire;
3. Cost-efficient;
4. IP68;
5. High stability & reliability;

Applications:
1. Medicine;
2. Metallurgy;
3. City water;
4. Drainage and hydrology;
5. Power station;
6. Mine

Options:
1.     Intrinsic safe version;
2.     Fixed flange;
3.     Water-proof connecting box;
4.     Lightening-proof connecting box

Description:
MPM489W Industry Level Transmitter has been certified by RoHS. This is a compact and light product, it can be widely used in medicine, metallurgy, city water, drainage and hydrology fields to measure and control level pressure.

Specifications:
1. Range(FS): 1 2 5 10 20 50 100 200mH2O
2. Overpressure: 2 times FS
3. Accuracy:      0.5%FS
4. Stability:      range>20mH2O, ±0.2%FS/
range≤20mH2O, 20mmH2O
5. Thermal drift:                       zero              span
range>10mH2O     0.02%FS/ºC        0.05%FS/ºC
range≤10mH2O     0.05%FS/ºC        0.05%FS/ºC
6. Application temp. range: -10~80ºC;
7. Storage temp. range:    -40~100ºC
8. Power supply:   12~28VDC
9. Output signal:   4~20mADC(2-wire)
10.   Load (Ω):     <(Uv-12)/0.02

Outline Construction:
(Unit:mm)

Order guide:

MPM489W

Level Sensor

Range

Pressure range: 0~1200mH2O

[0~XmH2O] L

X:actual measurement range L: cable length suggested L-X=(1~2)m

Code

Output signal

4~20mADC

Code

Construction material

Diaphragm

Port

Housing

SS 316L

Tantalum

Code

Others

0~100% indicator

Aluminum connection box with display

Aluminum connection box without display

MS200 water-proof connection box (default)

PD140 lightening-proof protection device

Intrinsic safe version ExiaIICT6

M20×1.5 male

G1/2 male

Fixed flange

MPM489W [0~2mH2O]5 E 22 Yc the whole spec
