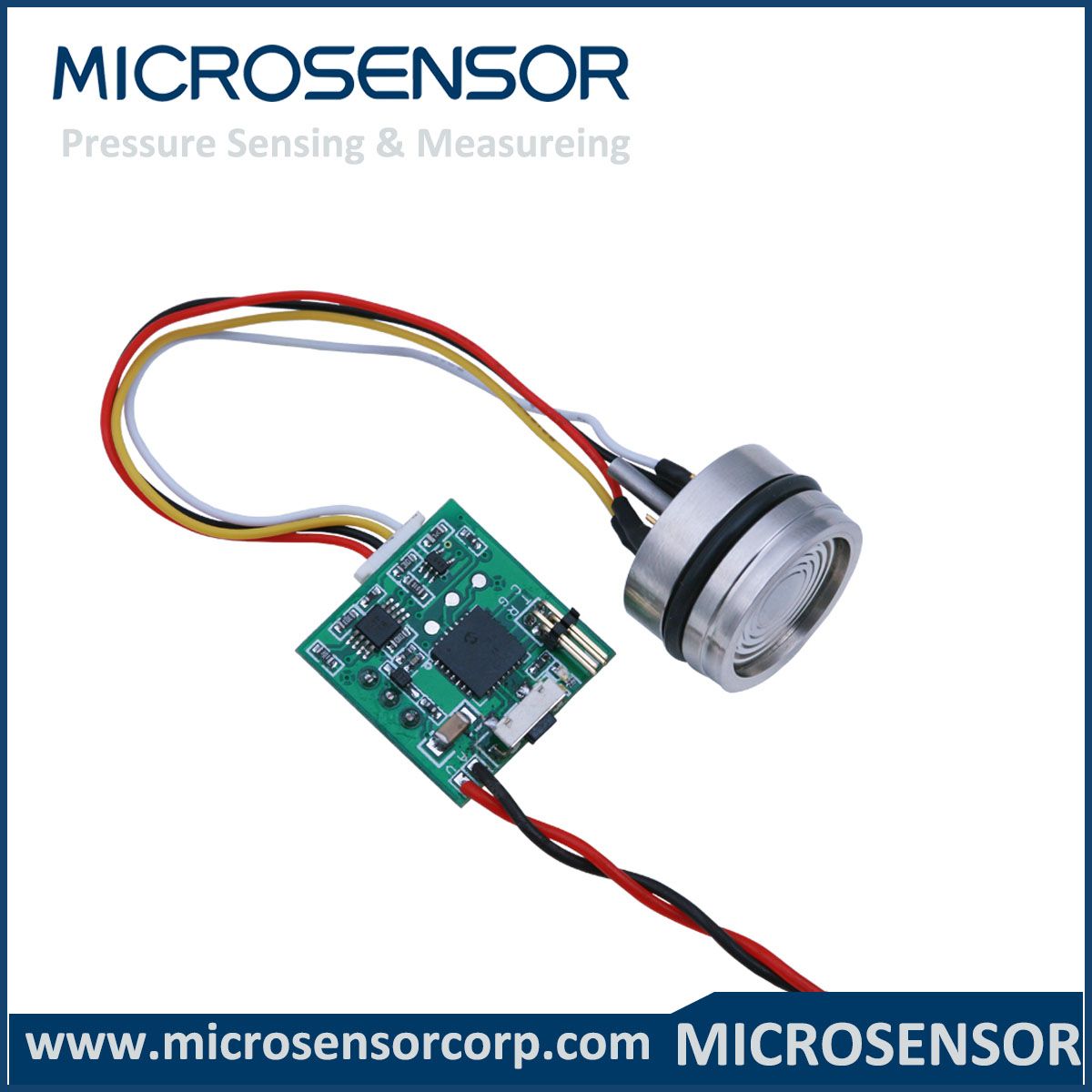

Analog 4~20mADC Liquid Pressure Transmitter MPM4891B
Price: |
Negotiable/Piece |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union |
Analog 4~20mA DC Liquid Pressure Transmitter MPM4891B Features•Safe, reliable
• Short circuit protection and reversed polarity protection
• 2-wire current output
• Manual zero-clearing function
• Manual secondary calibration• compact size, easy installationIntroduction MPM4891B is newly developed pressure transmitter parts with high accuracy and stability. It is made up of piezo-resistive pressure sensor and specialized processing circuit. It is stable, reliable, compact in size. With zero clearing button and manual pressure calibration function, it is easy for operation. MPM4891B is with OEM package, suitable for application and development for various pressure transmitter. SpecificationsRange: 0kPa~10kPa…40MPa Overpressure: 1.5FS Pressure Type: Gauge, Absolute or Sealed Gauge Accuracy: ±0.5%FS Power Supply: 11V~28V DC Output: 4mA~20mA DC (2-wire) Load Resistance: ≤ (U-11) / 0.02(Ω) Zero Thermal Drift: ±0.02%FS/ºC FS Thermal Drift: ±0.02%FS/ºC | Long-term Stability: ±0.3%FS/year Operation Temperature: -25ºC~75ºC Storage Temperature: -40ºC~80ºC Relative Humidity: 0%~85% O-ring: Viton Diaphragm: SS316L Leading Wire: silicone rubber Gross Weight: 22g Media Compatibility: liquid or gas compatible with stainless steel and viton |
Button Function 1. Without pressure, press the button for 5s for zero clearing, it outputs 4mA DC.
2. If the transmitter is excited while pressing the button, it enters calibration mode, the output can be calibrated by LED indication. Please see below chart for functions.Button Operation | Phenomenon | Function |
Excite power supply after pressing button | LED light on | Enter calibration mode |
Pressurize to lower limit of pressure | LED flash 2 times | Zero calibration finished, low current calibration finished |
Pressurize to upper limit of pressure | LED flash 3 times | FS calibration finished, middle current calibration finished |
Pressurize to upper limit of pressure | LED flash 4 times | Calibration coefficient storage finished, high current calibration finished |

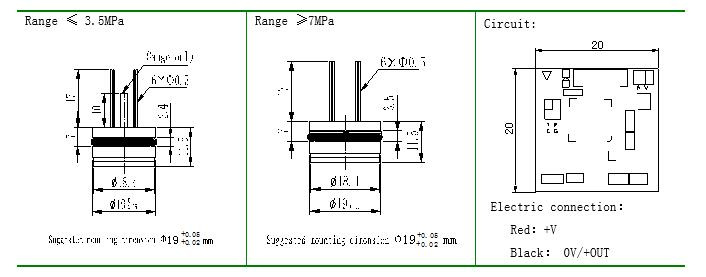

Outline Construction and InstallationOutline Construction (Unit: mm):
Order GuideMPM4891B | Pressure Transmitter |
| | Range | 0kPa~10kPa…40MPa |
[0~X] kPa or MPa | X: actual measurement range |
| | Code | Output |
E | 4mA~20mA DC (2-wire) |
| | Code | Construction Material |
22 | SS316L |
| | Code | Pressure Type |
G | Gauge |
S | Sealed Gauge |
A | Absolute |
| | | |
MPM4891B [0~200]kPa E 22 G the whole spec. |
| | | | | | | | | | |
Notes1. Please pay attention to protect sensor isolated diaphragm to avoid damaging the sensor or affecting the performance.
2. Please make sure the measured media shall be compatible with the contacting material.
3. If users have special requirement, please contact us freely.
Prod Model: |
MPM4891B |
Measurement Range: |
0kpa~10kpa…40MPa |
Output: |
Analog Sensor |
Usage: |
Pressure Sensitive Sensor |
Theory: |
Processing Pressure Measurement |
Power Supply: |
11V~28V DC |
Output Signal: |
4~20madc 2-Wire |
Accuracy: |
0.5%Fs(Min.) 1.0%Fs(Typ.) |
Long-Term Stability: |
=<0.5%Fs/Year |
Protection: |
IP65 |
Operate Emperature: |
-25ºC~75ºC |
Pressure Range: |
0kpa~10kpa…40MPa |
