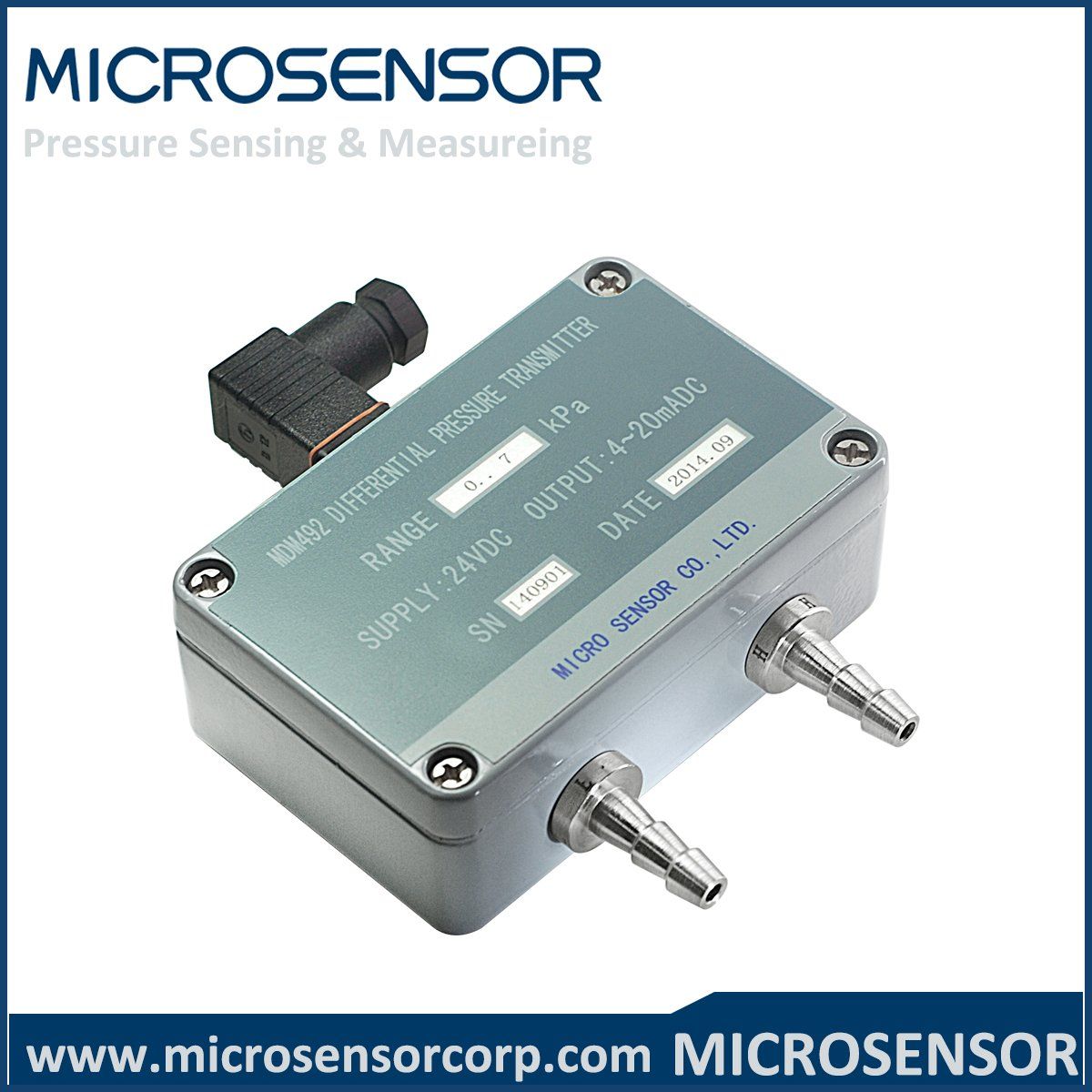

Analog Accurate Differential Pressure Sensor MDM492

Features:
1.      Compact
2.      2-wire
3.      4-20m ADC output
4.      For lower pressure
5.      For non-corrosive, non-conductive liquids and gases

Specifications:
1.      Limited pressure: 5kPa 12.5kPa 35kPa
2.      Accuracy: ≤ 1%FS
3.      Long-term stability: ≤ 10Pa/year ≤ 25Pa/year ≤ 70Pa/year
4.      Media temp.: -10° C~85° C
5.      Storage temp.: -40° C~125° C
6.      Compensation temp.: 0° C~70° C
7.      Relative humility: 0~80%
8.      Pressure port: Stainless steel 1Cr18Ni9Ti
9.      Electric housing: Aluminum-alloy

Outline Construction:

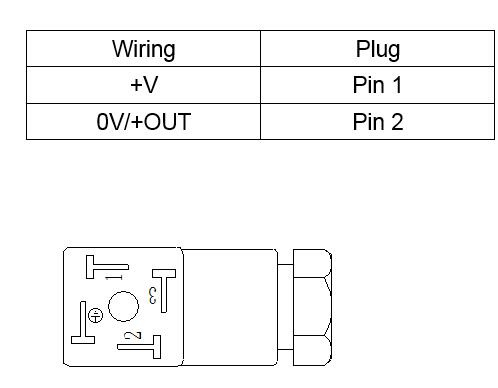

Electric Connection:

Order Guide:

MDM492	Differential Pressure Transmitter
	Code	Pressure range: 0~17kPa
	[0~X]kPa	X=actual measure range
		Code	Output signal
		E	4~20mADC

MDM492 [0~2.5]kPa E the whole spec

Order Note
If the user has special requirement, please feel free to contact our company.

Prod Model:	MDM492
Low Ranges For Gas:	0-1kpa, 2.5kps, 7kpa
Accuracy:	Less Than 1%Fs
Output:	4~20madc
Key Words:	Compact 2-Wire Pressure Transducer
Wiring:	2-Wire
Pressure Type:	Differential Pressure
Max Static Pressure:	300kpa
Max Over Pressure:	21kpa
Max Pressure:	35kpa
Compensation Temperature:	0~70c
Accuracy Grade:	0.25%Fs(Typ.)
