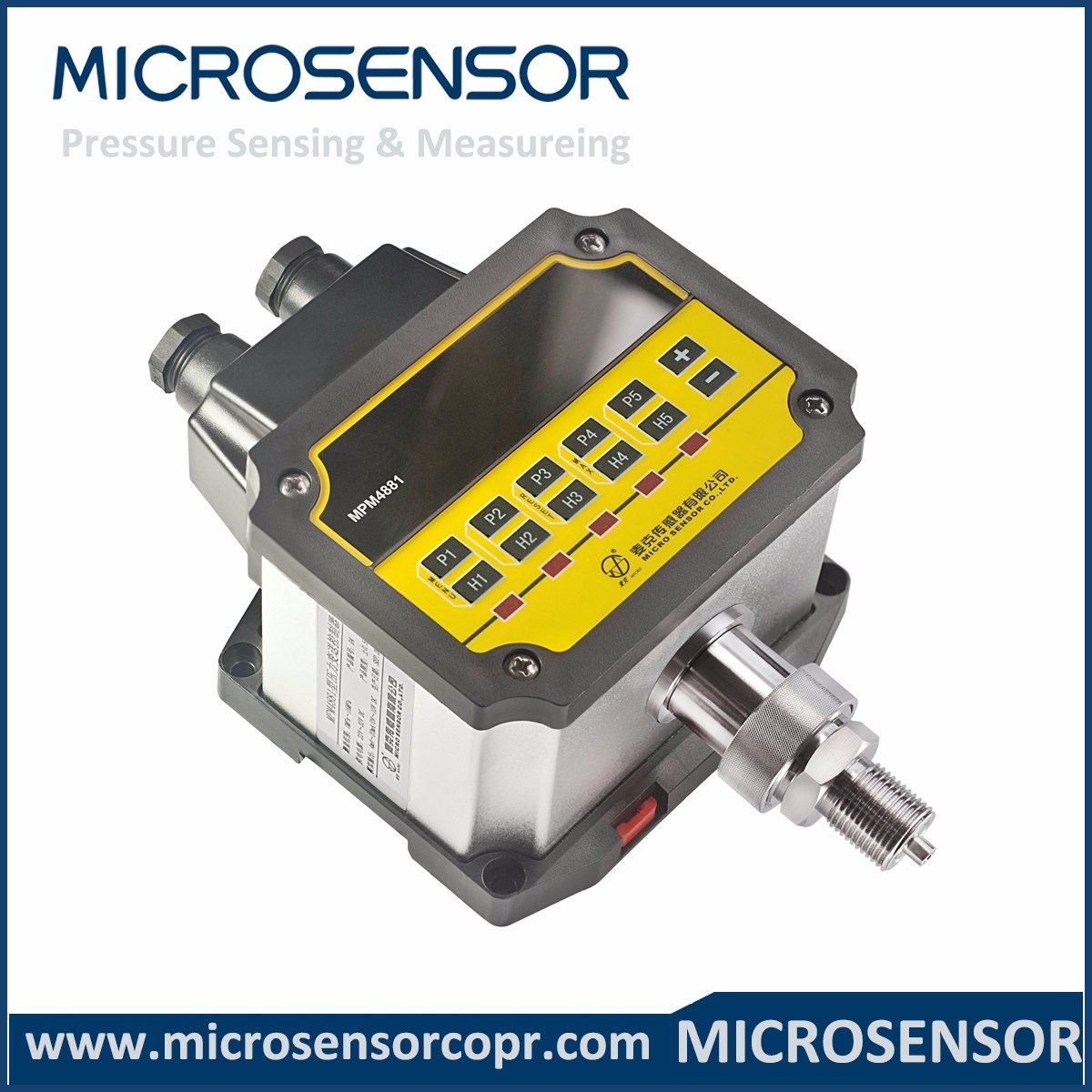

                   Analog Output Pressure Transmitting Controller for Industrial MPM4881

Features:
1.   Analog output;
2.     Easy operation;
3.     LED display;
4.     Protection for hardware wrong operation;

Application:
1.      Industrial;
2.      Water;
3.      Hydrology;
4.      Geology

Specifications:

Input

Power Supply: (220±44)V AC / 22V~32V DC;    Pressure Range: 0kPa~10kPa... 60MPa(MPM4881)
                                                            0kPa~35kPa... 3.5MPa(MDM4881)
Overpressure: 1.5FS                          Static Pressure: 20MPa (MDM4881)

Output

Accuracy: ≤±0.25%FS; ≤±0.5%FS;                     Repeatability: ≤±0.2%FS;
Display: 4 digit 0.56 inch 14-segment LED display;       Temperature Drift: ≤±0.03%FS/ºC(zero/span);
Display Refresh: 200ms.

Analog Output

Current Version: 4mA~20mA DC, Load resistance ≤560Ω;
Voltage Version: 0V~10V DC, Load resistance ≥10kΩ.

Switch Output

Output Mode: 5 relays, normally open or close contact;    Voltage Supply: ≤277V AC;≤30V DC;
Current Supply: ≤3A;                                 Response: < 1ms;
Switch Point Setting: 1.5%FS~99%FS;                   Return Difference Setting: 1%FS~10%FS;
Relay Life: ≥10,000,000times/load (min.);≥100,000times/load (max.);         Switch Delay: 0s~99s.

Environmental Conditions

Operation Temperature: -25ºC~65ºC/-13ºF~149ºF;        Relative Humility: 0%~85%;
Storage Temperature: -40ºC~70ºC/-40ºF~158ºF;        Media Temperature: -20ºC~80ºC/-50ºF~176ºF;
Electromagnetic compatibility: GB/T 17626.2/3/4-2006;
Shock: ≤5g/10Hz...500Hz(IEC 60068-2- 6-2007);
Impact: ≤10g/11ms(IEC 60068-2-27-2008);
Protection: IP65.

Order guide:

MPM4881/ MDM4881	Pressure / Differential Pressure Transmitting Controller
	Pressure Range
	[0~X]MPa	0kPa~10kPa... 60MPa(MPM4881); 0kPa~35kPa... 3.5MPa(MDM4881)
		Code	Power Supply
		AC	220V AC
		DC	22V~32V DC
			Code	Output Signal
			KA	5-relay +analog (4mA~20mA)
			KV	5-relay +analog (0V~10V)
			KAV	5-relay +analog (4mA~20mA / 0V~10V double use)
				Code	Process connection
				C1	M20×1.5 male union joint with face sealed
				C3	G1/2 male
				C4	G1/4 female
				C5	M20×1.5 male union joint with waterline sealed
MPM4881/ MDM4881	[0~2]MPa	DC	KA	C5	←the whole spec.

Prod Model:	mpm4881
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measuring Range:	0kpa~10kpa... 60MPa
Accuracy:	0.25%Fs (Typ.)
Overpressure:	1.5 Times Fs
Static Pressure:	20MPa
Repeatability:	+-0.2%Fs
Output Signal:	4~20madc
Display Refresh:	200ms
Storage Temp:	-40~70c
Operation Temp:	-25~65c
Media Temperature:	-20~80c
Pressure Range:	0kpa~10kpa... 60MPa
