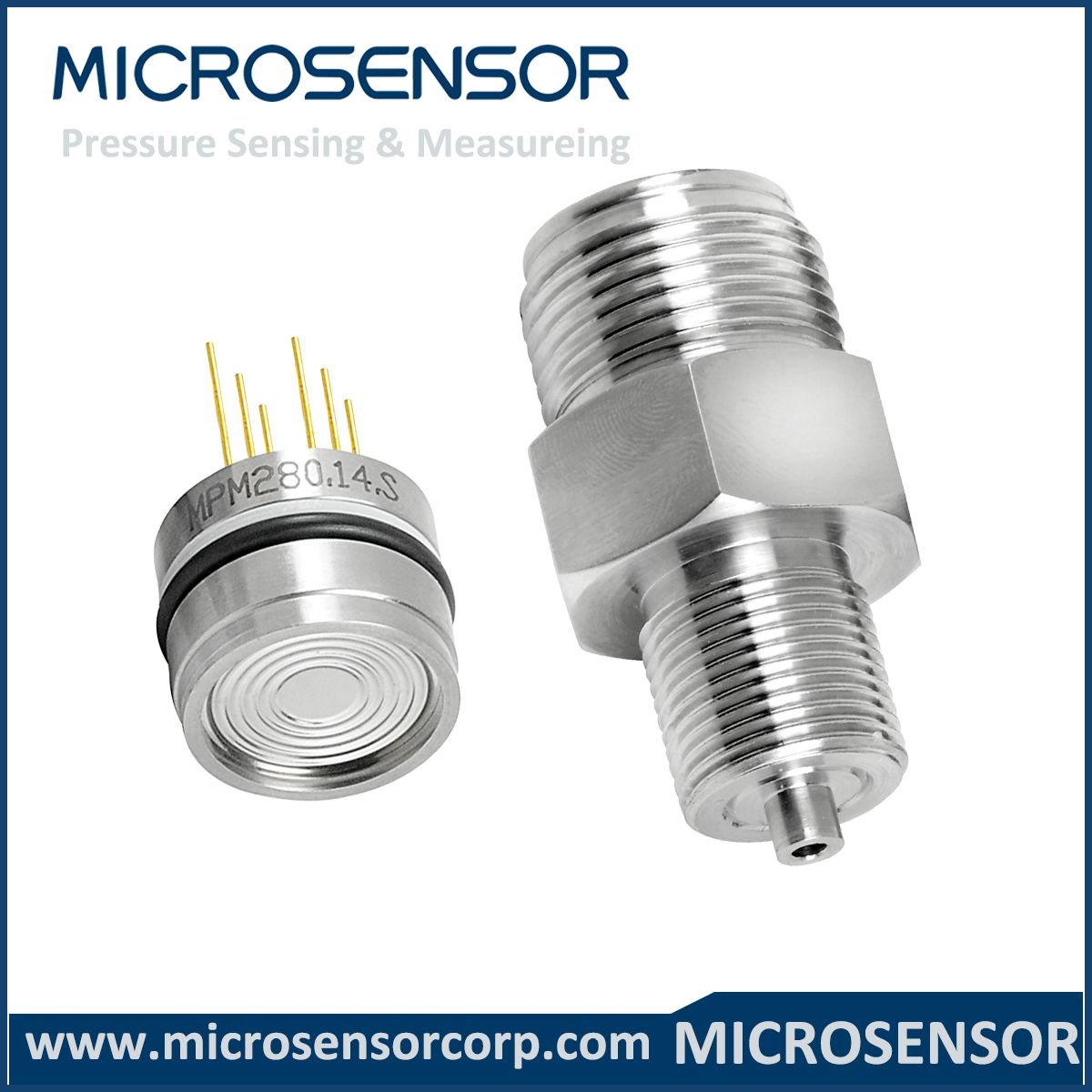

Anti-Corrosive Pressure Sensor MPM280Ti
Features·Pressure range 0~20kPa...100MPa;
·Gauge, absolute and sealed gauge;
·Constant current power supply;
·Isolated construction to measure various media
·Φ19mm OEM pressure element
·316L stainless steel material
·Tantalum diaphragm or titanium construction for option
·Different male thread connection optional
Application
·Industrial process control ·level measurement ·Gas, liquid pressure measurement
·Pressure meter ·Pressure calibrator ·Liquid pressure system and switch
·Refrigeration equipment and air conditioner ·Aviation and navigation inspection
Basic SpecificationItem* | Min. | Typ. | Max. | Units |
Linearity | | ±0.15 | ±0.25 | %FS,BFSL |
Repeatability | | ±0.05 | ±0.075 | %FS |
Hysteresis | | ±0.05 | ±0.075 | %FS |
Zero output | | ±1 | ±2 | mV DC |
FS output** | 70 | | | mV DC |
Zero thermal error | | ±0.75 | ±1.0 | %FS, @25ºC |
FS thermal error | | ±0.75 | ±1.0 | %FS, @25ºC |
Compensated temp. range | 0~50 | ºC |
Working temp. range | -40~125 | ºC |
Storage temp. range | -40~125 | ºC |
Stability | | ±0.2 | ±0.3 | %FS/year |
*Testing at basic condition,G: Gauge; A: Absolute; S: Sealed gauge ** 0BG, FS output ≥45mV 0AG, FS output ≥60mV 02A, 03A, 02GY, 03GY, FS output ≥45mV 07A, 08A, 07GY, 08GY, FS output ≥60mV |

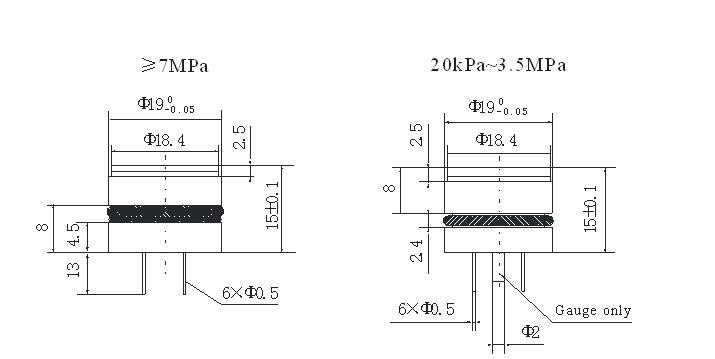

Outline Construction:
(Unit:mm)

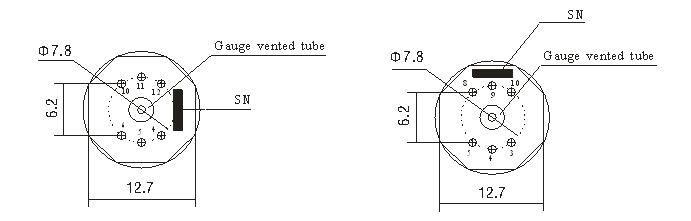

Electric Connection:
Order guide:MPM280(TH/TS/Ti)* | Piezoresistive OEM Pressure Sensor |
| | Range code | Pressure range | Ref. | Range code | Pressure range | Ref. |
0B | 0kPa~20kPa | G | 12 | 0MPa~2MPa | G.A |
0A | 0kPa~35kPa | G.A | 13 | 0MPa~3.5MPa | G.S.A |
02 | 0kPa~70kPa | G.A | 14 | 0MPa~7MPa | S.A |
03 | 0kPa~100kPa | G.A | 15 | 0MPa~10MPa | S.A |
07 | 0kPa~200kPa | G.A | 17 | 0MPa~20MPa | S.A |
08 | 0kPa~350kPa | G.A | 18 | 0MPa~35MPa | S.A |
09 | 0kPa~700kPa | G.A | 19 | 0MPa~70MPa | S.A |
10 | 0kPa~1000kPa | G.A | | | |
| | Code | Pressure type |
G | Gauge |
A | Absolute |
S | Sealed gauge |
| | Code | Pressure connection | Installation |
0 or null | O-ring |
H1 | M24×1 male (assembled, P≤2MPa) | C1~C11 are available for pressure connections for both assembled and welded type |
H2 | M27×2 male (assembled, P≤70MPa) |
H3 | M24×1 male (welded, P≤2MPa) |
H4 | M27×2 male (welded, P≤35MPa) |
C1 | M20×1.5 male, face type seal | Pressure connection options for assembled or welded type |
C2 | G1/4 male |
C3 | G1/2 male |
C4 | G1/4 female |
C5 | M20X1.5male waterline seal |
C6 | 1/4NPT male |
C7 | 1/4NPT female |
C8 | 1/2NPT male |
C9 | 1/2NPTfemale |
C10 | R1/4 male |
C11 | R1/2 male |

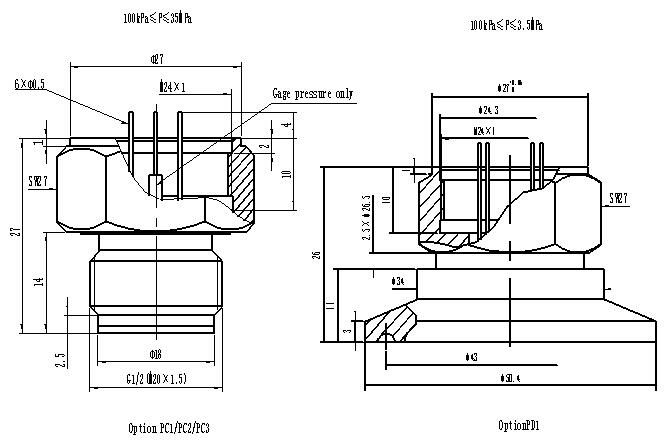

PC1 | Flush diaphragm M20×1.5 male, | Top: M24×1 female |
PC2 | Flush diaphragm R1/2 male, |
PC3 | Flush diaphragm G1/2 male, |
PD1 | DN25 clamp |
| | Code | Compensation |
L | Laser trimming |
M | Outer compensated resistor (providing resistor value) |
| | | | | | | Code | Electric connection |
1 | Kovar pin(default) |
2** | 100mm silicon rubber flexible wires |
| | Code | Special measurement |
Y | Gauge sensor to measure vacuum(0kPa~-100kPa) |
| |
MPM280 09 G 0 L 1 Y The whole spec |
