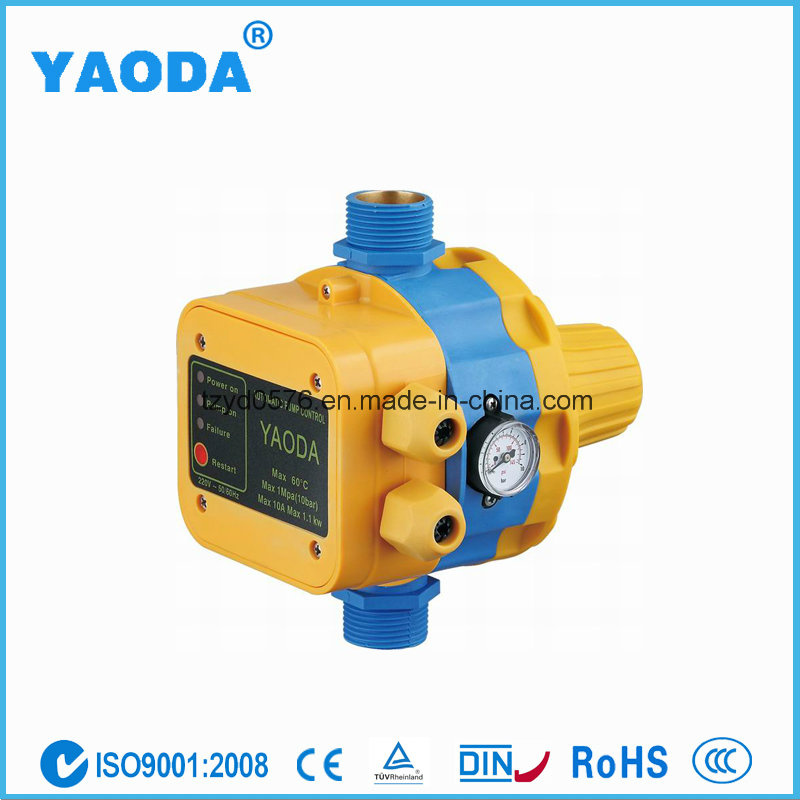

Automaitc Pressure Control for Water Pump (SKD-12C)

Name: Automaitc Pressure Control for Water Pump (SKD-12C)
Brand: all-electronics-online.com
SKU: 669081665
Availability: InStock
Rating: 4.5 (30 reviews)

Price:	US $ 13.2-14.3/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	600/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

TECHNICAL DATA:
1. Rated Voltage: 110V/230V
2. Frequency: 60Hz/50Hz
3. Max Current: 10(6)A
4. Starting Pressure Setting: 1.5bar/2.2bar
5. Jonit Screw: G1"
6. Max Working Pressure: 10bar
7. Protection Grade: IP65
8. Max Working Temp: 60 degree

Function:
1. Start and stop the pump automatically
2. Protect the pump from damage caused by dry-running
3. It is very convinent to change the water pump.
with cable HO7RNF3x1mm2 and European plug attached
Wiring requirement: Cable diameter 7.5-9mm
The length of the cable will be as your requirement.

Descriptions:
Rated Voltage	110V/230V
Max. Current	10(6)A
Frequency	60HZ/50HZ
Max. Power	1.1KW/2.2KW
Joint Screw	G1"
Starting Pressure	1.5bar/2.2bar
Max Working Pressure	10bar
Protection Grade	IP65
Max Operating Temperature	60 degree
Application	Self-Priming Pump/Jet Pump/Garden Pump/Clarified water Pump

Function:
1. Start and stop the pump automatically
2. Protect the pump from damage caused by dry-running

FAQ of Automatic pressure control:

1.Are you a manufacturer or a trading company?
A: We are a professional automatic pressure control manufacturer with over 20 years' experience.

2.What's your payment terms?
A: T/T, L/C is also acceptable.

3.What's your MOQ?
A: Trial order is OK.

4.What's your delivery time?
A: Finish the production within 30 days once we receive the advance.

5.What's your warranty for automatic pressure controller?
A:1 year warranty for pressure controller

6.Can we make the products with OEM?
A: Yes, of course. We can do oem for you.

7. Do you have any other pump accessories?
A: Yes, we are the manufacturer of pressure tank for water pump. Its capacity range is 1L-300L.

Prod Model:	SKD-12C
Markets:	North America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	220-240V; 110-115V
Starting Pressure:	1.5bar
Max Pressure:	10bar
Connector Size:	G1"
Type:	Electronic
Application:	Commercial
Explosion-proof Type:	Flameproof
Contact:	Normally Open
Brand:	Yaoda
