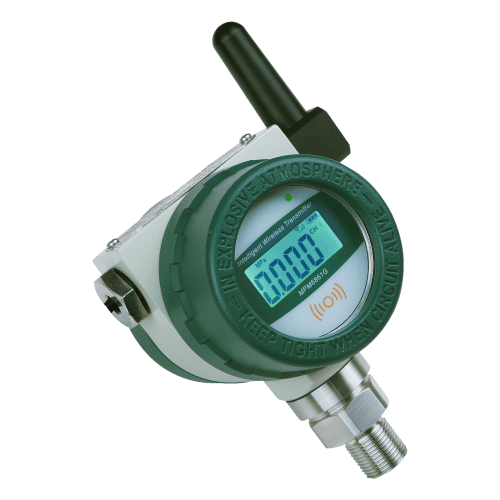

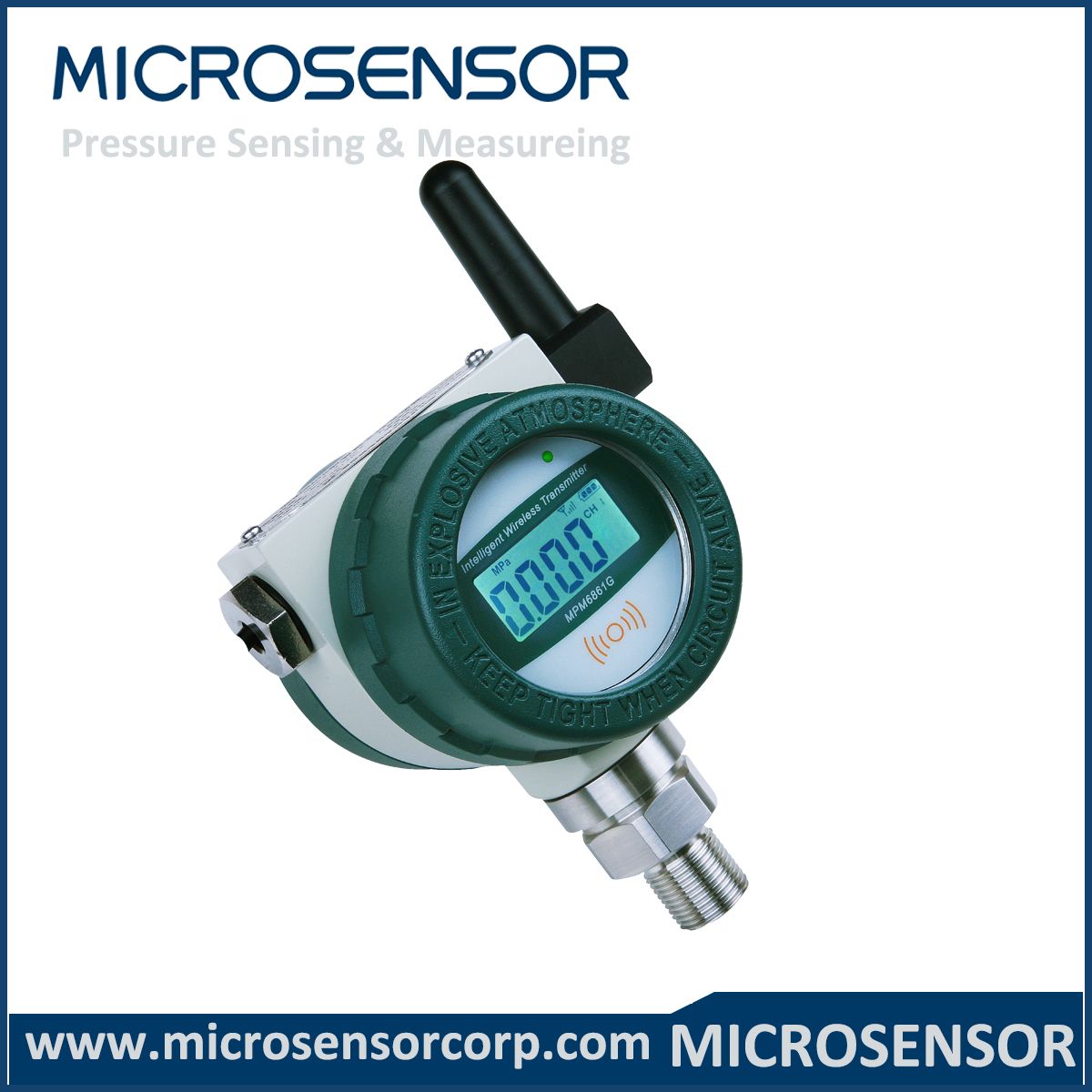

Battery GPRS LED Display Wireless Pressure Sensor MPM6861G
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
Battery GPRS LED Display Wireless Pressure Sensor MPM6861GFeatures
1. GPRS network
2. LCD display
3. Reverse power protection
4. Threshold upper/lower limit alarm function;
5. Automatic error correction, automatic reconnect while network is broken;
6. Web terminal data checking and instrument remote configuration, support data-inquiry by mobile phone;
7. Shock-proof, moisture-proof , adapt to the wild environment.
MPM6861G is an intelligent wireless pressure sensor with low power consumption and wireless communication function. It uses advanced industrial MCU as processing core, high quality pressure sensor as sensing element. And it combines with industrial wireless GPRS data modules to achieve wireless transmission of data to the cloud by China Mobile mature GPRS network. Transmitter reports data according to the set intervals; and users can check data through Web page, upload and download data and save the data to database to facilitate the following inquiry. It is more intuitive, accurate and efficient through PC or mobile terminals access internet to acquire and analyze data as well as forming with report and data curve. Based on extensive public coverage of GPRS network, it can be used for real-time monitoring the actual data in a large scale such as water pipe network pressure, high pool level, detecting environmental parameters, hydrological monitoring etc.
Specification
INPUT
Pressure Range: 0kPa~100kPa...10MPa
Power supply: Solar Power Supply/8~30VDC
Accuracy: ±0.5%FS
Pressure type: Gauge/ Absolute/Sealed Gauge
OUTPUT
Output signal: LCD display, GPRS wireless signal transmission
Long term stability: ±0.5%FS/year
Environment Conditions
Operation temperature: -20ºC~70ºC Storage temperature: -30ºC~80ºC
Relative humidity: 0%~95% Protection : IP67
Vibration: ≤3g/10Hz...150Hz(IEC 60068-2-6-2007) EMC: GB/T 17626.2/4-2006
OTHERS
Display: 6 digit 8 segment LCD Keyboard: 3 keys
Diaphragm: stainless steel 316L Electrical connection: 2 core cable (power supply)
Weight: ~1.6Kg

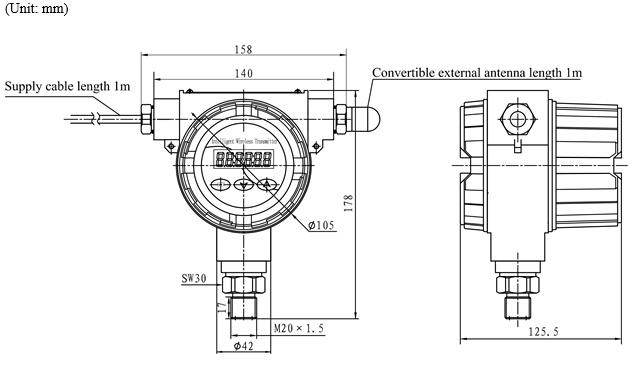

Outline Construction
(Unit: mm)
Electric Connection
Pressure sensor is powered by two-core cable; cable electrical definition is shown as below:| Wire No. | 1 | 2 |
| Wire color | Red | Black |
| Definition | +V | -V |
Order Guide| MPM6861G | Intelligent Wireless Pressure Sensor | |
| | | Range | Measure Range 0kPa~100kPa…10MPa | |
| [0~X]kPa/MPa | X Actual Range | |
| | | Code | Pressure Type | |
| G | Gauge | |
| A | Absolute | |
| S | Sealed Gauge | |
| | | | Code | Antenna Type | |
| A | Internal Antenna (GPRS signal well only) | |
| B | External Antenna | |
| | | Code | Pressure Port | |
| C5 | M20×1.5 male, waterline seal | |
| | Code | Others | |
| | C1 | With SIM card | |
| | C2 | Without SIM card | |
| | | | |
| MPM6861G [0~10]MPa A B C5 C1 whole spec. | |
Order Notes:
1. Please pay attention that the media shall be compatible with the contacted parts;
2. The basic range of absolute products minimum is 0.1MPa.
3. The power supply connection cable standard length is 1m.
4. When the product is used in thunder storm area, we suggest user to use protection device to protect the product and make sure well grounding;
5. For special requirement, please feel free to contact us.
| Prod Model: |
MPM6861G |
| Measuring Range: |
0kPa~100kPa...10MPa |
| Hart Communication: |
Zero & Span Adjustment |
| Display: |
Digital |
| Function: |
Local Indication Type |
| Accuracy: |
0.25 |
| Indicating Pressure Reference: |
General Pressure Gauge |
| Application: |
Industrial |
| Structure: |
Processing Pressure Measurement |
| Connection Type: |
Cable Exit |
| Protection: |
IP65 |
| Thread Type: |
M, G, R. NPT et.as you require |
