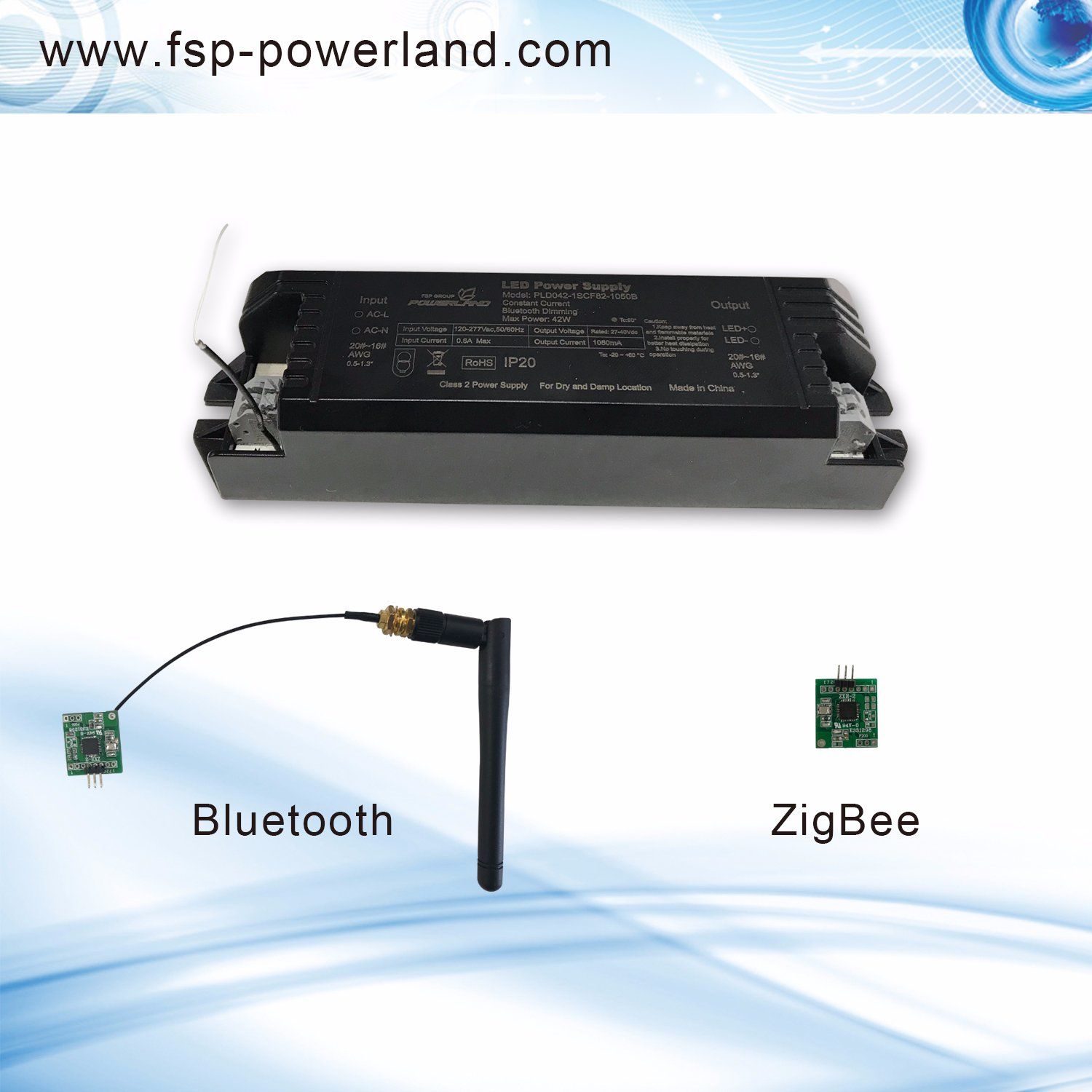

Bluetooth/ZigBee LED Drivers 42W Smart Series
Powerland's 42 Wireless Dimming and Programmable series offers LED drivers with wide-range dimmable, flicker-free output current and 108~305Vac universal input.
The output currents of this series are digital programmable through Bluetooth/ZigBee communication, and dimming, adjustable and wide-range dimmable output current.
Applications
Indoor LED lights
LED lights with flexible current settings
Downlights, high bay and low bay lights, spot lights, LED panelsFeaturesFlicker-free with < 5% current ripple> 50,000 hours lifetime at 75oC Tcase
> 5 years warranty at 75oC Tcase
Bluetooth/ZigBee programming and dimmingUniversal input voltage: 108~305Vac
Safety according to UL1310 & EN61347-2-13
UL Class 2 Output
EMC according to FCC Part 15 Class A
Lightning, OVP, SCP, OTP & Open Circuit Protectio
Electrical Specifications
Model
|
PLD042-1SCF82-XXXB
|
Output Voltage | 27-40V |
| Current Programmable
| Yes (Bluetooth/ZigBee Programming) |
Output Current Programmable Rang | 525~1050mA |
Dimming
| Bluetooth/ZigBee dimmin |
Dimming Range
| 5~100% |
Output Power | 42W |
Max. Current Ripple | ±5% |
Voltage Range | 108~305Vac |
Frequency Range | 47~63Hz |
Max. Input Current @ 230Vac | 0.5A |
Max. Input Power | 50W |
Power Factor | >0.95 @ 120Vac & 80~100% full load; >0.91 @ 277Vac & 80~100% full load |
Efficiency | 86% |
Max. Open Circuit Voltage | 59.5V |
THD |
<20% @ 120Vac/277Vac & 80~100% full load
|
| Protections |
OVP, OTP, OCP, SCP & Open Circuit Protection
|
Environmental Protection | UL Dry & Damp |
Working Temperature | -20~+50ºC |
Max. Case Temperature | 90ºC |
Surge Protection | 1kV |
Agency Approbations | UL1310 Class 2 & EN61347-2-13 |
Electromagnetic Compliance | Per Title 47 CFR Part 15 Class A |
Ansi Surge Type | 1.2/50μs Combination Wave (w/t 2Ω) |
Isolation | Primary to Secondary: 3750Vac / 10mAMax / 60seconds |
| Case & Terminal Type |
Plastic & Connector
|
Dimension | 130.7x40.8x28.5 mm (5.15x1.60x1.12inch) |
Mounting Length | 136.9mm (5.38inch) |
Overall Length | 148.8 mm (5.85 inch) |
Weight | 0.13 kg (0.28 lb) |
Life Time | >50,000 hours @ full load, 75ºC Tcase |
* Note: XXX stands for output current, e.g. 1050 stands for 1050mA. XXX in PLD042-1SCF82-XXXB=525~1050; XXX in PLD050-1SCF82-XXXB=625~1250.
* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.

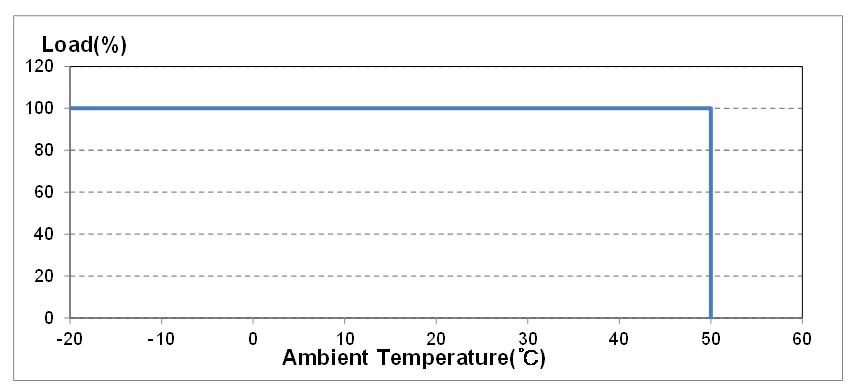

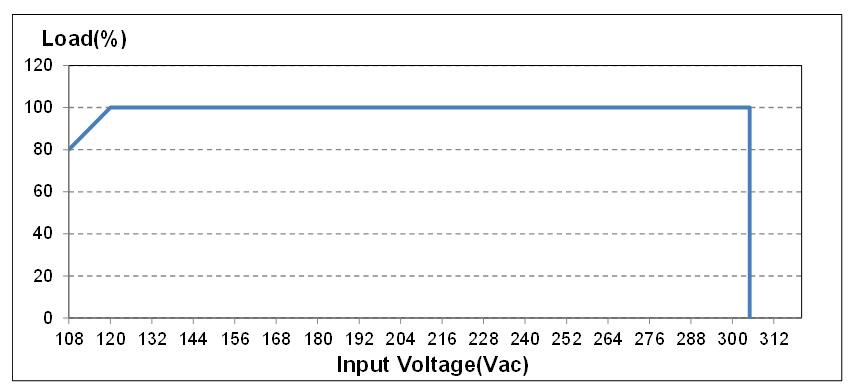

Derating Curve
Static Characteristics
Electrical Specifications

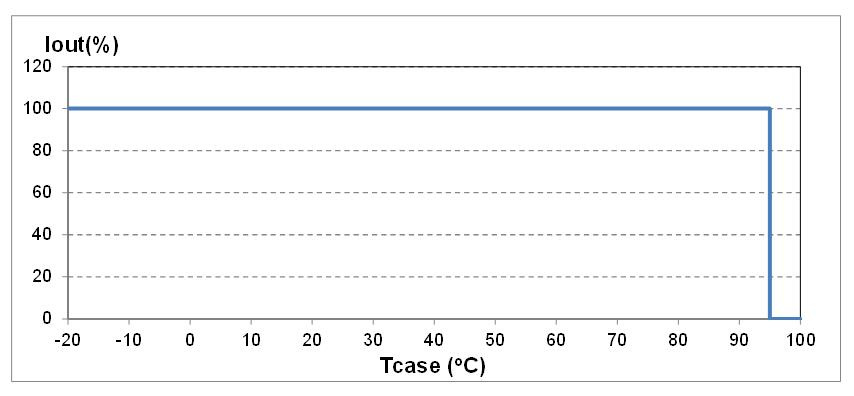

Output Current vs. Case Temperature (with ±5oC Tolerance)
Performance Characteristics

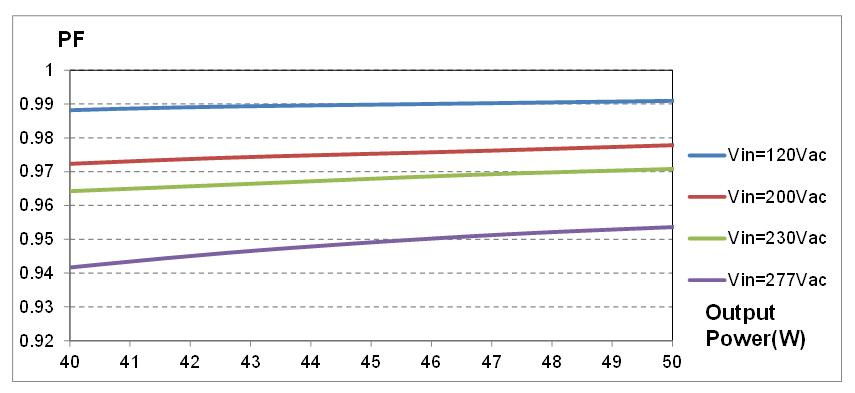

Power Factor vs. Output Power
Performance Characteristics

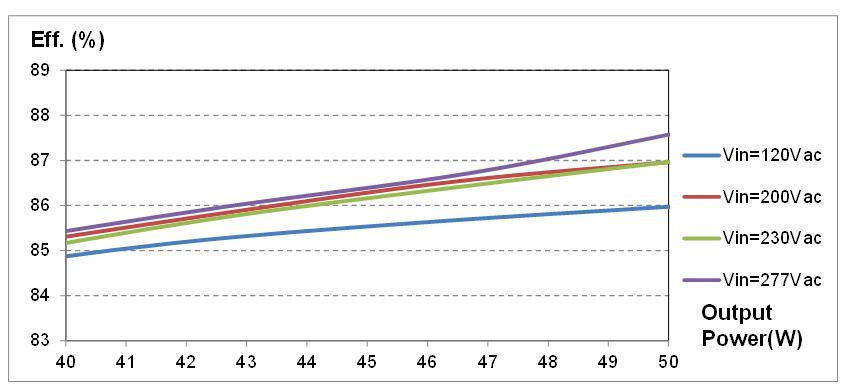

Efficiency vs. Output Power(@ 25oC)

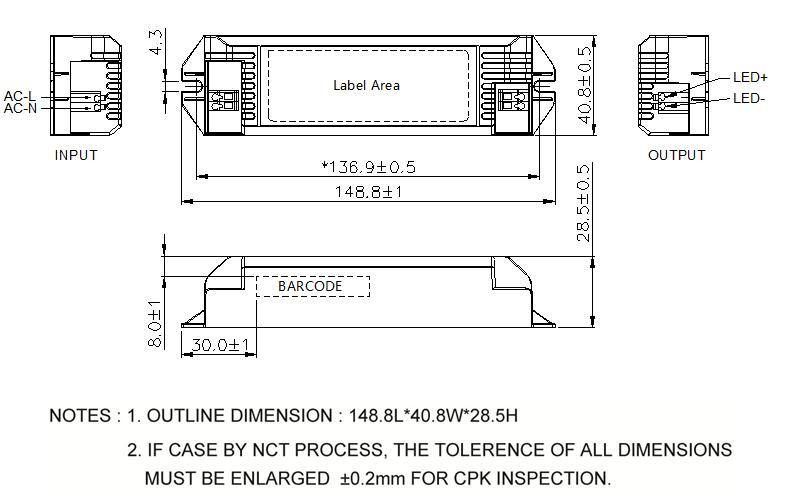

Mechanical Specification
