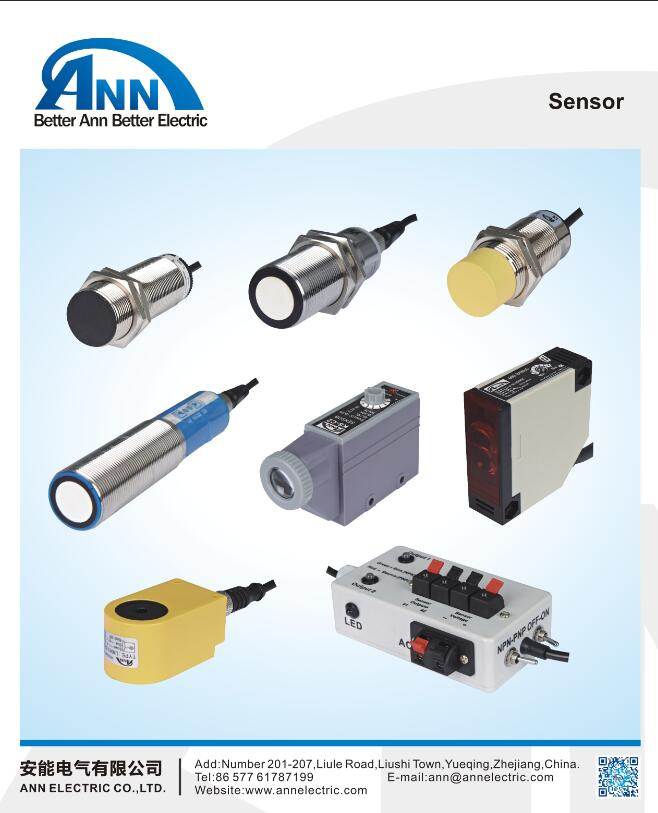

Capacitance Inductive Proximity Sensor Switch Lm480

Name: Capacitance Inductive Proximity Sensor Switch Lm480
Brand: all-electronics-online.com
SKU: 792778755
Availability: InStock
Rating: 4.6 (125 reviews)

Price:	US $ 15/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Product Description

Inductive proximity switch
Main features
1. Compact volume
2. High precision of repeated location
3. Diversified exterior structures
4. Good performance of anti-interference
5. Many output forms
6. High on-off frequency
7. Wide voltage range
8. Dust proof, vibration proof, water proof and oil proof
9. With short-circuit protection and inverted connecting protection
10. Long service life

Application
1. Various location detection of machinery process center
2. Arm location detection of robot
3. Inspection of the existing of milk inside the paper paxkage
4. Stopper detection of grinding machine
5. Bottle lid detection
6. Spacing detection

Switch type:
LM: Inductance type CM: Capacitance type SM: Hall type
AM: Safety explosion-proof type XM: HM: Reed type
Working voltage
30: 6-36V 310: 5-24VDC 320: 12-60VDC
20: 90-250VAC 210: 24-250VAC 220: 380VAC
40: 12-240VAC/24-240VAC 50: Special
Detection distance: 01: 1mm 05: 5mm 10: 10mm
Output form
N: NPN Three-wire DC NPN output
P: PNP Three-wire DC PNP output
L: Two-wire DC output
W: AC Three-wire output
J: Relay contact output
NP: NPN+PNP NPN+PNP double output
Output state
A: Normally open(NO)
B: Normally close(NC)
C: Normally open + Normally close (NO+NC)
MU: Mimic voltage
MI: Mimic current
Subsidiary functions
T: With aviation connector
Y: Water proof, oil proof
H: High temp resistance.

Non-flush	Detection distance			25mm
	DC 6~ 36 VDC	NPN	NO	LM480-3025NA
			NC	LM480-3025NB
			NO+NC	LM480-3025NC
		PNP	NO	LM480-3025PA
			NC	LM480-3025PB
			NO+NC	LM480-3025PC
		Two wire system	NO
			NC
	AC 90~ 250 VAC	SCR	NO	LM480-2025A
			NC	LM480-2025B
			NO+NC	LM480-2025C
		Relay output
		DC		200mA
		SCR/Relay		300mA
Output voltage dropDC/AC				DC<3V, AC<10V
Consumption current				DC<15mA, AC<10mA
Standard detected object				50×50×1(A3 )
Repeated precision				0.1
DC/AC Response frequency				100Hz/25Hz
Working environment temperature				-25 ~+75 degree
Insulation resistance				50MΩ
Shell material				Metal
Protection grade				IP67
Altemative model at home and abroad				SFE--

Prod Model:	LM480
Detect Distance:	50-800mm
Output Type:	1 Switch Output E5
Shell Material:	Metal
Working Environment Temperature:	-25c-75c

Our Company is located in " Electric city" -Liushi, China. Ann Electric is one of specialized manufacturers and exporters in low voltage electric & automation products.

Our product range specified as following:

Automation products range including: PLC, HMI, Rotary Encoder, AC Drives, Soft starter, Proximity Switch & Sensor, Counters, Temperature Controller, Stepper Motor & Drivers, Servo Motor & Drives.

Low voltage electrical products range including: Circuit Breaker, Contactors, Fuses, Relays, Push Button& Indicator Lamps, Switches, Power Supply, Distribution Box, Industrial Sockets& Plug, Terminals, Warning light, Electrical Accessories, Electric Power Fitting, Hardware & Tools, Construction Electrical, Lamps & Lighting, Meters & Instruments.

Quality is our life, all our products produce according to the international standard like IEC60898, IEC947-2. Most of our products have got ISO9001, CCC, CE certificates and some of our products have also passed CB, GS, KEMA, UL, VDE certificates. We have won high reputation for its good quality, accurate shipments and reasonable price.

We sincerely welcome customers to cooperate with us on basis of quality and mutual benefit. If you are interested in our 'products, please don't hesitate to contact with us, we will supply quick & satisfied reply.
