Hot New Capacitance Inductive Proximity Sensor Switch Lm6 Lm8 Lm12 Lm18
Price: |
US $ 4.6-5/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Product Description
Inductive proximity switch
Main features
1. Compact volume
2. High precision of repeated location
3. Diversified exterior structures
4. Good performance of anti-interference
5. Many output forms
6. High on-off frequency
7. Wide voltage range
8. Dust proof, vibration proof, water proof and oil proof
9. With short-circuit protection and inverted connecting protection
10. Long service life
Application
1. Various location detection of machinery process center
2. Arm location detection of robot
3. Inspection of the existing of milk inside the paper paxkage
4. Stopper detection of grinding machine
5. Bottle lid detection
6. Spacing detection
Switch type:
LM: Inductance type CM: Capacitance type SM: Hall type
AM: Safety explosion-proof type XM: HM: Reed type
Working voltage
30: 6-36V 310: 5-24VDC 320: 12-60VDC
20: 90-250VAC 210: 24-250VAC 220: 380VAC
40: 12-240VAC/24-240VAC 50: Special
Detection distance: 01: 1mm 05: 5mm 10: 10mm
Output form
N: NPN Three-wire DC NPN output
P: PNP Three-wire DC PNP output
L: Two-wire DC output
W: AC Three-wire output
J: Relay contact output
NP: NPN+PNP NPN+PNP double output
Output state
A: Normally open(NO)
B: Normally close(NC)
C: Normally open + Normally close (NO+NC)
MU: Mimic voltage
MI: Mimic current
Subsidiary functions
T: With aviation connector
Y: Water proof, oil proof
H: High temp resistance.

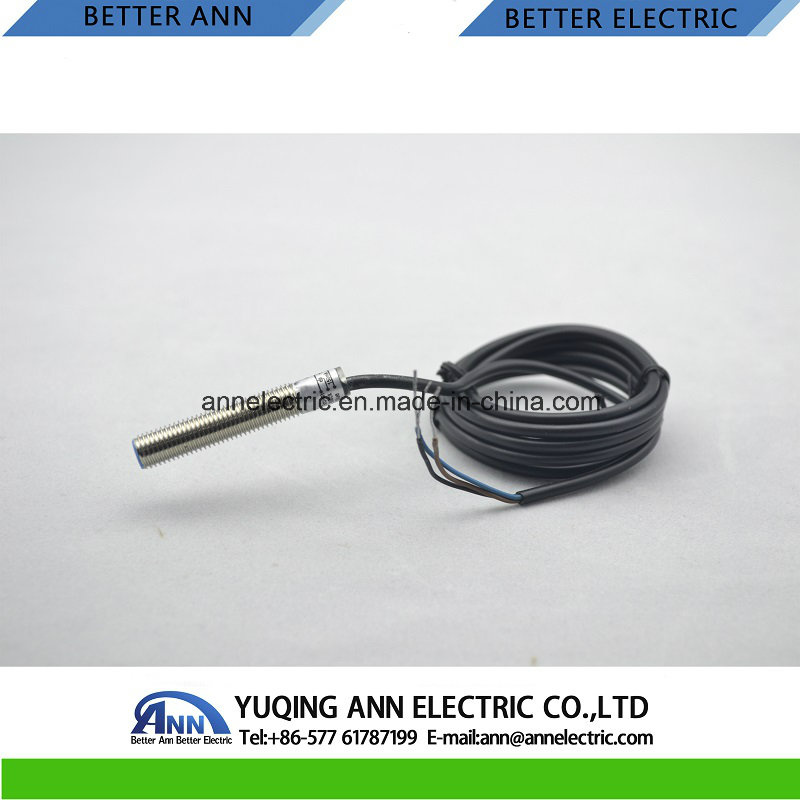

Proximity Sensor (LM8)
DETECTION DISTANCE 1mm |
F l u s h
| DC 10- 30 VDC
AC 90- 250 VAC
| NPN | NO | LM8-3001NAT |
NC | LM8-3001NBT |
NO+NC | |
PNP | NO | LM8-3001PAT |
NC | LM8-3001PBT |
NO+NC | |
two wire system
| NO | LM8-3001LAT |
NC | LM8-3001LBT |
SCR
Control- lable silicon | NO | |
NC | |
NO+NC | |
Relay output | |
| DETECTION DISTANCE 2mm |
F l u s h
| DC 10- 30 VDC
AC 90- 250 VAC
| NPN | NO | LM8-3002NAT |
NC | LM8-3001NBT |
NO+NC | |
PNP | NO | LM8-3002PAT |
NC | LM8-3002PBT |
NO+NC | |
two wire system | NO | LM8-3002LAT |
NC | LM8-3002LBT |
SCR
Control- lable silicon | NO | LM8-2002AT |
NC | |
NO+NC | |
Relay output | |
Controloutput
| DC | 150mA |
SCR/ Relay | |
Output voltagc dropDC/AC | DC (NPN PNP)Type 3V below,2 wire type:blow 3.9V,below AC 10V DC<3V,AC<10V |
Consumption current | DC(NPN PNP)Type at DC 12V 8mA,at 24V 15mA,AC below 10mADC<15mA,AC<10mA |
Standard detected object | 8X8X1(A3 iron) |
Repeated precision | 0.01 |
DC/AC | 500Hz/IOHz |
Working environment temperature | -25°C~+70°C |
Insulation resistance | 50MΩ |
Shell material | Metal |
Protection grade | IP67 |
Altemative model at home and abroad | E2E-XIR5-M1 |
Proximity Sensor (LM12)
INDUCTIVE PROXIMITY SWITCH |
Structural category | Cylinder type |
Outward appearance code | LM12 |
Appearance | Bitmap |
|
|
|
|
|
|
|
|
|
Dimension | Bitmap |
|
|
|
|
|
|
|
|
|
Flush | Detection distance | 2mm |
| NPN | NO | 3002NA |
DC | NC | 3002NB |
6 | NO+NC | 3002NC |
-- | PNP | NO | 3002PA |
36 | NC | 3002PB |
V | NO+NC | 3002PC |
| two wire system | NO | 3002LA |
| NC | 3002LB |
AC | SRC Control label silicon | NO | 2002A |
90 | NC | 2002B |
-- | NO+NC | |
250V | Relay output | |
Non-flush | Detection distance | 4mm |
| NPN | NO | 3004NA |
| NC | 3004NB |
DC | NO+NC | 3004NC |
6 | PNP | NO | 3004PA |
-- | NC | 3004PB |
36 | NO+NC | 3004PC |
V | two wire system | NO | 3004LA |
| NC | 3004LB |
AC | SRC Control label silicon | NO | 2004A |
90 | NC | 2004B |
--250 | NO+NC | |
V | Relay output | |
Control output | DC | 200mA |
SCR/Relay | 300mA |
Output voltage dropDC/AC | DC<2V DC(Two wire system) <3.9V AC<10V |
Consumption current | DC<15mA AC<10mA |
Standard detected object | 15×15×1(A3 iron) |
Repeated precision | 0.01 |
DC/AC Response frequency | 400Hz/25Hz |
Working environment temperature | -25c-75c |
Insulation resistance | ≥50MΩ |
Shell material | Metal |
Protection grade | IEC standard IP67 |
Altemative model at home and abroad | E2E-X5M |
Prod Model: |
LM6 LM8 LM12 LM18 |
Detect Distance: |
50-800mm |
Output Type: |
1 Switch Output E5 |
Shell Material: |
Metal |
Working Environment Temperature: |
-25c-75c |
Our Company is located in " Electric city" -Liushi, China. Ann Electric is one of specialized manufacturers and exporters in low voltage electric & automation products.
Our product range specified as following:

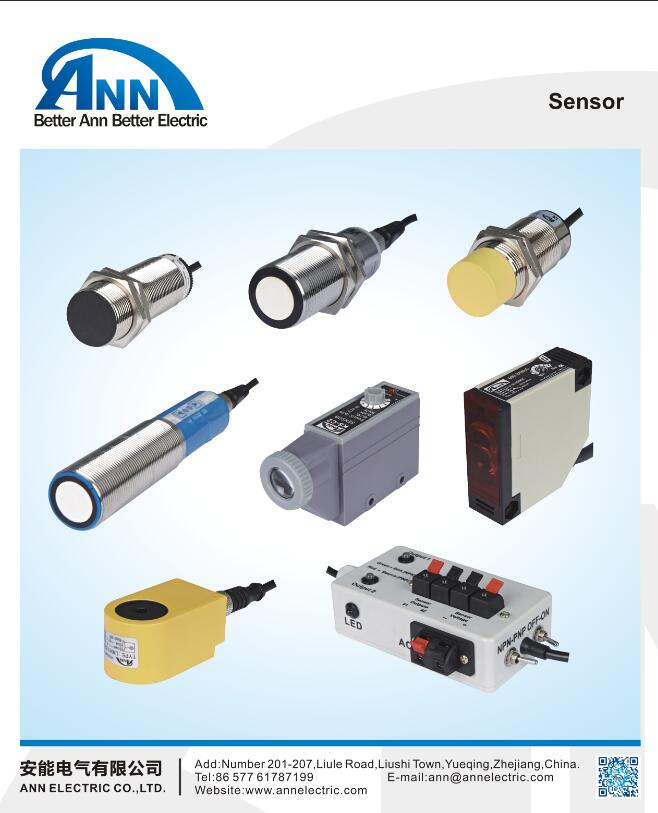

Automation products range including: PLC, HMI, Rotary Encoder, AC Drives, Soft starter, Proximity Switch & Sensor, Counters, Temperature Controller, Stepper Motor & Drivers, Servo Motor & Drives.
