Car Android Navigation for Mazda 2 Cx-3 Upgrade Touch Navigation Play Stor WiFi Bt Mirrorlink HD 1080P
| Price: |
Negotiable/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
Llt-Mzd-Ver6.5.1 |
| Device Type: |
Video Interface |
| Suitable Model: |
Mazda All Series |
| Main Function: |
GPS Navigation |
| Android Version: |
4.4 / 5.1 |
| Hardware: |
Quad Core 1.6 GHz 1 / 2 GB RAM 16GB ROM |
| Map: |
Google Map / Igo |
| Video Support: |
HD 1080P |
| WiFi Bluetooth: |
Yes |
| Model: |
Llt-Mzd-Ver6.5.1 |
| Brand: |
Lsailt |
Product Description
Car Android Navigation System Video Interface box For Mazda 2 CX-3
Upgrade Touch Navigation WIFI BT MirrorLink HD 1080P Google MAP, Play Store Voice
Android's features:- Android 5.1 & 4.4 system, Quad core 1.6GHz Cortex-A9 chip, quickest running speed in market.
- Compatible all Android apps include YouTube, Waze, Google map, iGO, Real-time & offline navigation etc, free download from Play store.
- Compatible to car origin rear view & front view, DVR, 360 panorama, TV box, TPMS optional.
- Connect via Wi-Fi Bluetooth USB.
- Could be switch to origin system with just one click on dashboard or steering wheel.
- Simple plug & play installation.
- Multi languages are supported, include English Pусский Français Español Português Arabic Persian Japanese Korean Hebrew etc
Professional festures & hardware- Multi screen interactive display is supported, LVDS out put.
- Accessories like rear view, 360 bird eye camera box, DVD, DVB-T TV box, DVR, mirror link, video play via USB.
- Support 2 RGB & LVDS video signal input.
- HD 1080P video play supprted.
- Voice control navigation from both factory MIC or ours.
- Display definition 480*800.
- RK3188T/PX3 main processor, Quad core Cortex-A9 structure, much quicker than Allwinner T3 A7 model.
- WiFi module: RTL8188 / RTL8723.
- BT module: RTL8723BU, support BT4.0, firmware support Bluetooth functions.
- Touchscreen interface: Support 4-wire resistive touch layer
Brand: Lsailt Model: LLT-MZD-VER6.5.1
Standard Configuration: Video Interface (Trajectory Reversing,Front View,Video Input)and Android Navigation Box;
Suitable car model:2014-2016 Mazda2,3,6,CX-3,CX-5,CX-9,MX-5(Car MZD Connect System)
Upgrading Function:Touch Android Navigation System,Trajectory Reversing,Front View,DVD,TV,360 Panoramic,DVR,TPMS etc.
Custom Properties| Way to Install | Original Car Screen Installation | Advantage | Retains All Features |
| RGB IN | Support | AV IN | AV1 or AV2 |
| DVR IN | Support | Rear View | Support |
| Front View | Support | 360 | Optional |
| CPU | 1.6GHZ | RAM | 1GB/2GB |
| Flash | 16GB | HD Video | 720P/1080P |
| Working voltage | 9-12V | OS | Android 4.4 5.1 |
| HVGA | 800X480 | MAP | GOOGLE MAP/IGO |
| Play Store | Support | Voice | Support |
| WIFI | Support | Specific Features | One-Key Reset |
| BT | Support | MirrorLink | Support |
Features of Android system
Master processor:RK3188T Quad-Core Processor(RK 3188T/RK 3188/PX3)basic frequency is 1.6G.
Memory capacity:1G DDRIII,2G DDRIII optional.
Flash memory:16G EMMC Flash, maximum 64G.
OS:Android 4.4 5.1
GPS receive:support AGPS function
GPS antenna:3V active antenna
GPS antenna protection:prevent the antenna short circuit
WiFi module:RTL8188/RTL8723.
BT module:RTL8723BU,support BT4.0, firmware support Bluetooth functions.
A2DP,Bluetooth telephone.
Support USB 3G dongle,WiFi can be as a hot spot output.
Support USB camera which support DVR.
Synchronizing signal:composite synchronizing signal. Separate sync signal.
Video output format:simulate RGB and CVBS composite synchronizing signal output , one of them optional.
Analog video output:Support the display position adjustment,and brightness contrast adjustment.
The resolution of the video output:800×480,1024X600,Maximum 1920X1080,Support any resolution.
Audio output:Left and right channel stereo output with audio valid indication signal.
Sound Control output:IO output or UART output.
Single track MIC input:support voice navigation, support SPDIF output.
Touchscreen interface:Support 4-wire resistive touch (support two point touch function), support serial touch, two ways to touch without modifying the hardware. Change software will be ok.
Memory card types:support maximum 64 gb TF/SD card, support read U disk, mobile hard disk storage.
USB port :USB OTG 2.0 .
Supported map software:APK install automatically or installation package .
Voltage range: 7 ~ 16v (optional 9 ~ 28V), with undervoltage shutdown (7V protection shutdown).
ACC control: ACC support delay shutdown, and SLEEP combination can be set off at any time.

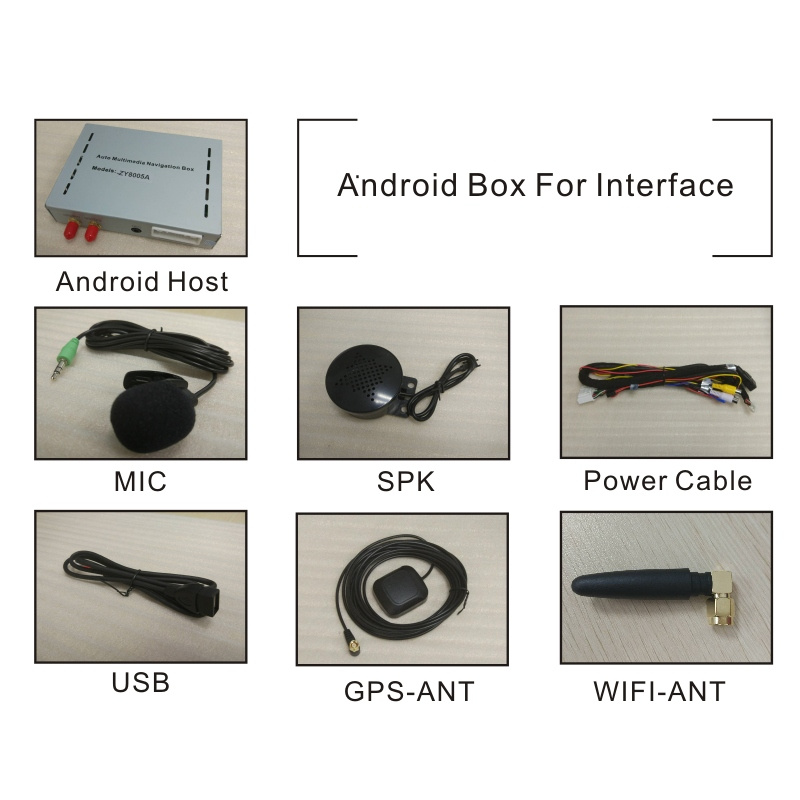

| Product Accessories |
| Interface box | 1(standard configuration) |
| Android box | 1(standard configuration) |
| LVDS IN | 1(standard configuration) |
| LVDS OUT | 1(standard configuration) |
| AV IN/OUT | 1(standard configuration) |
| POWER Line | 2(standard configuration) |
| GPS-ANT | 1(standard configuration) |
| Microphone | 1(standard configuration) |
| SPK | 1(standard configuration) |
| Map card | 1(standard configuration) |
| WIFI ANT | 1(standard configuration) |
| Specification | 1(standard configuration) |
| Warranty card | 1(standard configuration) |
Quality warranty policy:3 month free replacement and 1 year free maintenance.Deliver 1 or 2 days after payment received.Customer service will contact with you by whatsapp, email, skype to do all necessary works.
Shenzhen Xin Song Xia Automotive Electronics Co., Ltd established in 2009. The
Company is located in the advanced southern metropolis --- Bao'an District, Shenzhen city. It covers 60 staffs, including 10 R&D persons. It has 5 production lines and 1 production line for old product.
Company attaches great importance to research and develop new products. We have launched many new solutions for car models such as Mercedes-Benz, BMW, Audi, Honda, GM), etc. And with the ability of producing 50000 sets of original screen entertainment production per year.

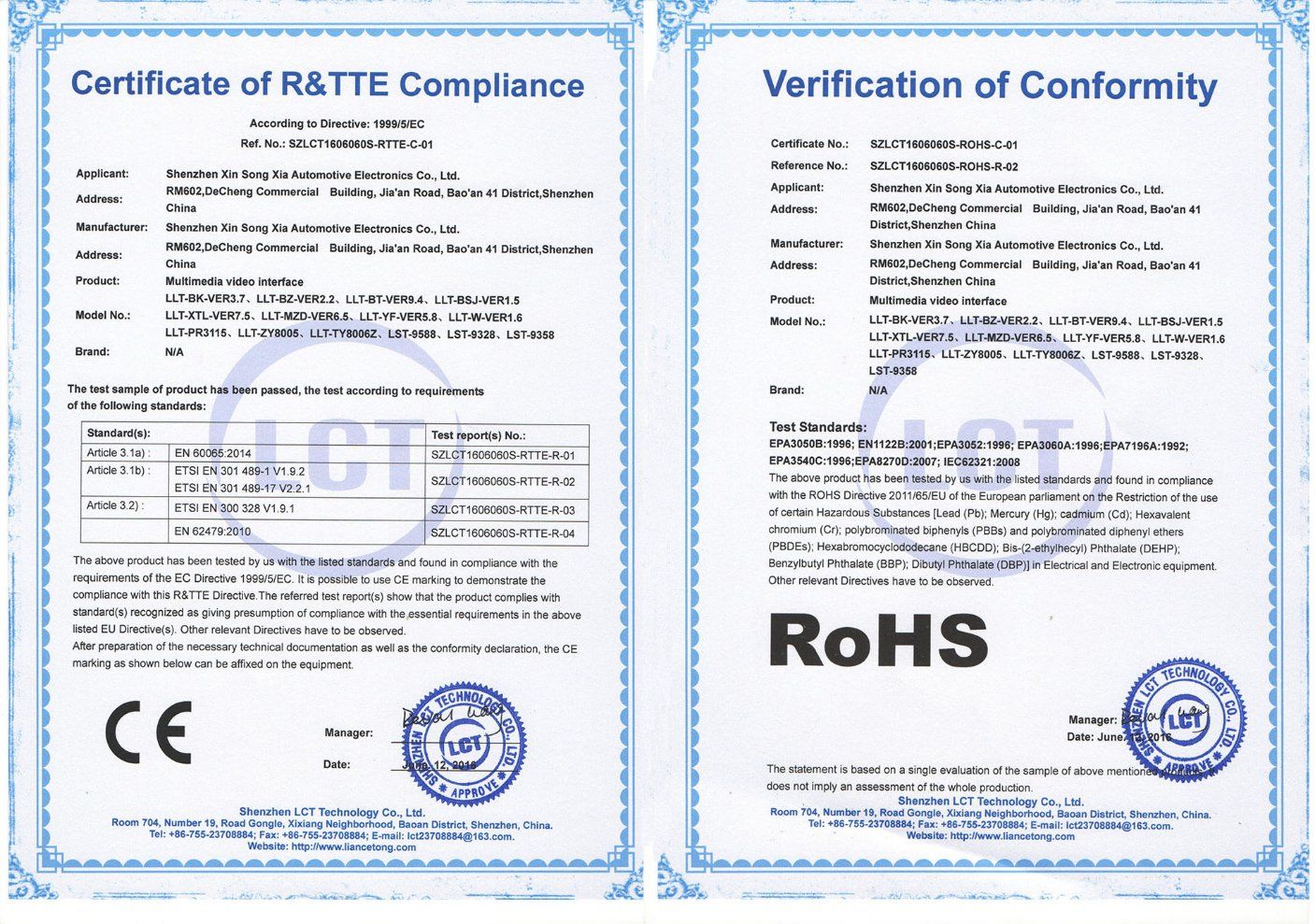

We regard quality as life. The company equipped with many test equipment at the world's advanced level such as experiment box, vibration tester, high and low temperature boxes, ESD static tester, power supply fluctuation test instrument, Sound and video automatic detector. And we have made a strict quality inspect system and process. Operating comply with international quality system certification such as ISO9001: 2000, ISO/TS16949: 2009 etc. Strictly.
