Cbb60 Metallized Film Capacitor
| Price: |
US $ 1.2/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
CBB60 description:Those capacitor takes heavy edge metallized Al/Zn as electrodes and dielectrics.The capacitor components are sealed with flame-retardant epoxy resin .CBB60 has cylindrical outline with high moisture resistance and stability.Features:
Very small dissipation factor, small internal temperature rise.
High insolation resistance.
Good capacitance stability.
Excellent self-healing property.
Anti-shock current, large overload capacity.
Small volume, light weight.

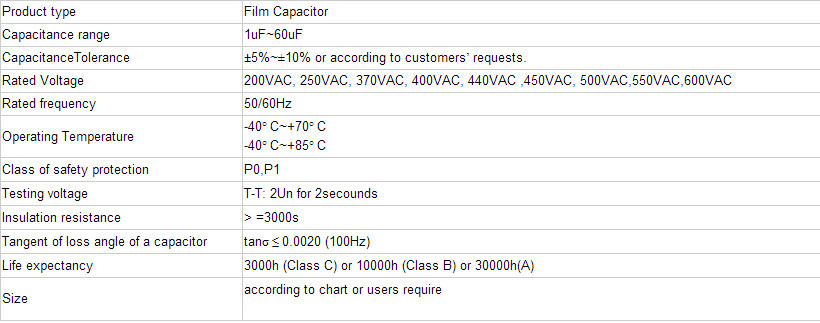

CBB60 capacitor technical data:
CBB60 application:
The product is applicable to air conditioners, washing machines, refrigerators, water pumps, Constant voltage transformers, Generators, electrical tools, and fractional horsepower motors for the purpose of altering motor phases and producing torques. It's also applicable to the voltage regulator components of UPS system.

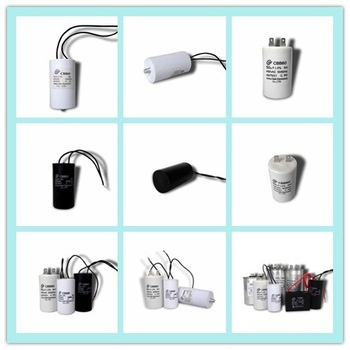

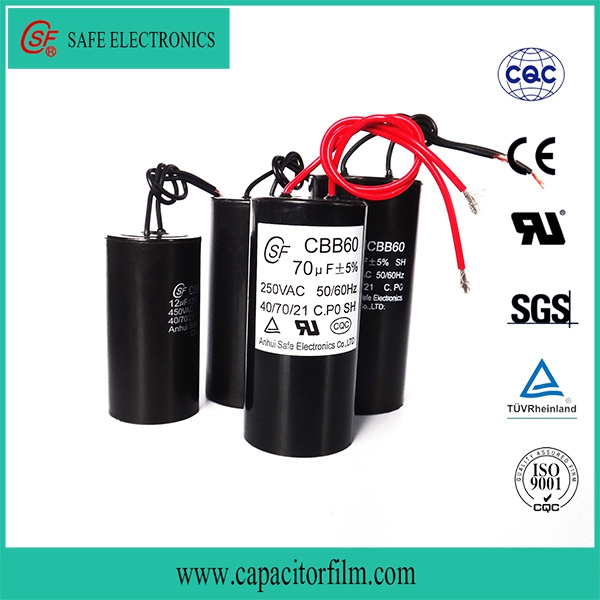

CBB60 Product show:

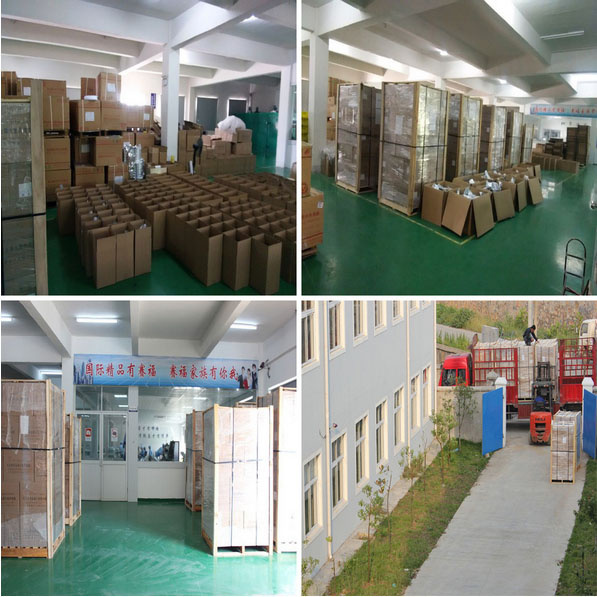

CBB60 product package:

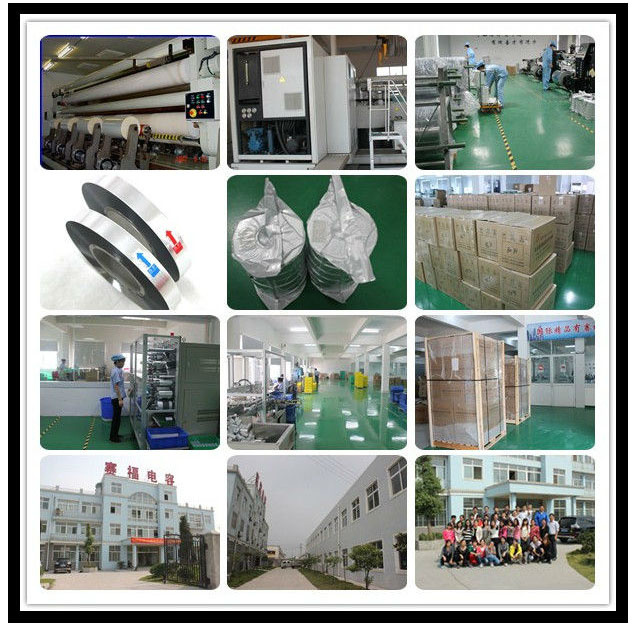

Our factory:

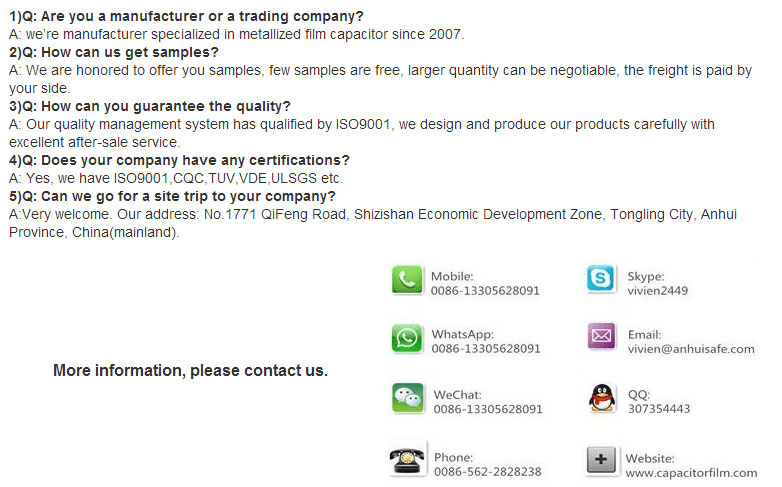

FAQ:
Certification:
More information you can visite our website: www.capacitorfilm.com or www.anhuisafe.com
| Prod Model: |
cbb60 |
| AC Capacitor Capacitance Tolerance: |
+/-5% |
| AC Capacitor Security Level: |
P0/P2 |
| AC Capacitor Standard: |
IEC60252-1:2001 |
| Operating Life: |
10000h (Class B), 3000h (Class C) 30000h(Class a) |
| Operating Frequency: |
50Hz/60Hz |
| AC Capacitor Filling: |
Epoxy Resin |
| AC Capacitor Can: |
Plastic Can |
| AC Capacitor Materials: |
Metallized Film |
| AC Capacitor Application: |
AC Motor, Water Pump;Lighting, Condenser, |
| Manufacturer: |
Anhui Safe Electronics Co., Ltd. |
| Type: |
Polypropylene Capacitor |
| Application: |
Water Pump |
| Package Type: |
Through Hole |
| Capacitance: |
1-60UF |
| Manufacturing Material: |
Polypropylene Film |
| Electrolyte: |
V |
| Usage: |
Water Pump |
Anhui Safe Electronics Co., Ltd. is a member of Green International Group. We mainly deal with AC motor capacitors, DC link capacitors, BOPP film (polypropylene film), MPP film (metalized film), inkjet PVC ID cards, polyester heat transfer film, PET film and other related products.
Our company has arranged the production of AC Motor Capacitors since 1999. Since the foundation of our company, the high-end slitters, the large-scale high-velocity winding machines, metal-spraying machines, automatic lines, automatic test lines and other advanced lines have been imported successively from Japan, Italy and Switzerland.
The production lines are state-of-the-art with internationally first-class quality. The annual output of all types of AC Motor Capacitors is 18 million pieces. We take the lead in this industry in China. There is a standard capacitor lab and calibration rooms for weight-and-measure gauges and test instruments in our company. We have got ISO9000 Quality System Certification and are endowed with considerable strong capability of technological development and quality control.
With one decade of experience accumulation and constant renovation, our company makes three key essential technological breakthroughs in the aspects of safety, endurance and temperature resistance. The products have all kinds of quality approvals to enter international markets such as CQC, UL, cUL, TUV and VDE. The products are suitable in diversified kinds of domestic and overseas prestigious-branded air-conditioners, refrigerators, compressors, washers, illuminators and other industries.
Our company is located in Tongling city-- ecological city of China. Our company adjoins to Shanghai, Nanjing and Ningbo and is close to traveling scenic spots of famous Huangshan Mountain and Jiuhuashan Mountain.
"good faith, serving the whole world" is our principle.
