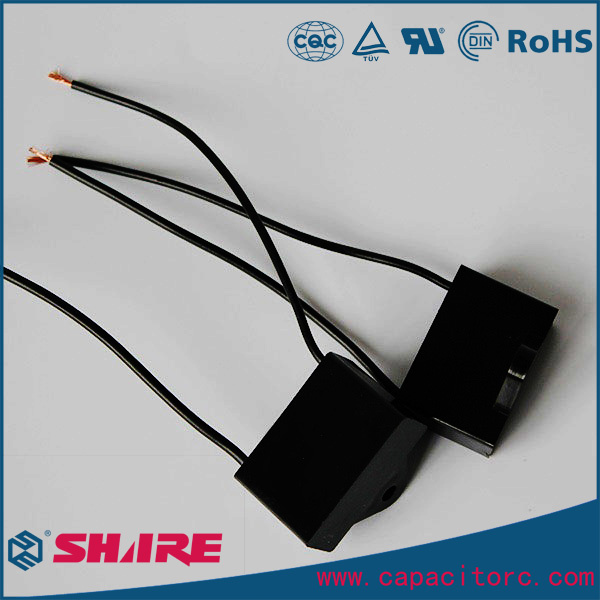

Cbb61 Metallized Polypropylene Film AC Box Type Capacitor

Cbb61 Metallized Polypropylene Film AC Box Type Capacitor
Price: US $ 0.1-3/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: CBB61
Type: Polypropylene Capacitor
Application: Fan
Package Type: Surface Mount
Capacitance: 0.1UF-40UF

Product Description

Cbb61 Metallized Polypropylene Film AC Box Type Capacitor

CBB61 Capacitor Introduction:

The CBB61 Capacitors are made of electrical class polypropylene film, zinc-aluminum metallized electrode, high-quality engineering pastic box, and enveloped with epoxy resin, welded with PVC electric wire. They have the characteristics of high universality and flexible assembly.

CBB61 Capacitor Technical Data:

1Implemented standardGB/T3667  UL810   EN60252
2Ambient Temperature-40~+105ºC
3Rated Voltage110~600VAC
4Capacitance tolerance0.1uF~80uF
5Test VoltageT-T:1.75Un t:2s T-C:2000VAC  t:10s
6Capacitance ToleranceJ (±5%),K (±10%)
7Dissipation FactorTg δ≤0.004 (50Hz,60 Hz 20ºC)
8Class of safety protectionCBB61:P0 class;CBB61-P2:P2class
9Safety approvalsUL,VDE,CQC,TUV
