Specification

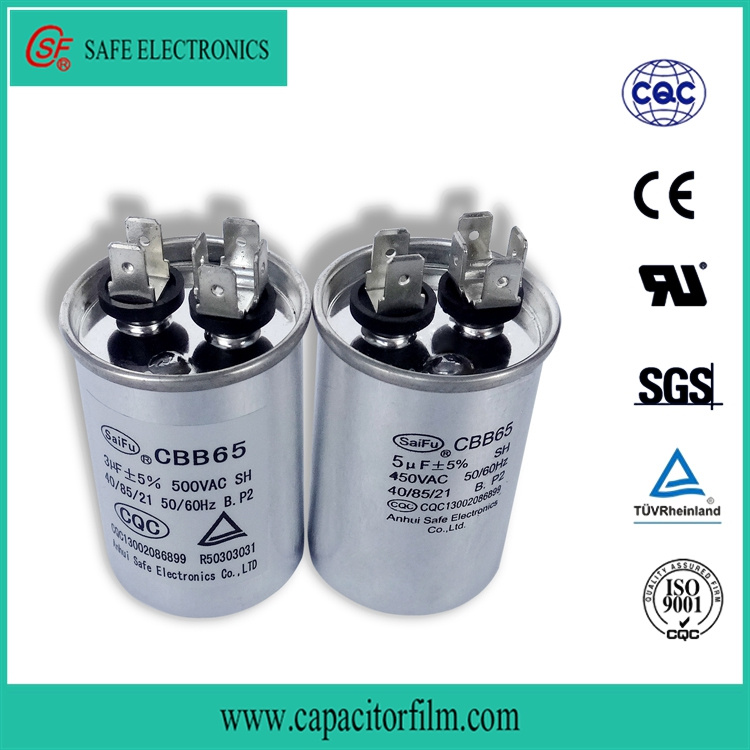

The product is equipped inside with reliable explosion-proof equipment and is highly safe. With its good self-healing characteristic and long life-span, it is widely used for air-conditioners, refrigerators, generators, compressor, etc
| Product type | Film Capacitor |
| Capacitance range | 3uF~120uF |
| CapacitanceTolerance | ±5%~±10% or according to customers' requests. |
| Rated Voltage | 200VAC, 250VAC, 370VAC, 400VAC, 440VAC ,450VAC, 500VAC,550VAC,600VAC ,630VAC ,660VAC |
| Rated frequency | 50/60Hz |
| Operating Temperature | -40° C~+70° C
-40° C~+85° C |
| Class of safety protection | P1,P2 |
| Testing voltage | T-T: 2.0Un/60S |
| Insulation resistance | > =3000s |
| Tangent of loss angle of a capacitor | tanσ ≤ 0.0020 (100Hz) |
| Life expectancy | 3000h (Class C) or 10000h (Class B) or 30000h(A) |
| Size | according to chart or users require
|
Note: other specifications and size out of the table are negotiable.
Features
Widely applied to starting and running of AC single-phase motors at 50Hz/60Hz
Frequency power.
2.Self-healing property.
3.High stability and reliability.
4.Safer with anti-explosion design.
5.Round capacitor, can be provided oval capacitor.
6.Single capacitor, can be provided doube capacitor.
