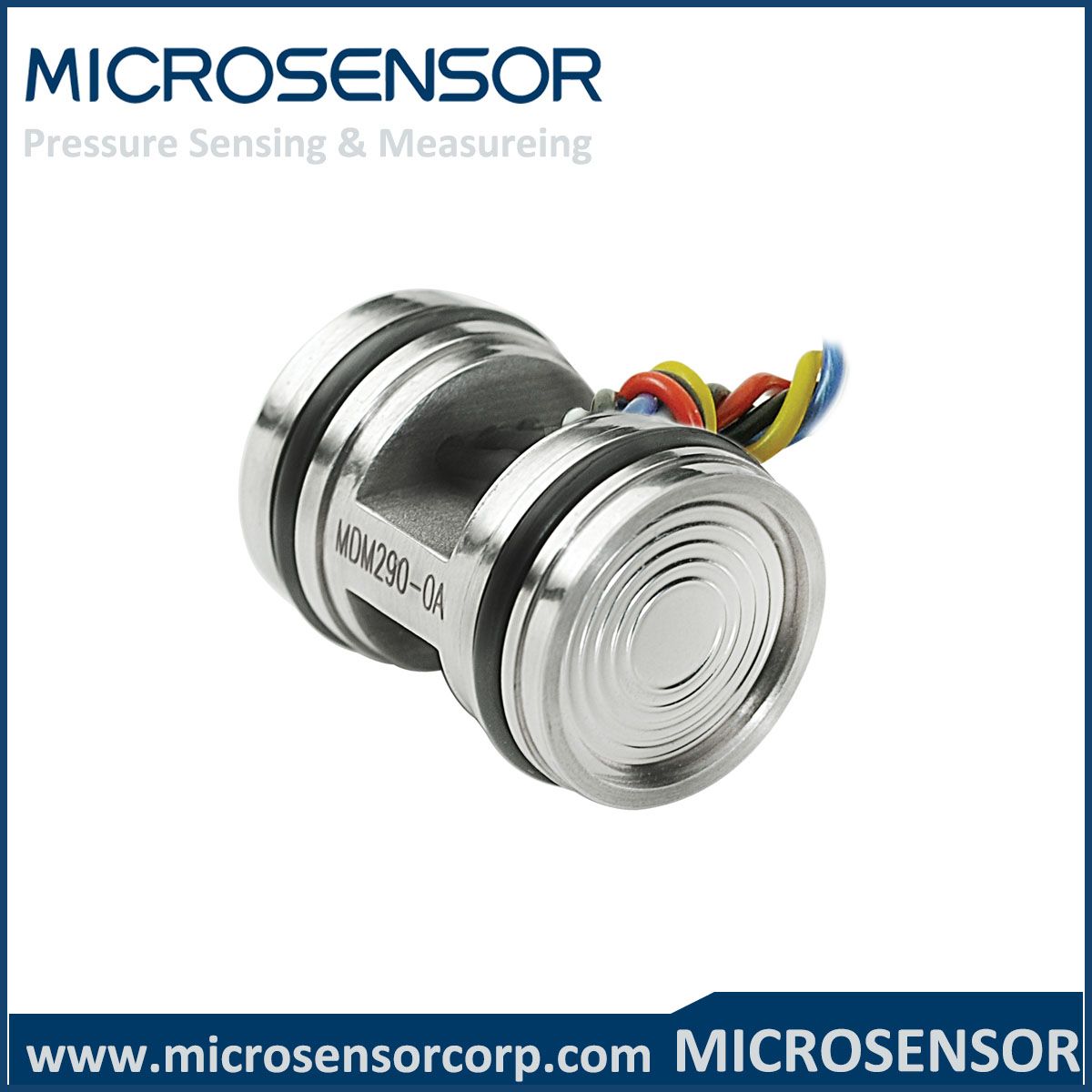

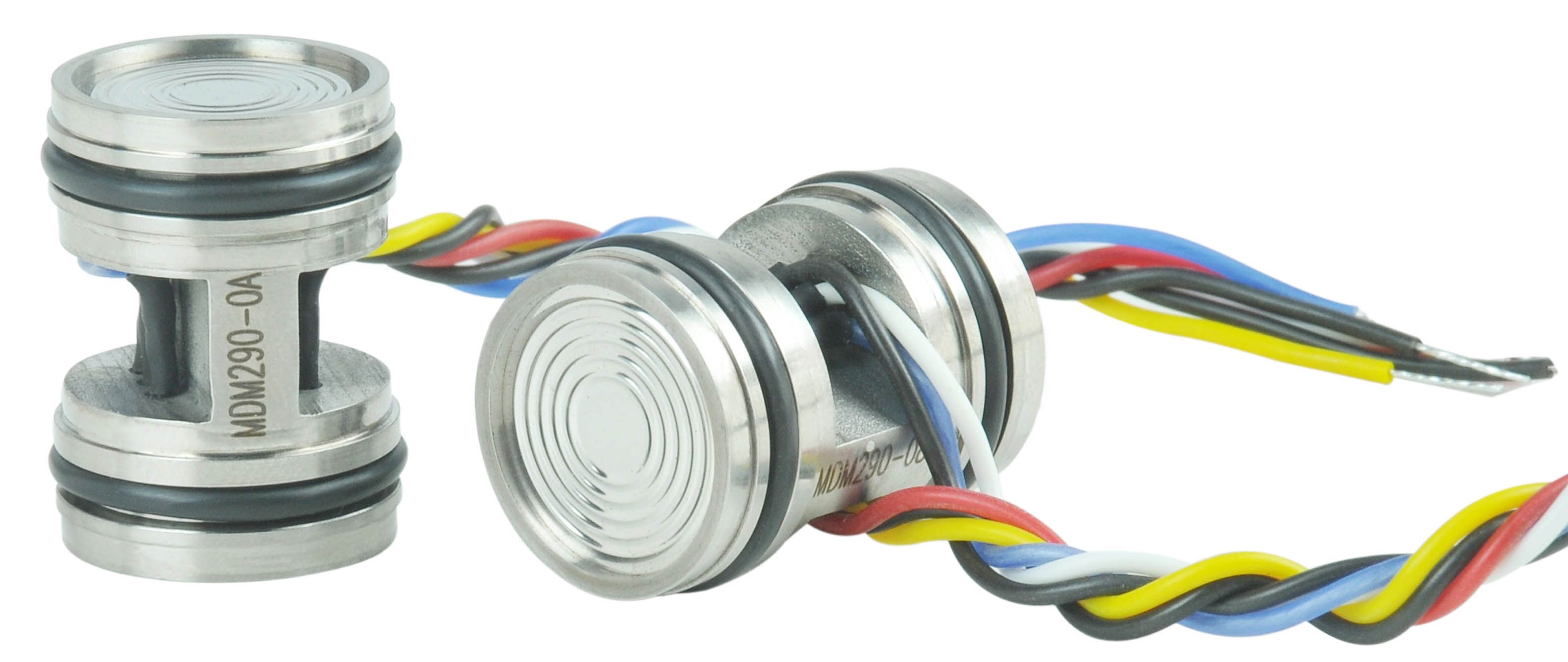

CE Approved Piezoresistive Differential Pressure Sensor (MDM290)
Features:
·Pressure range 0~35kPa…3.5MPa
·Constant current power supply
·Isolated construction, possible to various media
·OEM differential pressure sensor
·316L stainless steel
·High static pressure 20MPa
Application:
·Industrial process control
·Differential pressure measure
·Gas, liquid pressure measure
·Pressure checking meter
·Pressure calibrator
·Ventura and eddy-current flow meter
Description
MDM290 piezoresistive differential pressure sensor is OEM differential pressure sensor with stainless steel isolated diaphragm. It has integrated construction, high static pressure, high stablity and good reliablity. The high and low pressure sides are protected by isolated diaphragm.
Electric Performance
·Power supply: ≤2.0mADC, ≤10V DC
·Electric connection: 100mm silicon rubber flexible wires
·Common mode voltage input: 50% of input (typ.)
·Input impedance: 3kΩ~8kΩ
·Output impedance: 3.5kΩ~6kΩ
·Response (10%~90%): <1ms
·Insulation resistor: 100MΩ, 100VDC
·Overpressure: to see Order Guide
·Max. static pressure: 20MPa
·Zero drift/static pressure: ≤0.5mV/MPa
Specifications
| Specification* | Min. | Typ. | Max. | Units |
| Non-Linearity | | ±0.15 | ±0.25 | %FS,BFSL |
| Repeatability | | ±0.05 | ±0.075 | %FS |
| Hysteresis | | ±0.05 | ±0.075 | %FS |
| Zero output | | | ±3 | mVDC |
| FS output | 60 | | | mVDC |
| Zero thermal error | | ±1.0 | ±1.2 | %FS, @25ºC |
| Span thermal error | | ±1.0 | ±1.2 | %FS, @25ºC |
| Compensated temp. range | 0~50 | ºC |
| Working temp. range | -40~125 | ºC |
| Storage temp. range | -40~125 | ºC |
| Long-term stability | | ±0.3 | ±0.5 | %FS/year |
| *testing at basic condition |
Outline Construction
Construction Specification
·Diaphragm material: stainless steel 316L
·Housing: stainless steel 316L
·Pin: silicon rubber flexible wire
·O-ring: Viton
·Net weight: ~36g
Order Guide:
MDM290 | Piezoresistive OEM Differential Pressure Sensor |
| | Range code | Pressure range | Positive overpressure | Negative overpressure |
0A | 0kPa~35kPa | 70kPa | 35kPa |
02 | 0kPa~70kPa | 150kPa | 70kPa |
03 | 0kPa~100kPa | 200kPa | 100kPa |
07 | 0kPa~200kPa | 400kPa | 200kPa |
08 | 0kPa~350kPa | 700kPa | 350kPa |
09 | 0kPa~700kPa | 1400kPa | 700kPa |
10 | 0kPa~1000kPa | 2.0MPa | 1000kPa |
12 | 0MPa~2MPa | 4.0MPa | 1000kPa |
13 | 0MPa~3.5MPa | 7.0MPa | 1000kPa |
| | Code | Compensation |
M | Outer compensated resistor (providing resistor value) |
| | Code | Electric connection |
2 | 100mm silicon rubber flexible wires |
| |
MDM290 12 M 2 the whole spec |
