Ce RoHS Surge Protection Control Streetlight Photo Control

Name: Ce RoHS Surge Protection Control Streetlight Photo Control
Brand: all-electronics-online.com
SKU: 816923575
Availability: InStock
Rating: 4.6 (44 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Basic Specification:

Ambient Temperature	-40ºC- +80ºC
Rated Voltage	110-277VAC
Related Humidity	96%
Power consumption	15VA Max
Rated Current	JL-224BK-1
Type	Socket with Switch
Current Type	Inverter
Grounding	Non-Grounding
Frequency	50HZ-60HZ
Voltage	105-305V
Application	Commercial / Industrial

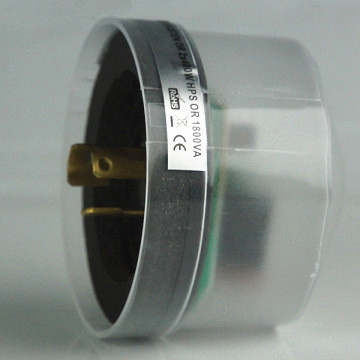

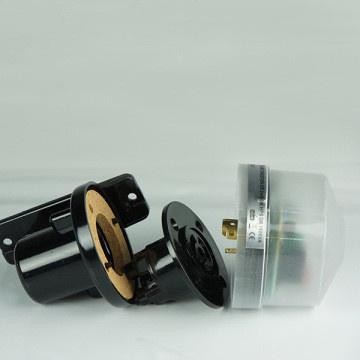

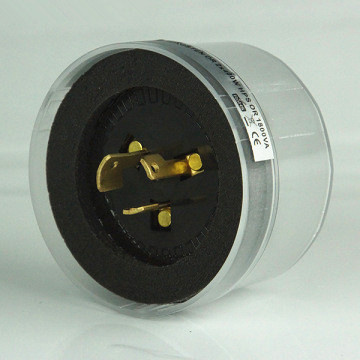

Product Pictures:

-Thermal/Semi-electronic/electronic
-BS 5972:1980 Omni-directional
-Easy-to-install Omni-direction meeting BS 5972
-Easy-to-maintain Twist-lock meeting ANSI C136.10
-Thermal switch providing 30-60s Time-delay (JL-212)
-PCB controlled advanced stable thermal switch (JL-213)

-Polycarbonate Enclosure in Opal or Frosted Clear
-CdS sensor and thermal switch (JL-212)
-Photodiode and DC relay switching (JL-214/224)

On-Off Level:10~20Lx On(Dusk);30~60Lx Off(Dawn)
Ambient Temp:-40ºC- +80ºC
Related Humidity:96%
Power consumption:15VA Max.
Electrical Life:5000 cycles

Model No.	Rated Voltage	Applicable Voltage	Rated Loadings	Certificates
JL-212B	220-240VAC	198-268VAC	1000W Tungsten 1800VA Ballast
JL-213B	220-240VAC	200-260VAC
JL-214C	110-277VAC	105-305VAC
JL-224C	110-277VAC	105-305VAC

Insatallation:

Prod Model:	224

Based on the 22 years experience in the lighting field, Royal(H. K) International Co., Ltd...Has been acting as a Lighting products manufacturer and exporter and had been proudly designated bysome world famous companies to produce lights under their brand name.

Our products vary from domestic and commercial lamps and fittings to that on theIndustrial side. And have been approved by the international authorities like "CE" "TUV" "GS" "UL" "CSA"and meet the requirements of each country for bringing our products in.

We have been committed to providing all our customer with prime quality products with favorite prices to fulfil the lighting needs.

The customer's satisfaction on our products and services is the goal we strive for.
