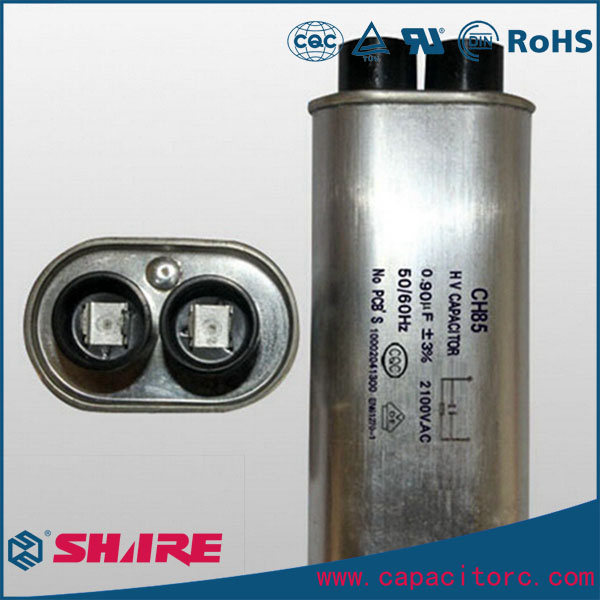

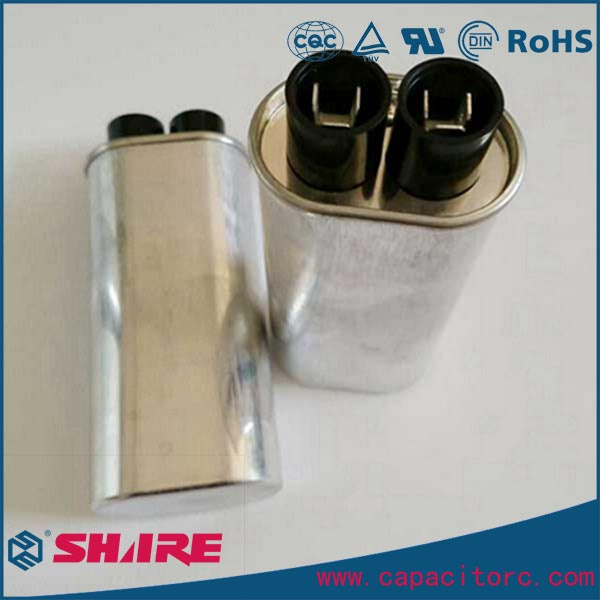

CH85 Hv Capacitor Microwave Oven Capacitor High Voltage Capacitor

Name: CH85 Hv Capacitor Microwave Oven Capacitor High Voltage Capacitor
Brand: all-electronics-online.com
SKU: 812511205
Availability: InStock
Rating: 4.5 (119 reviews)

Price:	US $ 1-10/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

CH85/CH86 Series Microwave Oven High Voltage Capacitor

Microwave Oven Capacitor Introduction:

Microwave oven capacitor have the capacity of high precision, high operating voltage in the stable performance for industrial and domestic microwave ovens and other high-voltage AC circuits, the product structure of composite media for the oil is the main parts of microwave oven. Small size light weight.
Use of high voltage insulating oil, the whole sealed structure, good heat dissipation, can enhance product life. Composite insulating medium, the product high pressure, electrical properties and stability.

Microwave Oven Capacitor Specifications:

Reference standards	IEC61270-1
Rated capacitance CR	0.5µF ~ 1.23µF (MFD)
Tolerance	± 1%, ±3%, ±4% or fulfilled upon request
Rated voltage VR	2000VAC,2100VAC,2300VAC,2500VAC,3000VAC
Rated frequency FR	50/60Hz
Discharge resistor	10MΩ ± 10%
T-T DC	4.3Un / 10S
T-C	6000VAC / 60S
Dissipation factor	tan δ ≤ 0.01 (50Hz)
Climate types	-10°C ~ +85°C

Capacitor Certificate:

Prod Model:	CH85
Type:	Polypropylene Capacitor
Application:	Microwave Oven
Package Type:	Surface Mount
Capacitance:	0.5UF-1.5UF
Electrolyte:	Oil
Filter:	Film Capacitor
