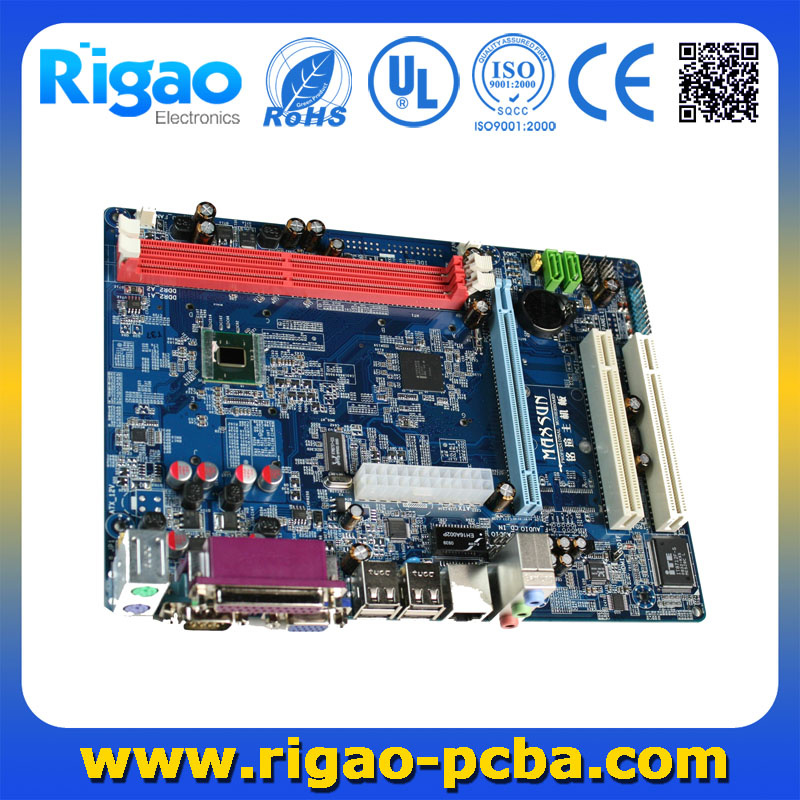

China Electronics Manufacturers (PCB&PCBA Board)
FPC Specifications:
1. Certificate of UL, ISO9001, ISO14001 and ISO/TS16949.
2. 4-5 days fast PCB and FPC delivery
3. Our Products meet the RoHS & WEEE lead-free requirement.
4. Minimum Order: 1 Piece
5. PCB and PCBA manufacturer
6. PCB and PCBA Productivity: 3, 000 PCS/Year
Material Requirements:
| Size | Max.Finshed Size | 20.9"x24.4"(530mm x 620mm ) |
| Board Thickness | Standard | 0.004"to0.16 " ±10% ( 0.1mmto4.0mm±10% ) |
| Min. | Single/ Double-sided:0.008"±0.004"(0.2mm ±0.1mm) |
| 4-layer:0.01"±0.008"(0.4mm ±0.1mm) |
| 8-layer :0.01"±0.008"(0.4mm ±0.1mm) |
| Bow and twist | < 7/1000 |
| Copper Weight | Outer Cu weight | 0.5oz ~ 3.0oz |
| Inner Cu wight | 0.5oz ~ 3.0oz |
| Laminate Materials | FR-4,FR-1,,FR-2,CEM-1,CEM-3 |
Process Requirements:
| Solder Mask | Color | green,light green,white,black,dark brown,yellow,red,blue |
| Min. solder mask clearance | 0.003"(0.07mm) |
| Thickness | 0.0005"-0.0007"(0.012mm-0.017mm) |
| Silkscreen | Color | White,black,yellow,red,blue,green |
| Min. Size | 0.006"(0.15mm) |
| Surface Finish | HASL,HASL pb free,immersion gold,immersion silver,immersion tin,O.S.P (Entek),S/G plating,ENEPIG,G/F plating,carbon |
Quality Control:
| Electrical testing | Flying Probe Tester | Y |
| Controlled Impedance | Tolerance | ±10% |
| Impedance tester | Tektronix TDS8200 |
| Routing | End Mills Test | ± 0.006"(0.15mm) |
| CNC Tolerance | ±0.004"(0.1mm) |
| V-Cut Depth V-cut | FR-4(1/3+-0.1mm);FR-1,FR-2,CEM-1,CEM-3(1/2+-0.1mm) |
| V-cut angle V-CUT | 15°,18°,30° |
| V-CUT | line,hole,V-shape |
Certificates
| UL Cert. | Y |
| ISO Cert. | ISO9001 :2008 |
| TS16949 | Y |
| ISO14000 | Y |
Features:
Dimension: 30mm*28mm
Base Material: 0.1mm Cu/25um ADH/25um PI+25um ADH/35um Cu/
20um ADH/ 35um Cu/ 2525um PI+25um ADH/
25um ADH/ 0.1mm Au
Thickness: 1.6mm
Line Width/Space: 0.15mm/0.15mm
Surface Treatment: ENIG: Au: 0.03-0.09um, Ni: 2-6um
Minimum via diameter: 0.2mm
The smallest hole: 0.35mm
Outline Tolerance: +/-0.2mm
