| Prod Model: |
ZC-ECT14WV |
| Model No: |
Zc-Ect14wv |
| Product Name: |
Eoc Slave Modem |
| Type: |
TV Front-end Equipment |
| Function: |
Signal Transmitting Device |
| Certification: |
RoHS |
| Condition: |
New |
Product Description
China factory price Cable Modem for triple play network CATV EOC Slave

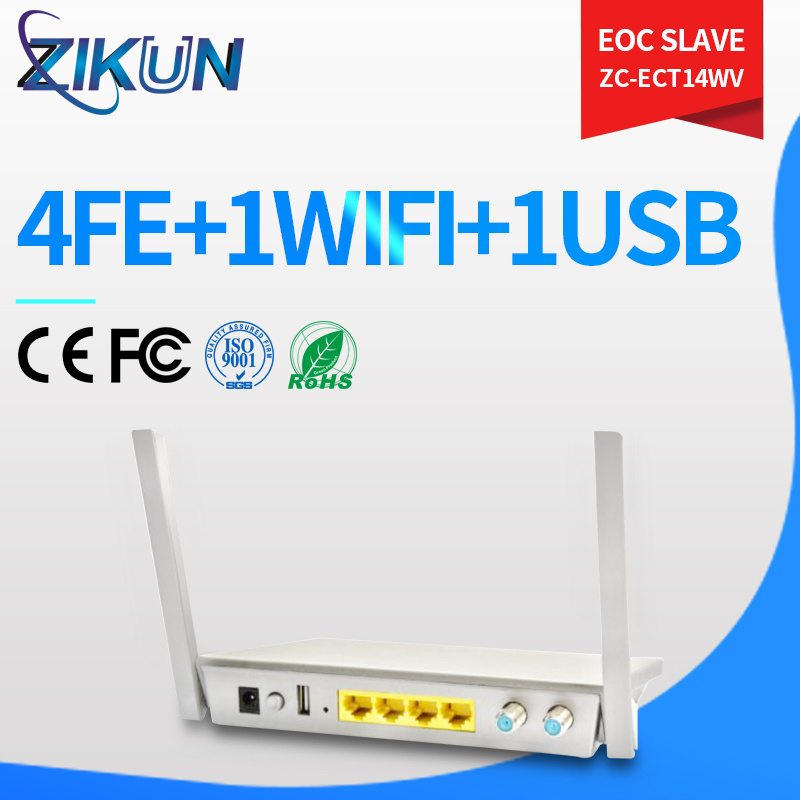

Products Description ZC-ECT14WV EOC Slave coaxial cable terminal is an EOC Slave based on Atheros 7411 solution. It's has 4 10/100M full duplex Ethernet ports which can simultaneouslyconnect computer,
Set Top Box(STB) or other terminals. When working with Richerlink EoC master series, it can reach the maximum physical rate of 700Mbps and build Layer-2 Ethernet transmit
network through television coaxial cable and meanwhile have no influence on the pre-existing CATV signal transmission.
ZC-ECT14WV EOC Slave occupies low frequency band under 65MHz and has no collision with the current CATV system frequency which can decrease mutual interference.
ZC-ECT14WV EOC Slave has two SSID. One is for cable operator network maintenance and the other is for end users to wireless access internet. It's based on 802.11n standard,
compatible with 802.11b/g, providing up to 150M wireless transmission for home network coverage.
ZC-ECT14WV EOC Slave support bandwith control and encrypted transmission to satisfy high reliable service.
The maximum uplink bandwidth can be configured individually in order to prevent the attack to the whole coaxial transmission network
ZC-ECT14WV EOC Slave has two accounts with different authority: Administrator Account and User Account .
Specification & Function
ITEM | ZC-ECT14WV |
Port | WAN | One thread cable port |
LAN | Fourself-adaptive 10/100M RJ45 port |
TV | One CATV coaxial port |
Standard | IEEE HomePlug AV, IEEE 802.11b/g/n, IEEE 802.3, IEEE 802.3u, CSMA/CA, CSMA/CD,TCP/IP, DHCP, ICMP, NAT, PPPoE |
WiFi | Frequency | 2.4~5GHz |
Transmission speed | Up to 150Mbps |
Channel number | 13 |
Data Modulation | DBPSK,DQPSK,CCK and OFDM(BPSK/QPSK/16-QAM/64-QAM) |
Transmit Distance | Up to 120m indoor or 360m outdoor |
Antenna | 3dBi detachable HG omni antenna |
EoC | Frequency | 7.5-65MHz |
Output Power | ≥110dBuV |
Modulation | OFDM |
Physical Layer Bandwith | 700Mbps |
IPLayer Throughput | 320Mbps |
RF Impedance | 75ohm |
CATV RF | Frequency | 87-1000MHz |
Return Loss | >16dB |
Insert Loss | ≤1dB |
LED Indicator | WAN | Lighting: link / Blink: data transmission |
LAN | Lighting: link / Blink: data transmission |
PHONE | lighting: log on sip server blink :no log or data transmission |
Others | POWER(on/off)/EoC(initialization status)/ Wireless(on/off) |
Working Environment | Work Temperature: -20ºC~55ºC Work Humidity :10%~90%(no-condesning) Storage Humidity:5%~90%(no-condesning) |
Power Supply | DC 12V/1A |
Features:
Compatible with IEEE HomePlug AV, 802.11 b/g/n, IEEE802.3, IEEE802.3u
EoC coaxial cable WAN access, providing TV, WiFi, 10/100M Ethernet port
Support CSMA/CA, CSMA/CD, TCP/IP, PPPoE, DHCP, ICMP, NAT protocol
Provide 1 WAN port, 4 10/100M LAN ports, supporting Auto MDIMDIX
Provide two working mode: Bridging and Routing
Support Quality of Service(QoS)-802.11e
Support remote and WEB management, full English UI
Support two SSID function
Support NAT/NAPT IP sharing, PPPoE/Static IP/PPTP/DHCP
Provide up to 150Mbps wireless transmission
Support virtual server, DMZ host
Support 128bit WEP/WPA-PSK/ WPA2-PSKencryption
Support UPnP, DDNS;
Support IP filter, port filter and MAC address filter
Built-in DHCP server and firmwall, can prevent DoS attack
Provide system security log and flow statistics function
Provide Web Management Reset, supporting online software updating
Support 3DBi HG omni antenna
Applications: for triple play network Our company
Shipping1. We shipping via DHL / FedEx / TNT/etc for samll orders. Yow can get your packages in about 3-5 days all over the world.
2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.
3. You can choose your own shipping agent, we will provide good cooperation for it.
After-Sales Service
1. We can provide detail documents and remote help for device installation and configuration.
2. Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3. Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it's accessories are complete.
