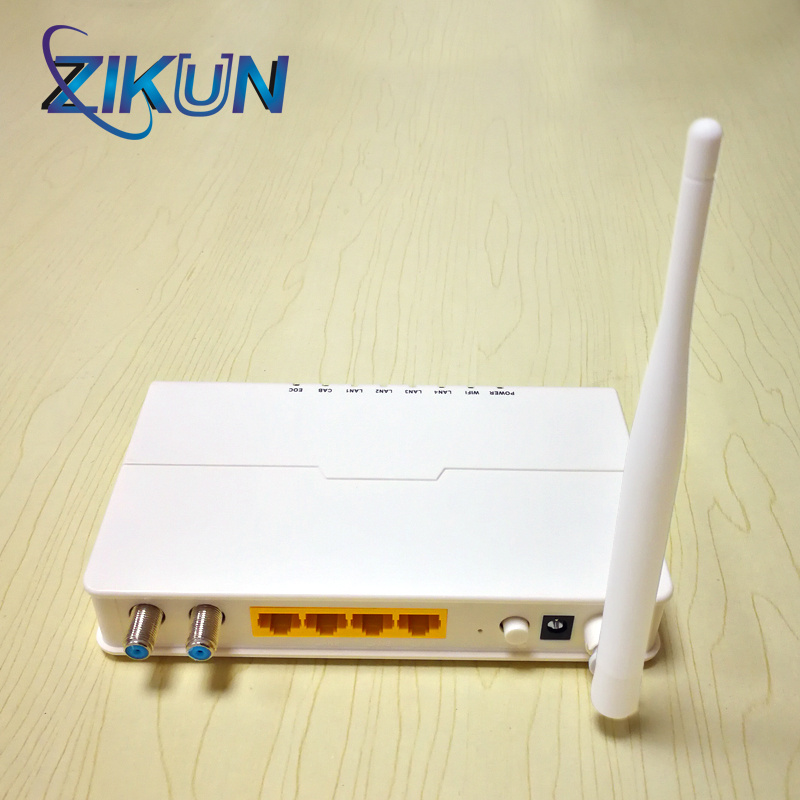

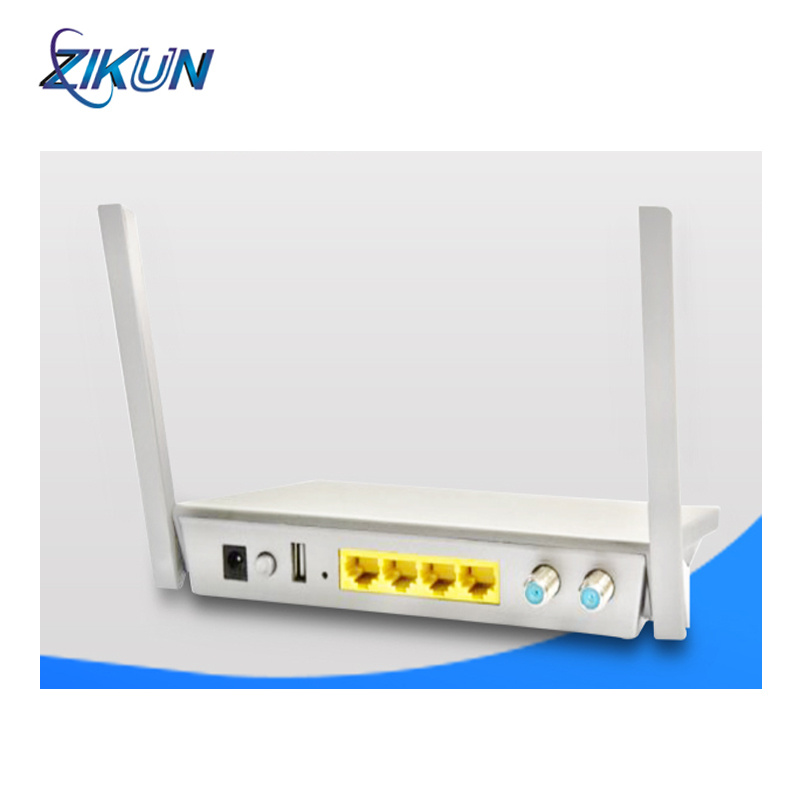

Ethernet Over Coaxial Cable EOC Slave Modem, EOC Slave wifi, EOC Slave
EOC Slave Specifications
Item | ZC-ECT13WV |
Standards compliance | IEEE1901,HomePlug AV, IEEE 802.3u, IEEE 802.3x IEEE 802.1q, IEEE 802.11b/g/n |
Ports | WAN | 1 Thread Cable Port |
LAN | 3 10/100M RJ45 Ports |
TV | 1 CATV Coaxial Port |
WiFi | Operation Arrange | 2.4~2.4835GHz |
Transmission Speed | Up to 150M |
Operation Channels | 13 |
Data Modualtion | DBPSK,DQPSK,CCK,OFDM(BPSK/QPSK/16-QAM/64-QAM) |
Transmission Distance | 60 meters max(Indoor) |
RF Power | 20dBm EIRP |
Antenna | 3dBi detachable HG omni antenna |
VOIP | Support SIP V2.0(RFC 3261/RFC3262)protocol, H.248 protocol Support G.711 (A-Law, μ-Law), G.723.1 and G.729A/AB coding Provide one RJ11 port to connect Telephone, standard voice function Support Voice Activity Detection(VAD) Support Comfortable Noise Generation (CNG) and Echo Cancelation Support advanced jitter buffer control, Support Fax pass-through &T.38 FoIP Fax |
EoC | Solution | Qualcomm 7411 |
Output Power | ≥110dBuV |
Modulation Mode | OFDM |
Transmission Speed | Physical Layer:700Mbps MAC Layer:320Mbps |
Operation Frequency | 7.5-65MHz |
RF Impedance | 75 Ohm |
CATV RF | Bandwith | 87-1000MHz |
Return Loss | >16dB |
Insert Loss | ≤1dB |
LED | WAN | WAN Lighting: link / Blink: data transmission |
LAN | LAN Lighting: link / Blink: data transmission |
PHONE | Phone lighting: log on sip server blink :no log on sip server or data transmission |
Other | POWER(on/off) / EOC(initialization status)/ Wireless(on/off) |
Size(LxWxH) | 180(mm)*110(mm)*31(mm) |
Operation Enviroment | Operation Temperature: -25~55 ºC Storage Temperature: -40~70 ºC Operation Humidity: 10%~90% non-condensing Storage Humidity: 10%~95% non-condensing |
Power Adaptor | DC 12V/1A |
Packaging
1. All products will be packed in carton , so the product can get effective protection to avoid damage.
2. Packaging according to customer requirement
Shipping
1. We shipping via DHL FedEx TNT etc for samll orders. Yow can get your packages in about 3-5 days all over the world.
2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.
3. You can choose your own shipping agent, we will provide good cooperation for it.
After-Sales Service
1. We can provide detail documents and remote help for device installation and configuration.
2. Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3. Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it's accessories are complete.
