| Prod Model: |
ZC-EC3002 |
| User Network Interface: |
Outdoor Eoc Master |
| Products Name: |
Eoc Master |
| Application: |
Triple Play Network |
| Wiring Devices: |
Integrated Wiring |
| Certification: |
GS |
| Condition: |
New |
| Type: |
Eoc Master |

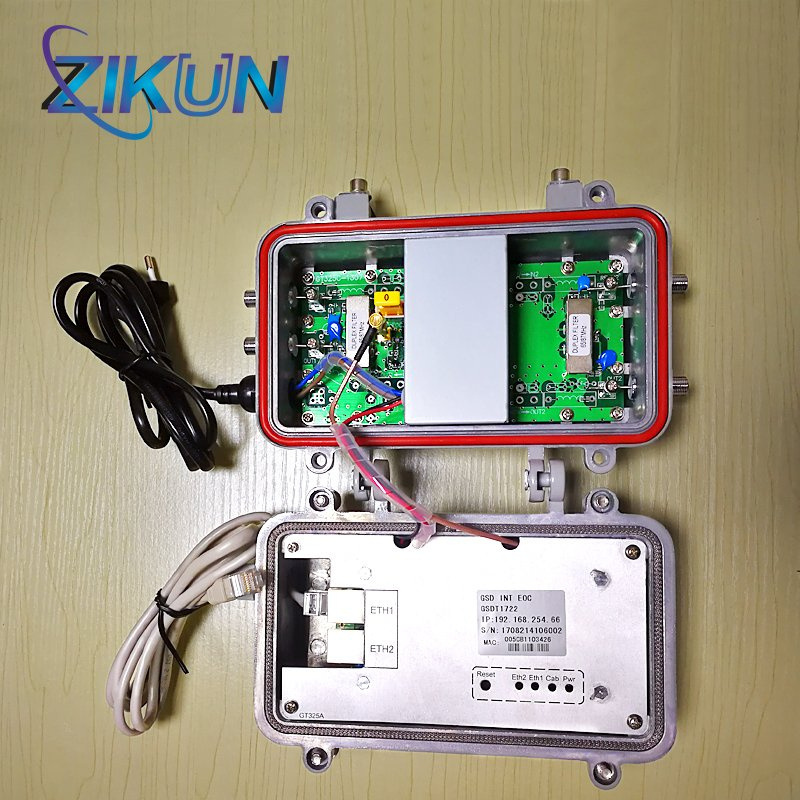

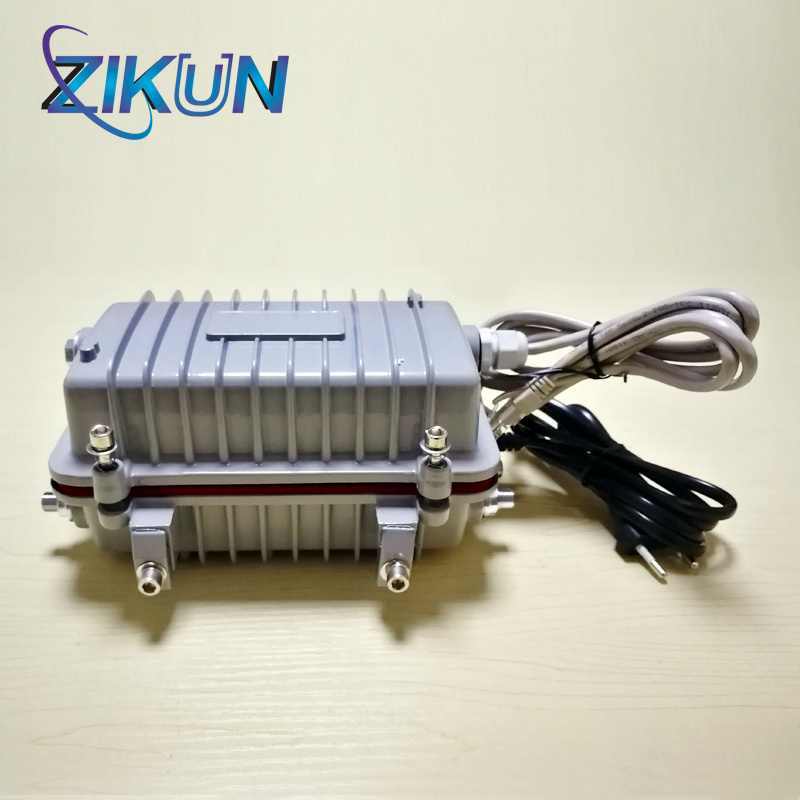

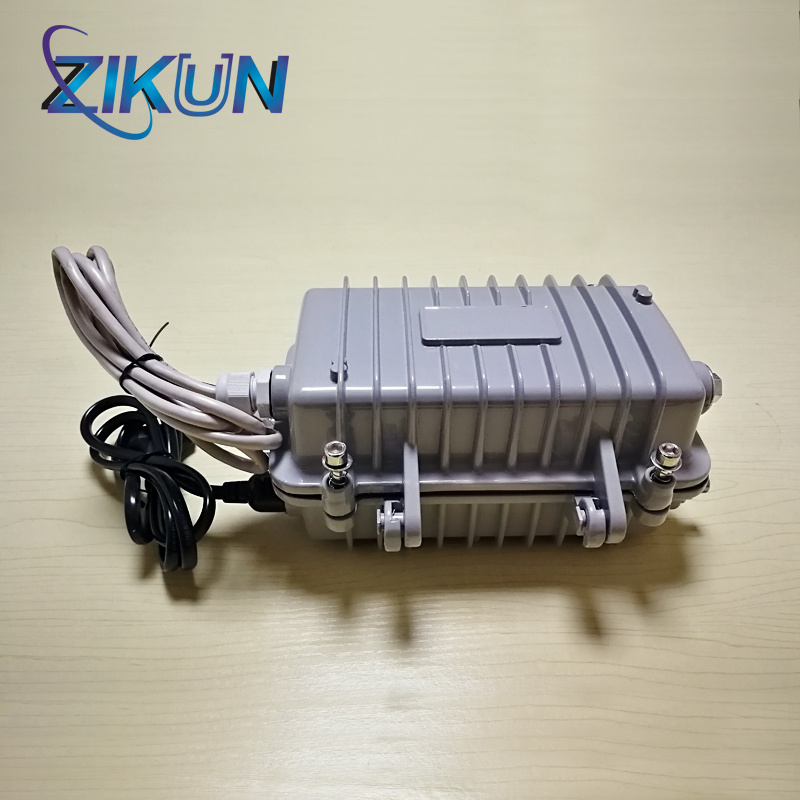

Product Description
Ethernet Over Coaxial Cable EOC Slave Modem, EOC Slave wifi, EOC Slave
ZC-EC3002 EoC Master Product Specification
ITEM | ZC-EC3002 |
EoC Module | One Qualcomm 7410 EoC mater modules |
Power | 30W |
Transmission Speed | 350Mbps |
Homeplug RF | Occupied Bandwith:7.5~67.5MHz;Output Power:≥110dBuV |
CATV RF | Occupied Bandwith:87-1000MHz;Input Return Loss:>16dB; Insert Loss:≤1dB Flatness:±0.75dB C/N:≥51dB(-1dBmN); C/CTB: ≥65dB;C/CSO: ≥60dB RF Output Signal Level: ≥110dBuv |
Optertical Character | Data Optical Interface:1 PON interface, single mode, FC/PC Data Optical transmission Wavelength: 1310nm Data Optical Receiving Wavelength:1490nm TV Optical Receiving Wavelength:1100 to 1600nm, typical 1550nm TV Receiving Optical Power:-7dBm to +2dBm TV Receiving Optical recommended Power: -3dBm to +1dBm TV Optical Interface: Single, FC/APC |
Connection Type | F breakthrough Connector(inch/metric optional) |
RF Impedance | 75Ω |
Standards Compliance | IEEE HomePlug AV,IEEE 802.3, IEEE 802.3x, IEEE 802.3u Auto MDI(X) |
Remote Management | Support remote WER management, TELENT, SNMP; Support centralized management on all connected EoC terminals |
Protocol | TDMA/CSMA |
Coding Mode | Asynchronous |
Modulation Mode | OFDM |
Transmission Distance | 500m-1000m |
Encryption Mode | 128-bit AES |
Power | 110-264VAC/40-95VAC |
Size(LxWxH) | 340×235×140mm |
Weight | 3.9kg |
Operation Temperature | -25~65 ºC |
Storage Temperature | -40~70 ºC |
Operation Humidity | 10%~90% non-condensing |
Storage Humidity | 10%~95% non-condensing |
EOC Slave Specifications
Packaging
1. All products will be packed in carton , so the product can get effective protection to avoid damage.
2. Packaging according to customer requirement
Shipping
1. We shipping via DHL FedEx TNT etc for samll orders. Yow can get your packages in about 3-5 days all over the world.
2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.
3. You can choose your own shipping agent, we will provide good cooperation for it.
After-Sales Service
1. We can provide detail documents and remote help for device installation and configuration.
2. Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3. Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it's accessories are complete.
Company Information
We are HuNan ZiKun Information Technology Co., Ltd, Our products mainly include the optical signal transmission and access, signal transmission and access, photoelectric signal conversion and photoelectric signal and so on.We are now the agent of well-known international brands such as HUAWEI, ZTE etc. The products are exported to Europe, America, Southeast Asia, the Middle East as well as Japan, Korea and other neighboring countries
We will constantly improve our service and quality to create a win-win situation. If you have any question ,please contact me.
Please contact us to know details.
We supply different kinds of products with high quality and favorable price. We're pleased to get your inquiry and we will reply you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
Hunan zikun information technology Co., Ltd. is a provider of information and communication solutions for optical communication technology and video processing technology. The company can provide users with leading optical communications products and IPTV, system solutions and professional services at home and abroad who dedicates to create the greatest value for customers. Currently the company's main business scope includes DWDM, gpon, epon, switches, IPTV, eoc, passive devices and other products, those are widely used in radio and television cable network, triple play and safe urban security, road facilities, airports, ports, securities industry, tourism scenic area, school education industry, public security law and politics, medical and health, intelligent community and large and mediumsized enterprises ect...We will make our all efforts to make you succeed and gain benefit from the cooperation with us, as the customers'success is our success. And through our joint efforts, continue to contribute to the development of human science and technology.
