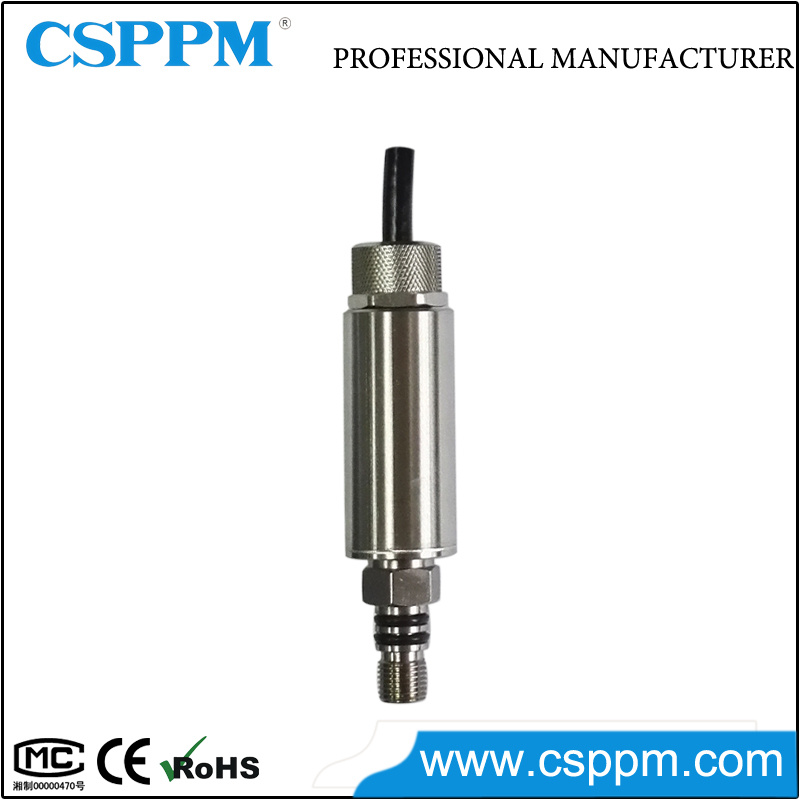

Model PPM-S322 Pressure Transducer For Loaders
DescriptionThe model PPM-S322 pressure transducer adopts thin-film sputtering technology. Each sensor was strictly temperature compensated for both zero and span. The PPM-S322 pressure transducer has been developed for loader weighing system and it can measure pressure and temperature signals simultaneously. This pressure transducer offers extremely high accuracy up to 0.1%FS. Different electrical connections are available, and it is convenient to install and configure.Featrues1. Shock and vibration resistance, resistance to pressure spikes
2. Resistance to high and low temperature
3. High long-term stability
4. High accuracy up to 0.1%FS
5. Customized services are availableApplications1. Loader weighing system
2. Forklift weighing scales
3. Truck crane
4. Other construsction machineriesSpecification| Measuring medium | Gas, liquid, steam |
| Pressure type | Gauge pressure(G), Sealed pressure(S),
Absolute pressure(A) |
| Pressure range | 0~16Mpa…25Mpa…35Mpa…40MPa …60Mpa…100MPa |
| Power supply | 5VDC(3-12VDC) |
| Output signal of pressure | 0-10mV, (0-20mV at 10VDC) |
| Output signal of temperature | 18B20 |
| Nonlinearity | ≤0.04% FS |
| Non-repeatability | ≤0.02% FS |
| Accuracy | 0.1%FS, 0.2%FS |
| Long-term stability | 0.1%FS/year |
| Medium temperature | -40~125ºC |
| Operation temp | -40~+125ºC |
| Zero temp. drift | ≤0.005%FS/ºC, ≤0.01%FS/ºC |
| FS temp. drift | ≤0.008%FS/ºC, ≤0.015%FS/ºC |
| Response time | ≤0.8ms(10%~90%) |
| output impedance | 1500±50Ω,3300±50Ω,5500±1500Ω |
| Insulation resistance | ≥500 MΩ/100V |
| Overpressure | 200%FS (2 times FS) |
| Damage pressure | 500%FS (5 times FS) |
| Vibration resistance | 5~1000Hz |
| Shock resistance | 50g, 20ms |
| Process connections | M20×1.5,M16×1.5,M14×1.5,M10×1,G1/4, or other process connections on request |
| Materials | Wetted parts: 17-4PH, 15-5PH
Non-wettedparts: stainless steel 316, 1Cr18Ni9Ti |
| Ingress protection | IP65 |
| Electrical connections | Circular connector M12 x 1, cable outlet |

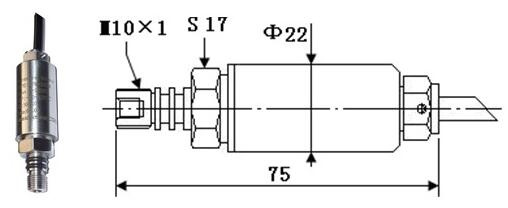

Dimensions in mmPPM-S322A

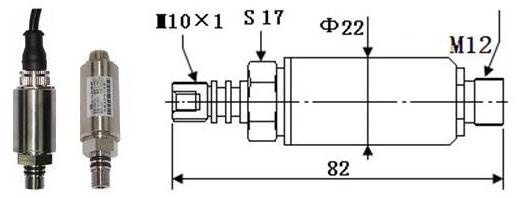

PPM-S322B

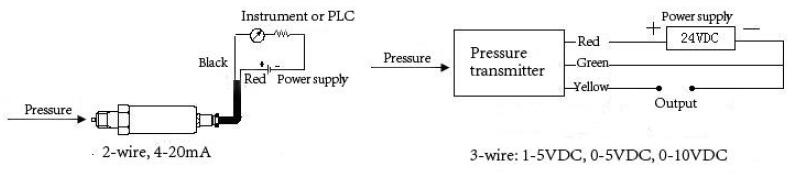

Wiring diagram
Order information| Model PPM-S322 Pressure Transmitter |
| | Code | Pressure type |
| | G | Gauge pressure |
| | S | Sealed pressure |
| | A | Absolute pressure |
| | Code | Pressure ranges |
| | M | 0~ X MPa |
| | K | 0~ X KPa |
| | P | 0~ X Pa |
| | Code | Accuracy |
| | 1 | ±0.5%FS |
| | 2 | ±0.25%FS |
| | 3 | ±0.1%FS |
| | Code | Output signal |
| | V0 | mV |
| | A1 | 4~20mA |
| | V1 | 0~5V DC |
| | V2 | 1~5V DC |
| | V3 | 0.5~4.5V DC |
| | V4 | 0~10V DC |
| | A0 | Others |
| | Code | Operation temperature |
| | T1 | -10~70ºC |
| | T2 | -25~85ºC |
| | T3 | -30~125ºC |
| | T4 | -45~150ºC |
| | T0 | Others |
| | Code | Power supply |
| | D1 | 5VDC |
| | D2 | 10VDC |
| | D3 | 24VDC(9-32)VDC |
| | D0 | Other |
| | Code | Process connection |
| | M1 | M20x1.5 |
| | M2 | M14 x1.5 |
| | M3 | M10x1 |
| | G1 | G1/4 |
| | G2 | G1/2 |
| | N1 | 1/4NPT |
| | N2 | 1/2NPT |
| | F0 | Other |
| | Code | Electrical connection |
| | W1 | Cable outlet |
| | W2 | DIN43650 |
| | W3 | Circular connector M12 x 1 |
| | Code | Other |
| | P1 | Common |
| | P2 | Non-cavity diaphragm |
| |
