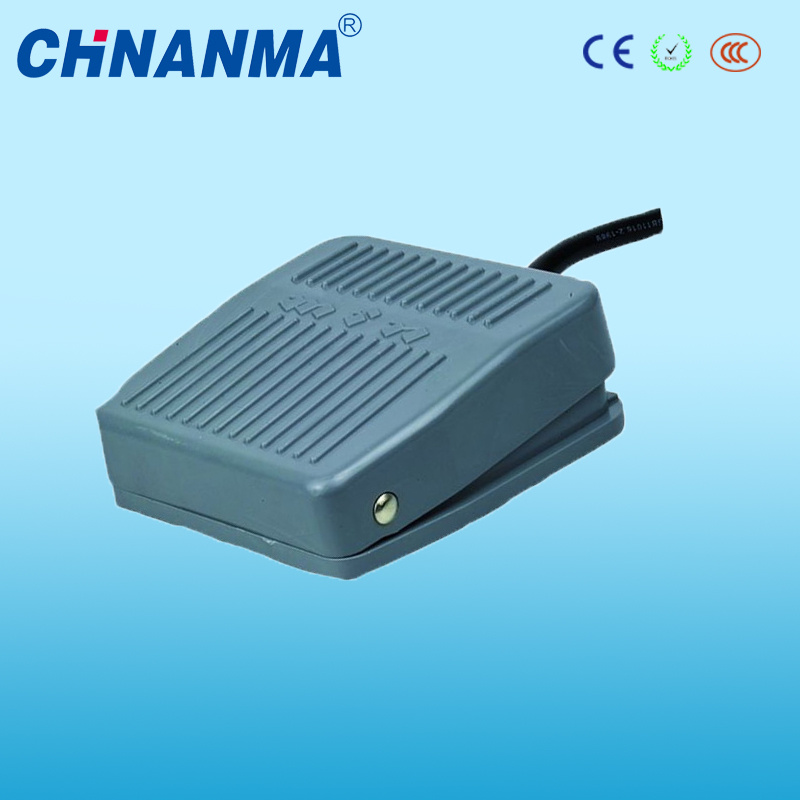

Chnanma Fs-201 10A 250VAC Foot Switch

Name: Chnanma Fs-201 10A 250VAC Foot Switch
Brand: all-electronics-online.com
SKU: 755701425
Availability: InStock
Rating: 4.3 (52 reviews)

Price:	US $ 2-5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Foot Switch Characteristics:
Adopt metalshell, hard and strong in volume, stand wear and tear.

Widely used in various of industrial machinery, just like industrial automation installment, transport, stamping, medical treatment, testing etc.

Application Attentions:

1.According to the difference of load and current value,rated load should be taken note.Current value of this series is 10A and 15A.

2.When transporting and movving, pls take note of the short circuit or open circuit may happen in internal wiring.

3.Pls take note of the level protection when used in water,oil and bug dust.This series has protective type and unprotective type.

4.The immediate cause for broken is stress and attack,pls pay attention.

5.Warning mark "Danger! High Voltage!" and "Take note!" remind us pay attention to personnel safety and correctly operation.

Contact resistance	25mΩ(Initial value)
Insulation resistance	100mΩ(above)DC500V
Withstand voltage	>=2000VAC
Mechanical life	1,000,000 above
Electrical life	100,000 above
Operating temperature	-20~+70ºC
Operating humidity	<=85%

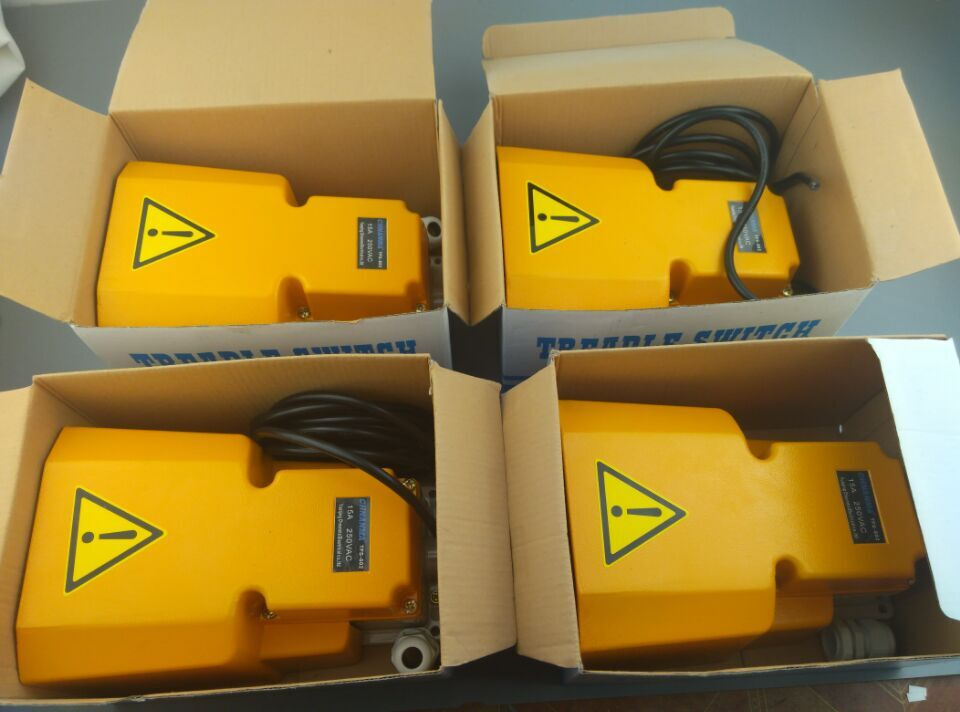

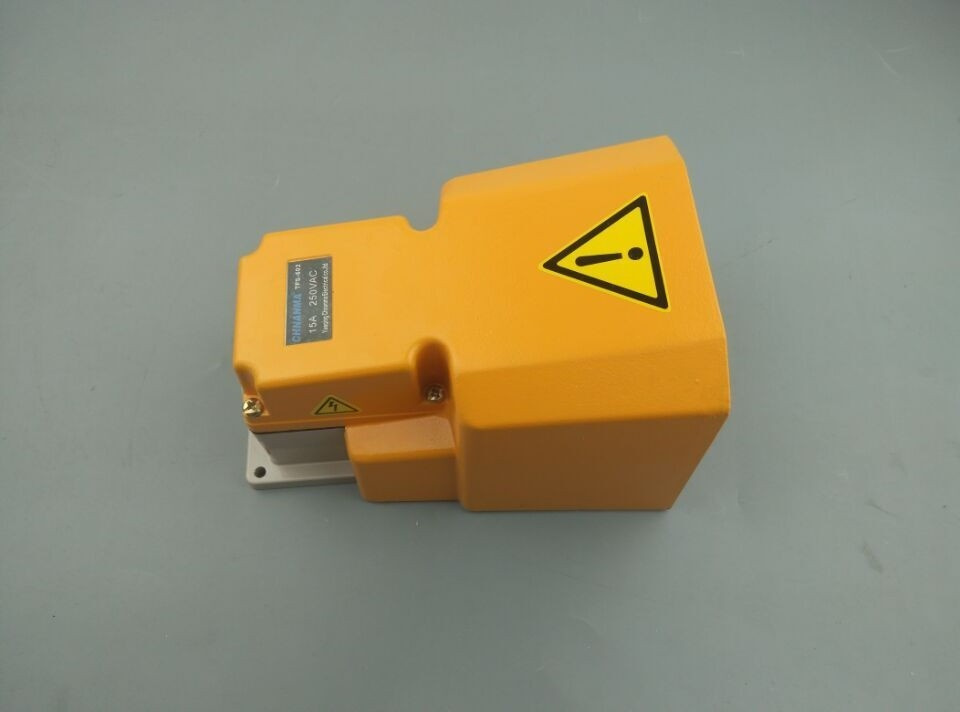

Pictures show details:

Item	Specification
Model Name	XF-4,
Rating	10A 250VAC
Contact	1C
Material of Rind	ALUMINUM
Insulation resistance	≥100MΩ
Contact resistance	≤25mΩ
Withstand voltage	≥ 2000VAC
Electrical life	≥100,000 times above
Protection degree	IP54
Temperature	-25-75°C
Humidity	<85%

5.Why choose our switches

1) We can provide you with different types of micro switches for your selection.

2) We can offer good quality electric life 500, 000-1, 000, 000times.

3) Various operating force, height and color for one switch for your choice.

4) Safety, on-time delivery, excellent quality with competitive price.

5) ODM&OEM professional design.

6.Customer's questions

Q1:How about the delivery time?
Answer:It's depends on the quantity, for example, 10000PCS need to OEM,
delivery time is 3-7 days.

Q2:What quality you can offer to us?
Answer:We now can do 1/2 years warranty, during the warranty time we can exchange all defective products from customers for free.

Q3:Can you give me samples to test?
Answer:Yes

Q4:What's you MOQ?
Answer:MOQ 100PCS, mixed order acceptable, welcome trial order.

Prod Model:	FS-201
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Protection Level:	IP54
Color:	Free Choice
Max. Current:	10A
Max. Voltage:	250VAC
Withstand Voltage:	2000VAC
Mechanical Life:	1,000,000 Times Above
Rotary Number:	Dual Button
Usage:	Digital Products
Standard:	Standard
Structure:	Self-Reset
Operation:	Protection Type
Certification:	CE
Condition:	New
