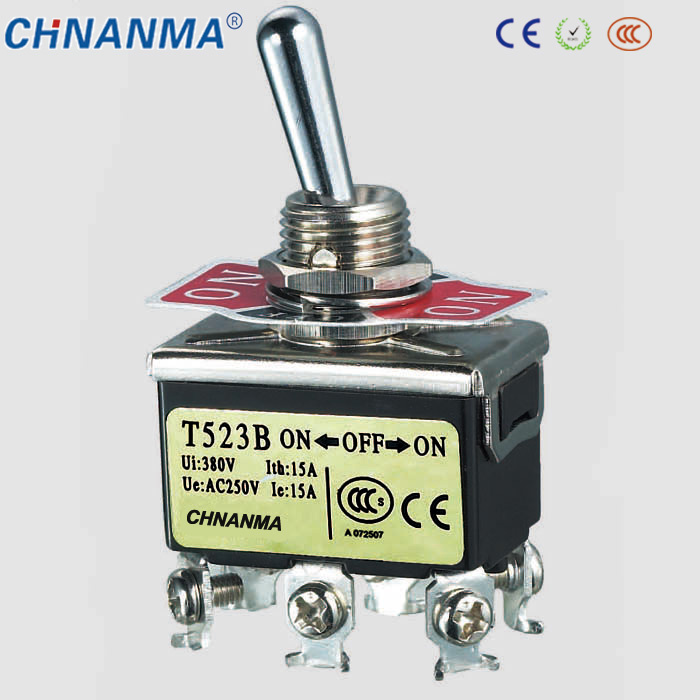

Kinds of Electrical Push Button Auto Reset on off Toggle Switch

1.15A 250V
2 Srew terminal or Tab terminal
3.Spring return is optional
4.Waterproof cap is optional


1.Specification
The current has 10A and 15A
Movement way has fixed type and auto-return type(both single-throw and double-throw can return)
The terminal block has screw terminal and solder terminal(tab terminal also can be used)
Rainproof cap, water-proof and oil-proof, it is suitable for full series products
Mounting hole:φ12mm

Rating

Load	Type	AC Rating	DC Rating
Resistance Load	CO	10A 250V 15A 125V	0.4A 250V 0.8A 125V
	C5	15A 250V 20A 125V	0.5A 250V 0.9A 125V
Inductive Load	CO	10A 250V 15A 250V	0.2A 250V 0.4A 125V
	C5	15A 250V 20V 125V	0.3A 250V 0.5A 125V 15A 30V
Lamp Load	CO	300W 100V 500W 200V	-
	C5	400W 125V 800W 250V	7A 30V
Motor Load	CO	200W 125V 300W 250V	-
	C5	400W 125V (single phase)
	CO	550W 250V (hree phase)
	C5	750W 250V (hree phase)

ltems	Code	Description
Type	CO	10A 250VAC
	COR	10A 250VAC Spring return
	C5	15A 250VAC
	C5R	15A 250VAC Spring return
Contact	11	Single pole single throw ON-OFF
	12	Single pole double throw ON-ON
	13	Single pole single throw (central OFF) ON-OFF-ON
	131	Single pole double throw (central OFF single return) ON-OFF-ON
	21	Double pole single throw ON-OFF
	22	Double pole double throw ON-OFF
	23	Double pole double throw (central OFF) ON-OFF-ON
	231	Double pole double throw (central OFF single return) ON-OFF-ON
Terminal	A	Tab terminal(#25)
	B	Screw terminal
	C	Solder terminal(#187)


Characteristic

Item		Data
Rating load		15A/250VAC,25A/250VAC MTS:6A/125,250V
Operating frequency		30 times/min
Insulation resistance		100MΩ(above)DC500V
Contact resistance		25MΩ(initial value)
Withstand voltage	Non-connection wire	1000VAC
Vibration	Every terminal	1500VAC
Impact	Durable	10-55Hz amplitude 1.5mm
	Misoperation	1000m/s2
Life	Electrial	100,000 above
	Mechanical	500,000 above
Protection degree		IP40
Operating temperature		-25~+80ºC
Operating humidity		<85%

Products show&drawing

5.Why choose our switches

1) We can provide you with different types of micro switches for your selection.

2) We can offer good quality electric life 500, 000-1, 000, 000times.

3) Various operating force, height and color for one switch for your choice.

4) Safety, on-time delivery, excellent quality with competitive price.

5) ODM&OEM professional design.

6.Production line


7.CUSTOMER'S QUESTIONS
Q1:How about the delivery time?
Answer:It's depends on the quantity, for example, 10000PCS need to OEM,
delivery time is 3-7 days.

Q2:What quality you can offer to us?
Answer:We now can do 1/2 years warranty, during the warranty time we can exchange all defective products from customers for free.

Q3:Can you give me samples to test?
Answer:Yes

Q4:What's you MOQ?
Answer:MOQ 2500PCS, mixed order acceptable, welcome trial order.

Q5:What's the delivery term?
Answer:Both EXW and FOB Ningbo are acceptable.


Q6:What's the payment term?
We could start our discussion about payment term from second order on.

Q7:What's the shipment way?
Answer:Express:DHL, UPS, FedEx, TNT and SF express.
Forwarder:Air shipment or sea shipment.
