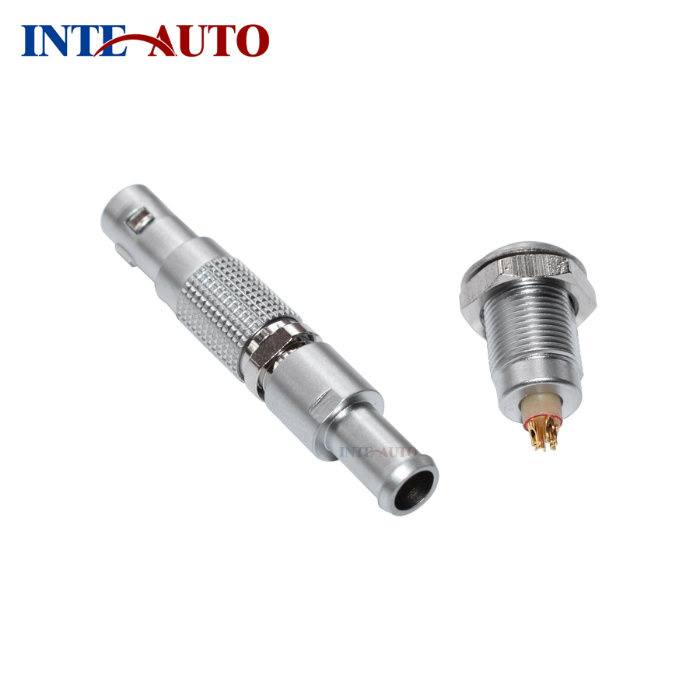

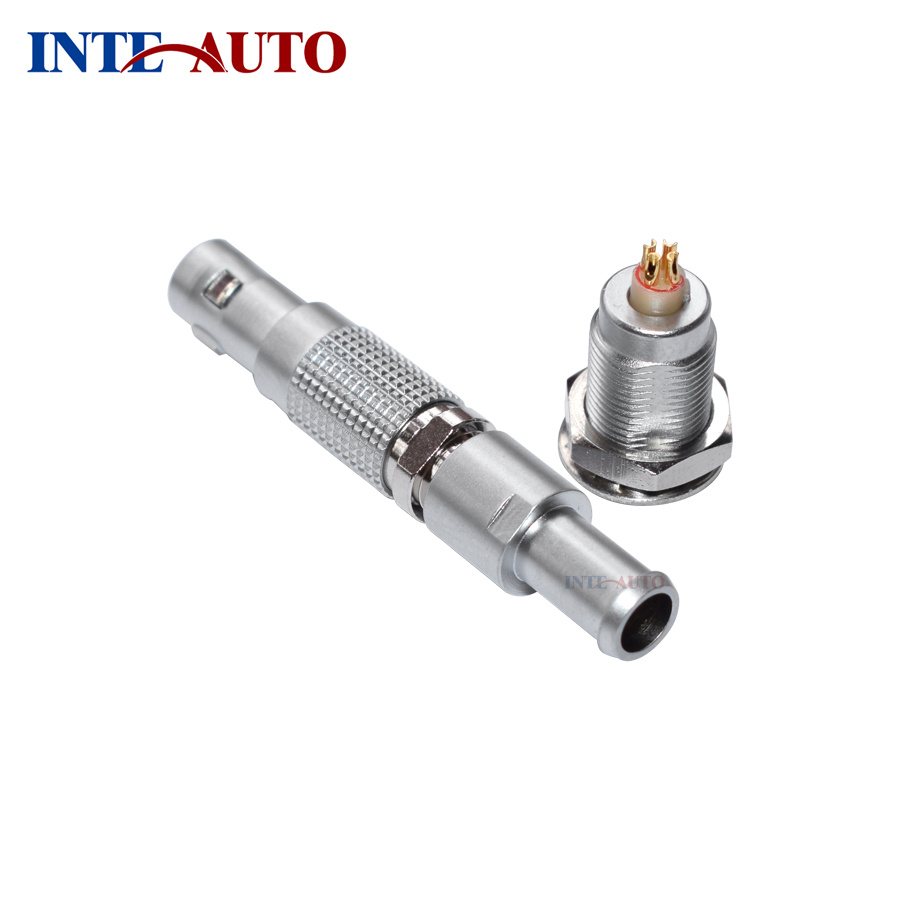

Circular 4 Pin Push Pull Male Connector
| Price: |
US $ 8-10/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
FGG. 00B. 304 EGG. 00B. 304 |
| IP Degree: |
IP50 |
| Contact Type: |
Solder |
| Number Of Contacts: |
4 Pins |
| Insulator Material: |
PPS |
| Sample: |
Free |
| Shipping Way: |
Fast Delivery |
| Lead Time: |
Inventory |
Product Description
00B series metal push pull male connector
Model (FGG).Series (00B).Key(G).Straight Plug, Cable collet.Nut for fitting a bend reliefModel(EGG).Series(00B).Fixed Receptacle, Key(G).contacts, nut fixingB series connectors provide the following main features:1.Security of the Push-Pull self-latching system
2.Multiple key options to avoid cross mating
3.keying system ("G" key standard)of similar connectors for connector alignment
4.360°screening for full EMC shielding.
5.multipole types 2 to 32 contacts
6.Solder,print contacts (straight or elbow)
7.High packing density for space savingsTechnical characteristics:Mechanical and Climatically
1.Endurance:>5000 mating cycles;
2.Humidity :Up to 95% at 60ºC;
3.Temperature range:-45ºC, +125ºC;
4.Resistance to vibration :15g(10Hz-2000Hz)
5.Shock resistance:100g,6MS
6.Salt spray corrosion test :>48h;
7.Protection index (mated) :IP50.Industry Application:It is widely used on all kinds of medical equipment's,specially for the signal transmission,Medical Equipment, Audio/Video,Test and Measurement, Communications product line.Series B Metal Connector with Multiple pins for your selection:00B Series:2,3,4 Pins

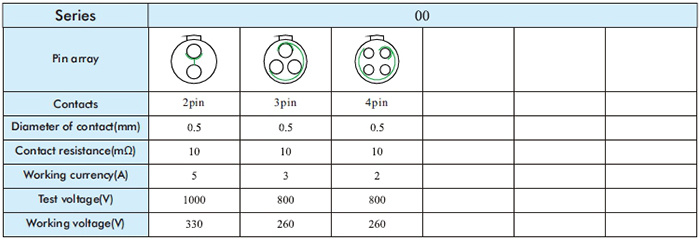

0B Series:2,3,4,5,6,7,9 Pins
1B Series:2,3,4,5,6,7,8,10,14,16 Pins
2B Series:2,3,4,5,6,7,8,10,12,14,16,18,19,26,32 Pins
3B Series:2,3,4,5,6,7,8,9,10,12,14,16,18,20,22,24,26,30Pins

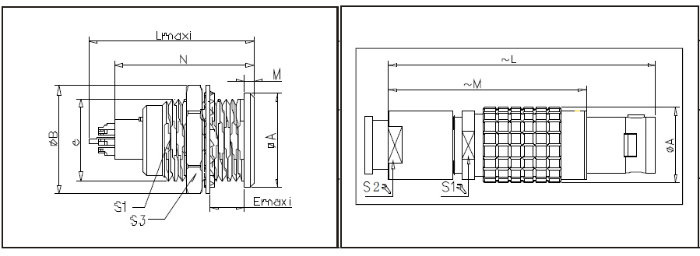

| Reference | Dimension |
| Model | Series | L | M | N | A | B | E | e | S1 | S3 |
| INTEGG | 00 | 15.5 | 1 | 13.7 | 8 | 10.2 | 6 | M7x0.5 | 6.3 | 9 |
| INTEGG | 0B | 20.7 | 1.2 | 19.1 | 10 | 12.4 | 7 | M9x0.6 | 8.2 | 11 |
| INTEGG | 1B | 23 | 1.5 | 21.1 | 14 | 15.8 | 7.5 | M12x1.0 | 10.5 | 14 |
| INTEGG | 2B | 26.7 | 1.8 | 24.6 | 18 | 19.2 | 8.5 | M15x1.0 | 13.5 | 17 |
| INTEGG | 3B | 30.7 | 2 | 28.1 | 22 | 25 | 11.5 | M18x1.0 | 16.5 | 22 |
| Model | Series | L | M | A | S1 | S2 |
| INTFGG | 00 | 34.5 | 19 | 6.4 | 5.5 | 6 |
| INTFGG | 0B | 35 | 25 | 9.5 | 8 | 8 |
| INTFGG | 1B | 41 | 30 | 12 | 10 | 9 |
| INTFGG | 2B | 48 | 36 | 15 | 13 | 13 |
| INTFGG | 3B | 57 | 42 | 18 | 16 | 15 |

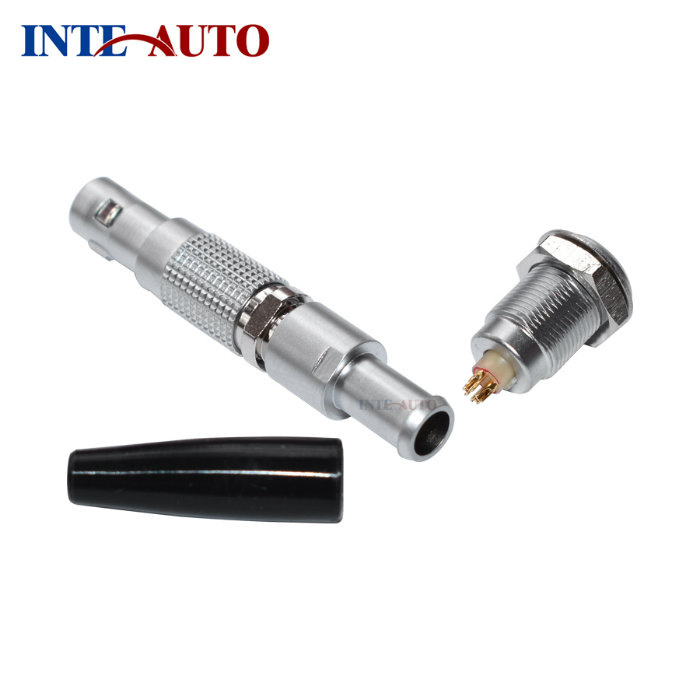

Product Photo Details:
INTE-AUTO design, manufacture and distribute high performance push-pull connector and cable assembly solutions. Known for their quality and ruggedness, our products prove to be reliable in the most demanding environments. Helping solve the original brand's high cost and long lead time.
INTEAUTO Certifications &Contact INFO
Over 10 years connector sales experence, PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon.
Helping solve the original brand's high cost and long lead time!!!

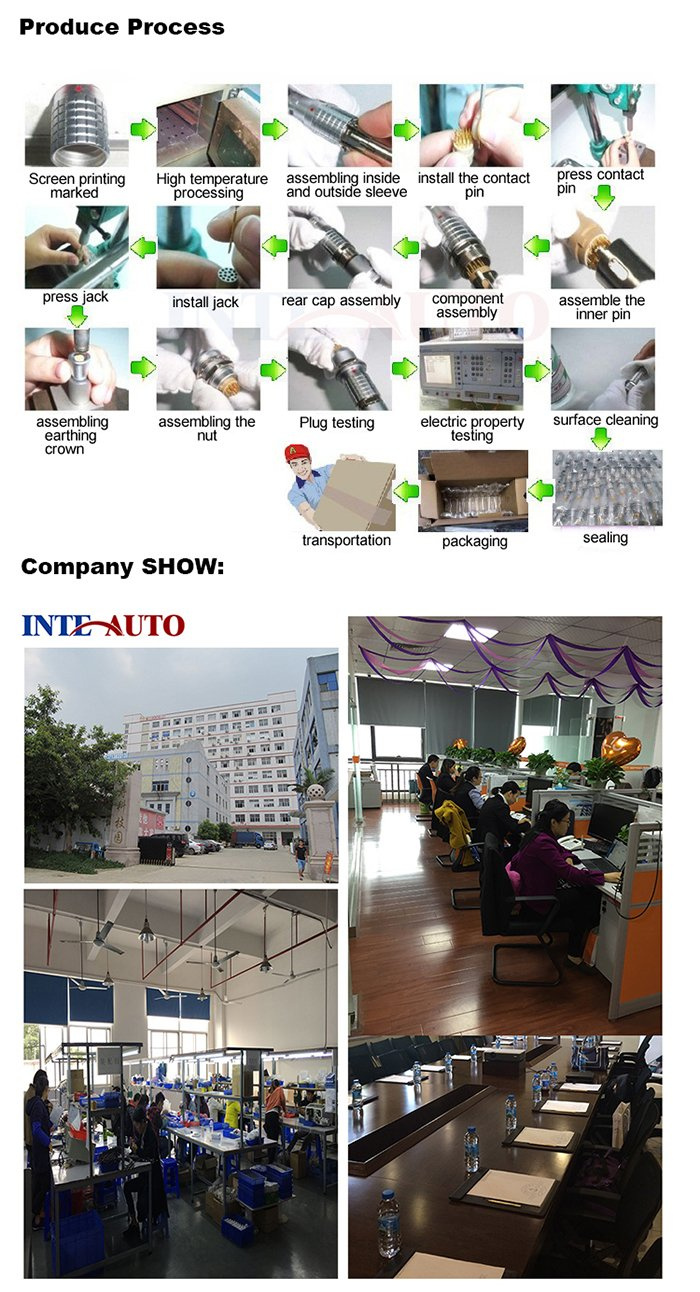

INTE-AUTO is located in ShenZhen China, dedicate to designing, manufacturing and distributing high performance push-pull connectors and cable assembly solutions. With high efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines, We can supply the same quality as original brand connectors and small customised connectors, our products proved reliability in the most demanding environments because of high quality & good durability.
Products Range:
B series-For Test Equipment, Electronic, Electricity, Medical, Car.
K series-For Outdoor Equipment, Military Equipment.
F series-For Military Equipment, Transportation.
S series-For Audio/Video, Microphone.
E series-For Outdoor Equipment.
P series-For Medical Equipment.
SP series-For LED screen
