Yangzhou Qianyou Electronics Co., Ltd. >> Clamp Type N Female RF Connector for Rg8/Rg213/Rg50-7/LMR400

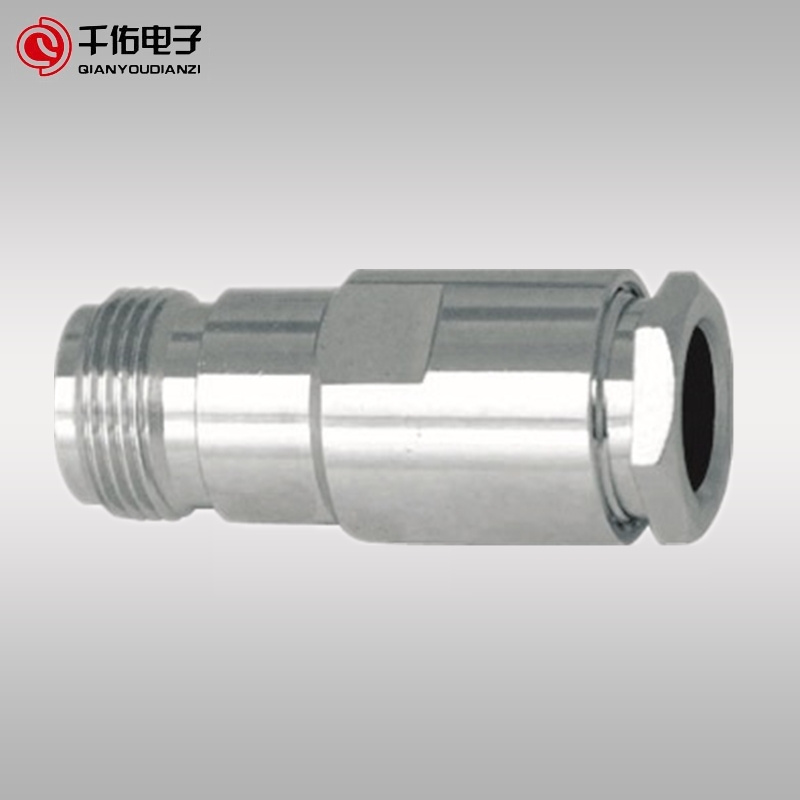

Clamp Type N Female RF Connector for Rg8/Rg213/Rg50-7/LMR400

Clamp Type N Female RF Connector for Rg8/Rg213/Rg50-7/LMR400
Price: US $ 1.45-1.5/Piece
Min Order: 100/Piece
Pay Type: T/T,D/P
Temp.range -40~+150°C
Impedance50Ω
Frequency Range DC~6GHz
Working Voltage1000V max
 Withstand Voltage 2500V rms
 Center Contact≤ 1mΩ
Outer Contact≤ 1 mΩ
 Insulation resistance≥ 5000 MΩ
Salty Test24h
Durability(mating)≥500times
Materialbrass
Platingnickel
 Inner conductor brass
Insulator PTFE
Applicable StandardIEC 60169-15
Prod Model: N-008
Frequency Range: DC~6GHz
Salty Test: 24h
Material: Brass
Plating: Nickel
Type: Generally Coaxial Connector
Coupling Mechanism: Threaded Connection
Application: Rg8/Rg213/Rg50-7/LMR400
Medium Pressure: 2500V
Brand: Qianyou
Yangzhou Qianyou Electronics Co., Ltd. Specilized in producing kinds of RF connector with high quality and favorable price, such as N connector, F connector, SMA connector, BNC connector, TNC connector, etc.

Our company well saled in most areas of China, for more than 20 years has resulted in a great reputation from our customers.

We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

Welcome to establish a good business relationship.
