| Prod Model: |
MU12P/FJZ-D-B-BK |
| Installing Size: |
12mm (Other Size Is Available) |
| The Body Material: |
Plastic (Black or Silver) |
| Contact Material: |
Silver Plated Gold |
| Operation Type: |
Latching (or Momentary Type) |
| Electrical Life: |
More Than 200,000 Cycles |
| Mechanical Life: |
More Than 500,000cycles |
| The Head Shape: |
Flat, High |
| Contact Configuration: |
1no (Normally Open ) |
| Operation Travel: |
About 2.5mm |
| Product Name: |

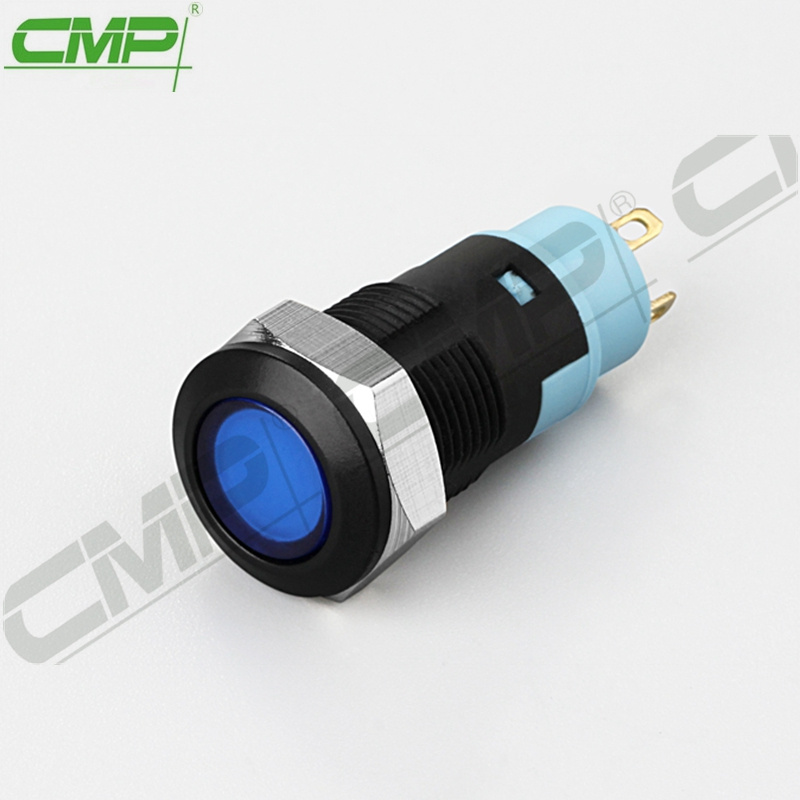

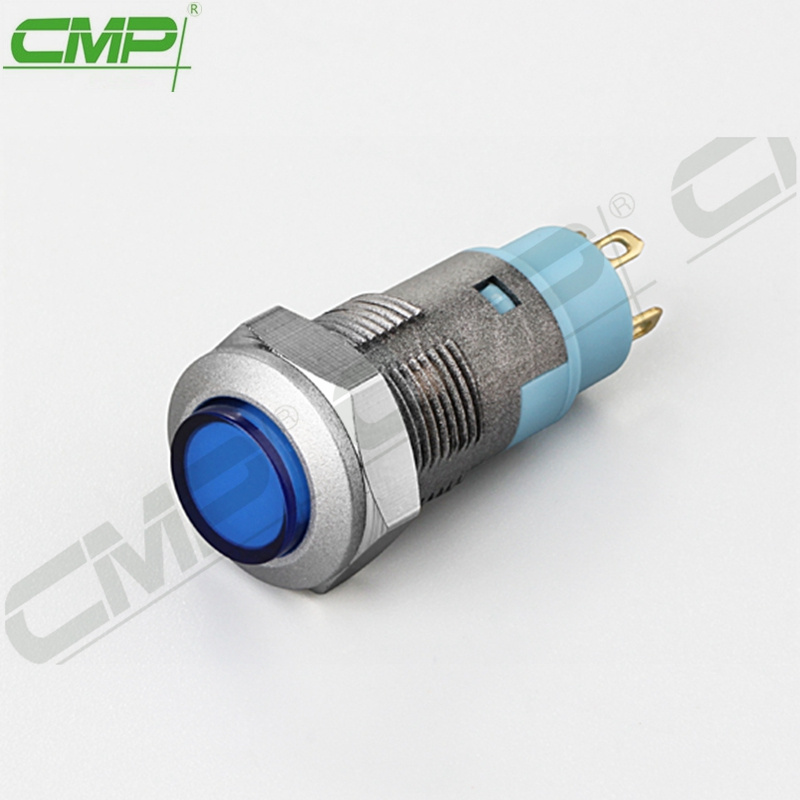

Plastic Switch with Blue Button |
| Type: |
Normal Open |
| Usage: |
Check Button |
| Structure: |
1no |
| Kind: |
Single Pole Single Throw Momentary Switch |
| Contact Type: |
Spst |
| Detection Method: |
Press |
| Brand: |
CMP |
| Certification: |
TUV |
Product Description
PRODUCT : 12mm plastic push button SWITCH with blue buttonCMP 12mm micro dust-proof Plastic push button switch with blue buttonMU12P/FJZ-D-B-BK: 12mm 1NO Switch with blue button1.Thread Diameter:12mm2.Operation type:Latching (also have momentary type)3.Housing material:plastic black/silver4.Terminal type:2 or 4 soldering pin (with LED is 4 pin)5.Head type:High head,Flat head with LED or not
6,Head color:red,green,white,blue,yellow,orange,black7,LED color:red,green,white,blue,yellow,orange,bi-color8.Contact configuration:1NO (spst switch)9,Switch rating: 2A/36V AC/DC10, Operating Temp:-20ºC~+55ºC11,IP65
| Common description for metal push button switch |
| Momentary | When you push switch and then move your finger, the actuator will back to the original position. |
| Latching | When you press the button, it keeps pressed until you press again |
| N.O. | Normally Open |
| N.C. | Normally Closed |
| SPST | Single Pole Single Throw |
| DPDT | Double Pole Double Throw |
| Silver plated gold | Wonderful material with silver plated gold
|
Please feel free to contact me for more pictures or details.We will reply within 24 hours.Contact us:
* We greatly appreciated your positive feedback and will do the same.
* Please kindly contact us before you decide to leave any neutral or negative feedback.
* We will try our utmost to help you solve the problem.
Companies always adhere to the "user first, quality first, reputation first" purpose, adhere to the "people-oriented strict management, meticulous, for the customer scale continuous improvement" quality policy.Certification:
Categories: We have all kinds of push button switch. If you want it, Please contact me. We will give you the satisfactory reply.
Packaging: packaging:
inner bubble box--- inner box---carton (or by your request.) 50pcs/box, 500pcs/carton
Shipping :
DHL, EMS, TNT, Fedex, UPS and others international express
FAQ:
1. What time you can delivery?
Small Order (1-3 Days) Big Order (5-7days)
2. What transportation you can usually choose ? EMS UPS DHL or by your request.
3. What is the packaging specification?
500pcs/CTN 31cm*29cm*24cmmomentary push button switch Push Button Switch 1NO momentary switch 12mm Wiring Switch 12mm 1NO push button switch Momentary Switch High Quality Switch on off Switch High Head Switch push switch SPST push button switch metal momentary switch button switch momentary push button pushbutton switch electrical switch push button stainless steel push button metal push button switch high flat push button switch push button control switch metal control switch 12mm power Switch power push button 12mm small Momentary Power Switch illuminated momentary Switch 4 pin LED reset push button green Plastic Switch mini red push button 12mm small latching switch Small Latching Switch push button Switch with indicator push button with indicator switch with indicator mini blue push button switch with blue button plastic switch with blue button push button with blue indicator push button with blue LED
