HEAT PUMPS - CREATING A MORE COMFORTABLE & SUSTAINALE BUILDING ENVIRONMENT
By installing a Withair® heat pump, you can reduce your energy consumption costs by up to 86% compared to direct electricity. Here we are using the nature's free and renewable energy sources, such as: outdoor air, geothernal energy, solar energy, that minimises your CO2 emissions and pollution free. You can also enjoy an environmentally friendly, renewable and free energy source. The high level of efficiency means that an investment in a heat pump pays for itself quickly and gives you a secure supply of heat, cool and hot water, suitable for different climate all over the world.
Withair® the W01R series heat pumps involve a range of 282 models, with heating and cooling capacity among 2.6kW and 3,200kW, which allow to create "customized" solution, matching the different installations requests.

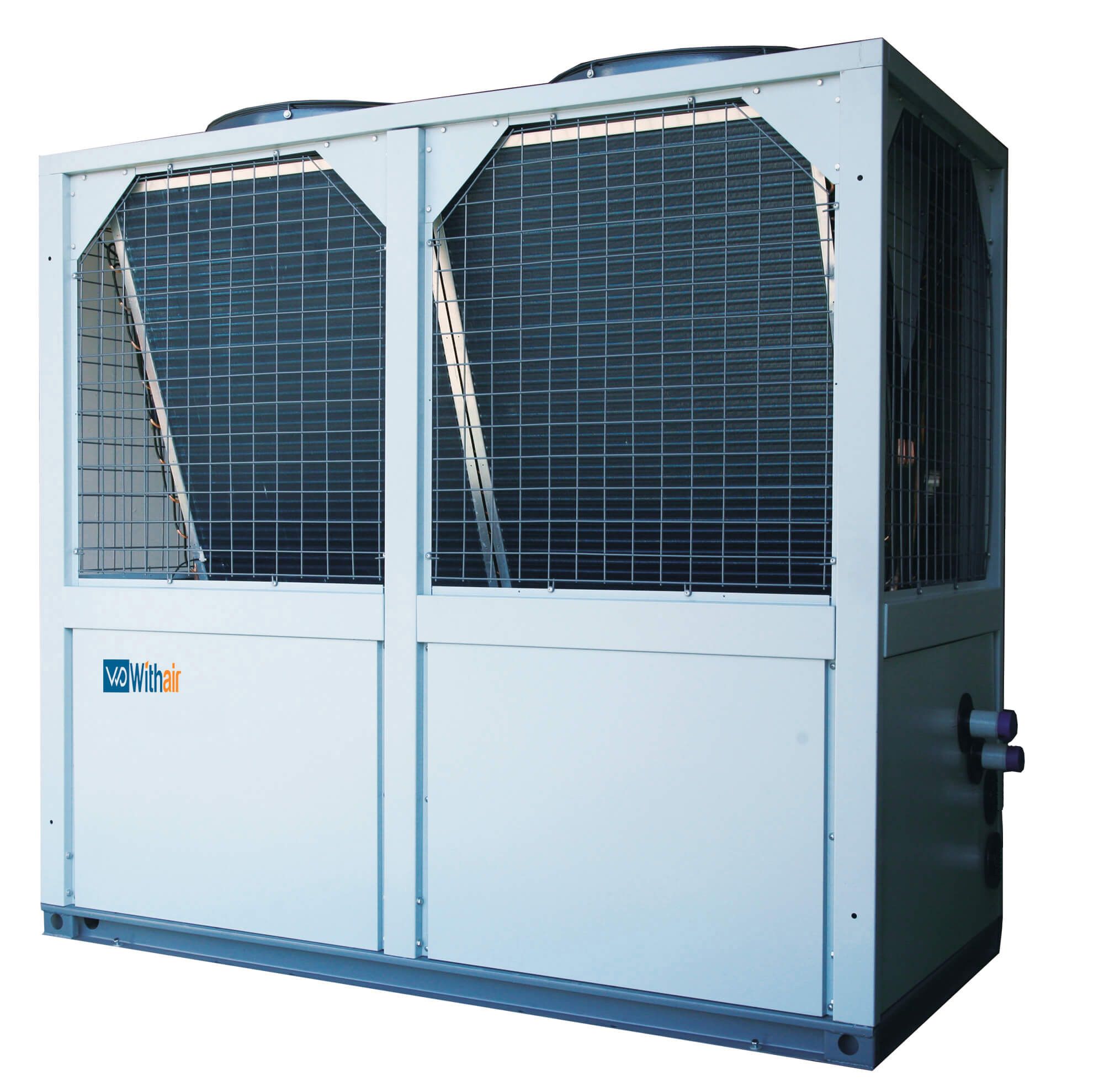

-- Product Description --
Withair® CO2 heat pump is a kind of carbon dioxide (R744) as refrigerant refrigeration unit, through the refrigeration cycle, from the nature of the medium, such as air, water and capture the low grade heat source, transfer and deliver to people production and living with the high quality of heat energy.Unlike the conventional heat pump, CO2 heat pump of 65-90 °C high temperature hot water can be produced, has the incomparable advantages such as energy saving, environmental protection.
Compressor suction from the evaporator of the low temperature low pressure gas CO2 refrigerant, carbon dioxide by doing work refrigerant compressed into high temperature and high pressure supercritical fluid, high temperature and high pressure supercritical fluid into the gas cooler and water exchange heat, cooling into a high pressure fluid in the gas cooler and release large amounts of heat, water absorption of the release quantity of heat and temperature rising.High pressure fluid after expansion valve throttling depressurization, through the role of the fan in the evaporator, absorbing heat and evaporate into low pressure gas in the ambient air, and inhaled compressor medium-pressure shrinkage, such repeated cycle, thus making hot water.
-- The Key Advantages Include --
* Excellent high temperature heating performance : the highest outlet water temperature 90ºC.
* Low temperature ambient condition heating: ultra-low temperature ambient condition (-30ºC) to make hot water.
* Wide range of application : working well at temperature -35ºC~43ºC.
* Safety and environmental protection :zero Emission ODP(Ozone depletion potential), Non - pollution,Non-toxic non-flammable.
* The independent design and manufacturing of high efficiency heat exchanger, strong energy saving and anti-freeing.
* High efficiency: the COP can be up to 4. 5, and the COP still above 2.0 even in low temperature.
* Wide applicable scope: ambient -35°C to 43°C in normal work, suitable for most of the cold area for making life or industrial hot water.
* Electronic expansion valve throttle control, refrigerant flow control precision at at the cold temperature.
* Air side heat exchanger(hydrophilic aluminum fin) with anti-ice system design, prevent heat exchanger to frost at the cold temperature.
* Multi self-protection functions, such as: high & low pressure, high temperature, water flow and antifreeze protection.
* Modular networking technology, the operation of individual modules can be coordinated according demand.
* Advanced & world-famous inverter compressor high-efficiency, low-noise and low-vibration operation.
* Applicable industries:
90ºC hot water: Electroplating industry and slaughter industry, chemical industry, textile industry;
70ºC hot water: Waste heat recovery, thermostatic cultivation, residential villas, nursing homes;
40~70ºC hot water: Tobacco drying, greenhouse heating, animal breeding, agricultural drying;
50ºC hot water: Hotels, sauna salon, health care, household,etc;
-- Technical Data --
(Direct heating type seires)
| Model No. | | W01R1-28CO2 | W01R1-36CO2 | W01R1-60CO2 | W01R1-73CO2 | W01R1-106CO2 | W01R1-135CO2 |
| Standard working condition | Heating capacity | kW | 27.5 | 36.7 | 55.1 | 72.8 | 106.5 | 134.1 |
| Input power | kW | 6.1 | 8.2 | 12.3 | 16.3 | 23.9 | 30.1 |
| COP | | 4.51 | 4.48 | 4.48 | 4.47 | 4.45 | 4.46 |
| Water flow | m3/h | 0.58 | 0.78 | 1.18 | 1.55 | 2.28 | 2.90 |
High temp.
hot water
outlet working condition | Heating capacity | kW | 22.5 | 34.1 | 46.3 | 68.7 | 95.1 | 123.5 |
| Input power | kW | 7.12 | 10.9 | 14.8 | 21.8 | 30.2 | 38.5 |
| COP | | 3.16 | 3.13 | 3.13 | 3.15 | 3.15 | 3.21 |
| Water flow | m3/h | 0.25 | 0.38 | 0.52 | 0.78 | 1.09 | 1.42 |
| Low temp. working condition | Heating capacity | kW | 17.3 | 21.4 | 34.8 | 41.5 | 62.2 | 81.2 |
| Input power | kW | 6.3 | 7.8 | 12.5 | 15.1 | 22.9 | 29.8 |
| COP | | 2.75 | 2.74 | 2.78 | 2.75 | 2.71 | 2.72 |
| Water flow | m3/h | 0.32 | 0.37 | 0.66 | 0.77 | 1.16 | 1.53 |
| Heating mode | | Circulating |
| Power supply | V/Ph/Hz | 380/3/50 |
| Piping size | DN | 20 | 20 | 25 | 25 | 32 | 32 |
| Water side heat exchanger | | Tube in tube |
| Air side heat exchanger | | Copper tube and aluminum fine |
| Compressor type | | Semi-hermetic reciprocating |
| Operation panel | | Color touch screen |
| Max water outlet temperature | ºC | 90 |
| Refrigerant | | R744 (CO2) |
| Design pressure | MPa | HP 15/ LP8 |
| Range of application | Water supply/return Temp. | ºC | 5~40 |
| Inlet water pressure | MPa | 0.05~0.4 |
| Outlet water Temp. | ºC | 55~90 |
| Max outlet water flow | m3/h | 6 |
| Ambient temperature | ºC | From -30ºC to 43ºC |
| Noise level | dB(A) | ≤56 | ≤59 | ≤62 | ≤67 | ≤70 | ≤70 |
| Weight | kg | 550 | 660 | 780 | 860 | 1180 | 1360 |
| Dimension | Length | mm | 1450 | 1600 | 1850 | 2050 | 2550 | 2200 |
| Width | mm | 950 | 950 | 1150 | 1150 | 1410 | 2100 |
| Height | mm | 1450 | 1500 | 1900 | 1950 | 2150 | 2000 |
Notes:
1. Standard working condition: ambient temperature DB20ºC/WB15ºC; inlet/outlet water temperature 15ºC/55ºC;
2. High temperature outlet water working condition: ambient temperature DB20ºC/WB15ºC; inlet/outlet water temperature 15ºC/90ºC.
3. Low temperature working condition: ambient temperature DB-10ºC, inlet/outlet water temperature 9ºC / 55ºC.
4. Units working ambient range from -30ºC to 45ºC..
5. All models, sizes, dimensions, and specifications are subject to change without prior notice, please refer to nameplates for the most accurate specifications.
(Cascade type seires)
| Model No. | | W01R1-60CO2 | W01R1-120CO2 | W01R1-160CO2 |
| Nominal condition | Heating capacity | kW | 80.6 | 120.8 | 160.2 |
| Input power | kW | 25.2 | 37.7 | 50 |
| COP | | 3.20 | 3.20 | 3.20 |
| Water flow | m3/h | 2.70 | 4.00 | 5.40 |
| Low temp. condition | Heating capacity | kW | 55.6 | 88.5 | 110.2 |
| Input power | kW | 21.4 | 34 | 42.3 |
| COP | | 2.60 | 2.60 | 2.61 |
| Water flow | m3/h | 2.00 | 3.00 | 4.00 |
| Ultra low temp. condition | Heating capacity | kW | 46.8 | 68.5 | 92.5 |
| Input power | kW | 20.3 | 29.7 | 40.2 |
| COP | | 2.31 | 2.31 | 2.30 |
| Water flow | m3/h | 1.30 | 2.10 | 2.60 |
| Heating mode | | Circulating |
| Power supply | V/Ph/Hz | 380/3/50 |
| Piping size | DN | 32 | 40 | 50 |
| Water side heat exchanger | | Tube in tube |
| Air side heat exchanger | | Copper tube and aluminum fine |
| Compressor type | | Semi-hermetic reciprocating/inverter |
| Operation panel | | Color touch screen |
| Auxiliary heating | | Electric heating |
| Max water flow | m3/h | 4 | 6 | 8 |
| Max water outlet temperature | ºC | 75 |
| Refrigerant | | R744 (CO2)/ R134A |
| Design pressure | MPa | HP10 / LP8 (R744) |
| Range of application | Water supply/return | ºC | 20~45, 30~55, 45~65 |
| Inlet water pressure | MPa | 0.05~0.4 |
| Ambient temperature | ºC | From -35ºC to 43ºC |
| Noise level | dB(A) | ≤68 | ≤70 | ≤72 |
| Weight | kg | 1500 | 2100 | 2800 |
| Dimension | Length | mm | 2250 | 2810 | 2250 |
| Width | mm | 1350 | 1410 | 2350 |
| Height | mm | 1950 | 2150 | 2250 |
Notes:
1. Standard working condition: ambient temperature DB7ºC/WB6ºC; inlet/outlet water temperature 40ºC/65ºC.
2. Low temperature working condition: ambient temperature -12ºC; inlet/outlet water temperature 40ºC/65ºC.
3. Low temperature working condition: ambient temperature DB-10ºC, inlet/outlet water temperature 9ºC / 55ºC.
4. Ultralow temperature working condition: ambient temperature -30ºC; inlet/outlet water temperature 40ºC/65ºC.
5. All models, sizes, dimensions, and specifications are subject to change without prior notice, please refer to nameplates for the most accurate specifications.
-- Quality Supply Chain System --
-- Withair® Production Lines --
-- Withair® Certificates and Awards --
-- Payment terms --
| Payment terms | T/T | EXW | 50% in advance, 50% before delivery |
| FOB |
| CFR |
| CIF |
| L/C | Total amount above USD100,000, we accept L/C at sight |
-- Delivery & Packaging --
* 100% test before deliverying products.
* Products catalogue, installation & operation manual will be sent together.
* Tracking number will be sent to customer as soon as we ship the products.
* Item shipped in 25 working days against payment depends on the quantity.
* Four steps of pakacges, plastic film, foam, carton and plywood for stable transporation.
* Ocean shipping, railway shipment and air transportation are acceptable according to customer demand.

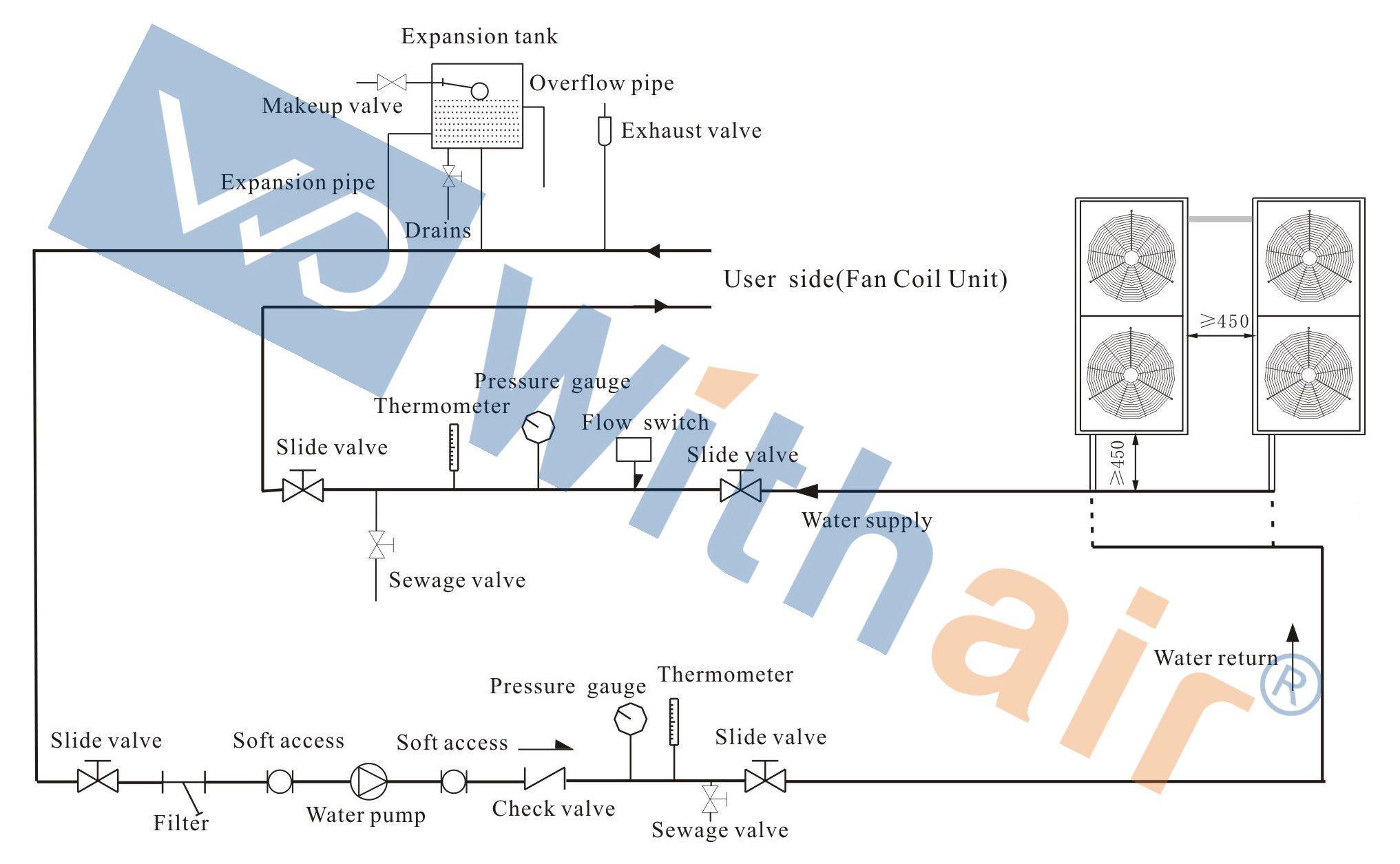

-- Installation Instruction --

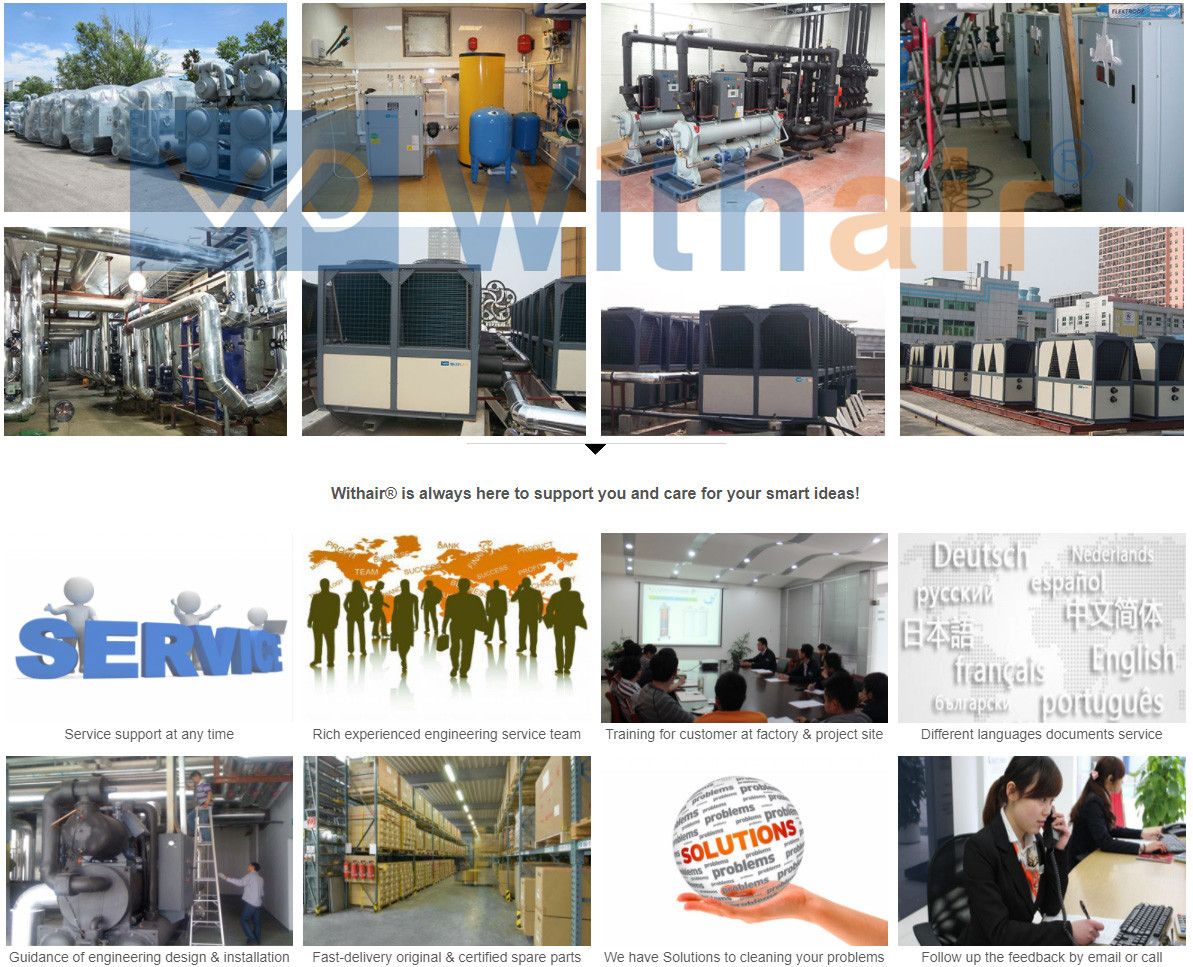

-- Case Studies & Quality Service --
Withair is a experienced partner in designing, installing small to large scale projects in the HVACR field of engineering systems for built environment of the further !
Withair Provides Global Installation Services:
We have developed close, long-term relationships with consultants, contractors, builders, and installers
around the world. Teams of technical personnel are often sent to assist these partners in the design and implentation of large projects, and in the preparation of tenders for a variety of joint ventures. Among our worldwide installations are major shopping centers, industrial parks, schools, office buildings, hospitals, restaurants, convention centers, showrooms, green houses, commercial and residential buildings, swimming pools, mobile communication centers, and special projects.
-- FAQ --
Q1. Can I have a sample order for Withair' products ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the delivery time ?
A: Sample needs 15 days, mass production time needs 2-3 weeks for order quantity more than one container
Q3. Do you have any MOQ limit for Withair' products ?
A: Low MOQ, 1pc for sample checking is available
Q4. What is Withair® certification ?
A: The certificate we have include: CE, RoHs,SGS, CE, UL, ISO9001. ISO18001, ISO14001, national Lab inspecton report, technology patents and so on.
Q5. Where are Withair' products installed till now ?
A: Currently Withair' products has been installed China, Europe, Africa, Middle-East, U.S.A, South American and so on.
Q6. Withair® Agent's & Distributor's Benefits ?
A: * Favorable prices & high quality products.
* New business opportunities & profits.
* Free of charge for brochures & technical data.
* Training for products of technical & marketing.
* Customer resources sharing in the territory.
* On-site support from sales & service team.
Q7. How to proceed an order for Withair' products ?
A: Firstly let us know your requirements or application.
Secondly We provide solution according to local weather conditions.
Thirdly customer confirms the samples and formal order.
Fourthly We arrange the production.
Q8. Is it OK to print my logo on Withair' products ?
A: Yes. legal OEM brand is accepted. Please inform us formally before our production and confirm the logo design firstly.
Q9: Do you offer guarantee for the products ?
A: Yes, we offer 3-5 years warranty to our products.
Q10: How to deal with the faulty ?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.3%.
Secondly, during the guarantee period, we will send spare parts with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
