Ground Source Heat Pump with 45~65º C Hot Water Output

-- About Withair® --

Withair® is a global provider of technical products and services for sustainability and resource management, specialize in heating & cooling system, air quality system and clean energy technology development and utilization,now it has three factories,manufacturing different kinds of products,and committed to providing the first-class products & system solutions for clients.

At Withair®, our aim is to support the growth, profit, and sustainability goals of our clients by delivering innovative solutions with n x value.we gain a deep understanding of our client's needs and business objectives first and foremost by gaining and leveraging our technical knowledge, innovative thinking, and vast equipment resources. from heating & cooling solutions and air quality management,to energy performance and efficiency determination,Withair® delivers the results.

Withair® products & solutions combine utmost efficiency with minimum energy consumption and strict respect of the environment, the idea proved to be a winning one in just a few years, Withair® became the leader in the sector !

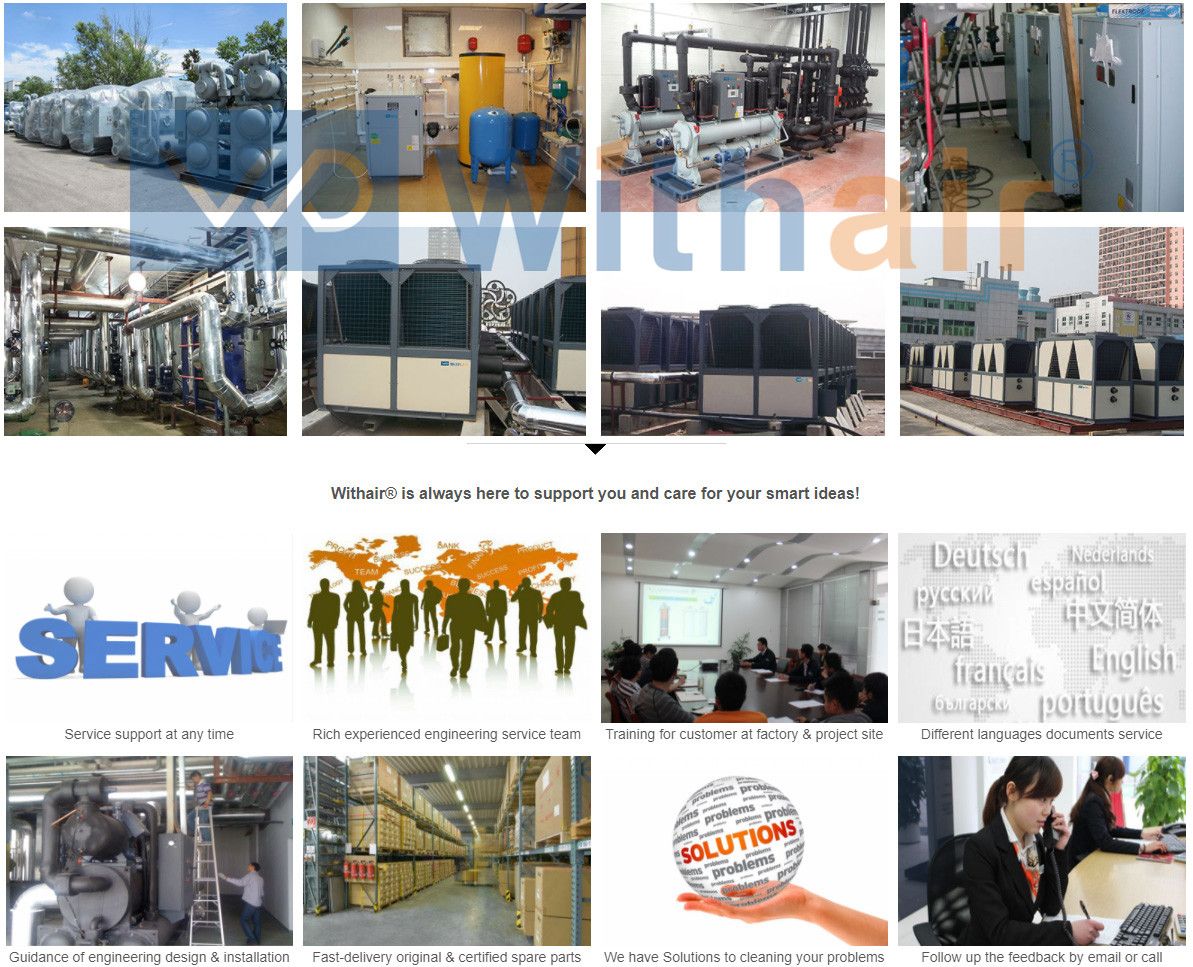

Withair® has highly effective professional team to service customers

Known for their professionalism and personal integrity, Withair's highly skilled engineers, technicians, electricians, stable manufacturing workers, strict quality controller, and quick-reaction & professional after-service staff utilize their multi-disciplinary expertise in the creation and production of every solution.

Close cooperation among Withair's design, production and service teams - who are located under one roof and linked by advanced computerized systems - enables the Company to supply the widest possible range of products - from single units to very large quantities - while assuring rapid delivery and competitive pricing.

Ground/Water Source Heat Pumps - Each Withair® system installed, one more step towards a greener tommorrow

As we know, only two metres below the surface, the ground temperature remains a steady 10-12ºC throughout the year. By installing a ground source heat pump, you could utilise this natural geothermal energy to provide a reliable and renewable cooling, heating and hot water system for your building.When the sun shines, the heat pump's borehole/ ground source heating coil gets a chance to recover and replenish. This also increases the heat pump's service life because it can rest during much of the year.

By installing Withair® a Geothermal Heat Pump, you could utilise this natural heat energy to provide a reliable and renewable heating and hot water system for your home, you can reduce costs by up to 80 % compared to direct electricity, depending on where you live, the living area, the choice of heat pump and whether you use a cooling function or not. All this while keeping noise levels exceptionally low.

Withair® the W01R series heat pumps involve a range of 282 models, with heating and cooling capacity among 2.6kW and 3,200kW, which allow to create "customized" solution, matching the different installations requests.


-- Product Description --

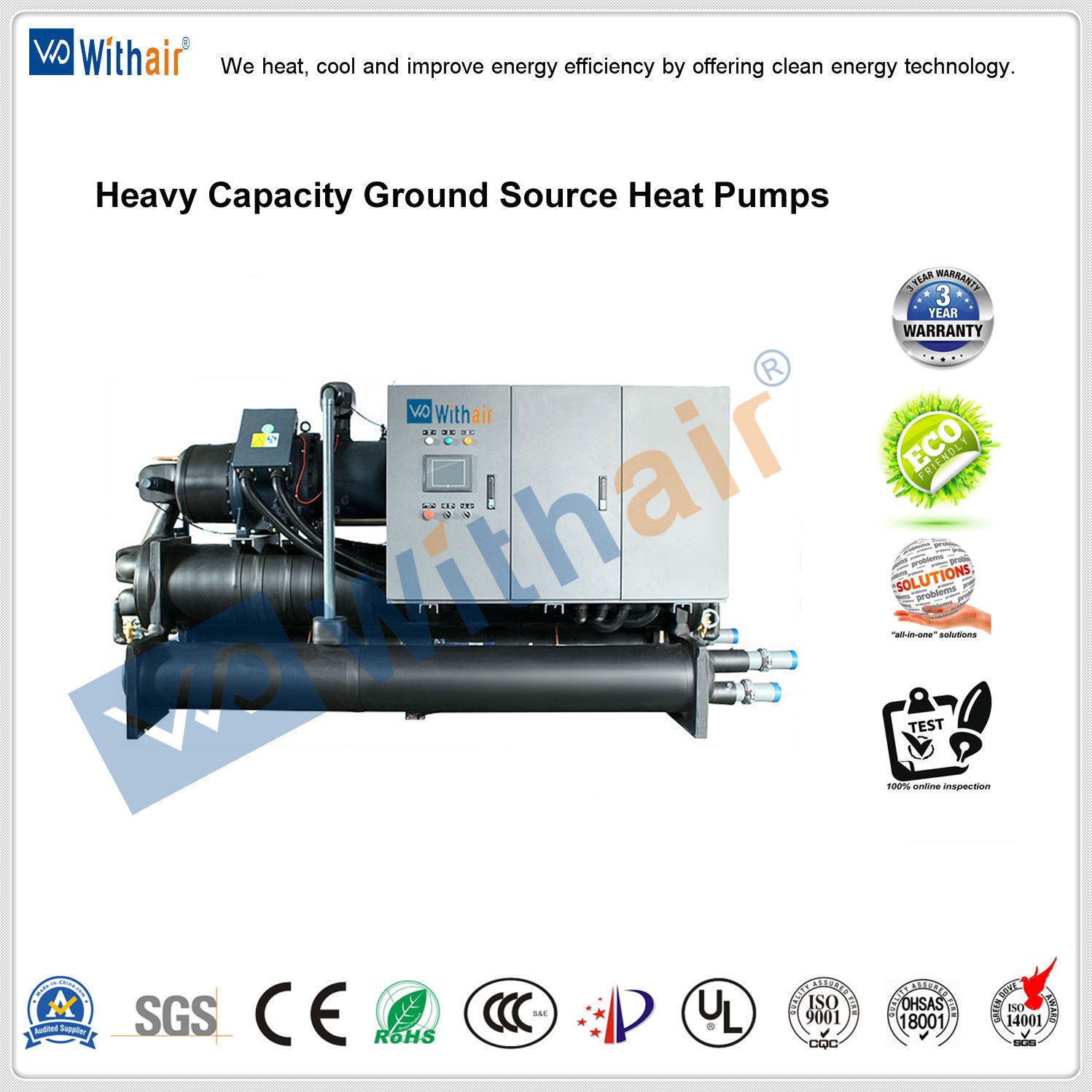

Withair® Ground Source Heat Pump with 45~65ºC Hot Water Output is widely used in plastic industry, electroplating industry, food processing,chemical industry and other process cooling applications of modern manufacturing industries which needs a lot of high temperature hot water.It is the mature products which are equipped with newly-developed semi-hermetic screw compressors and use dry type or flooded type evaporator, which result in lower noise and lower vibration, reliable long period operation, and installation feasibility on any floor of the building.The units are composed of a compressor(s), a condenser(s),a direct-expansion water cooler, a electronic expansion valve(s),and auxiliary and control equipment.Optimized system design and enhanced heat exchange efficiency makes the unit working best under both full load and partial load. Stepless capacities can be customized.The units can be operated with the utmost simplicity.

-- The Key Advantages Include --

Uses environmentally-friendly R134a refrigerant.

Capable of heating water range:45 ~ 65°C

Using for advanced semi-enclosed screw type compressor
The international advanced double-screw semi-enclosed compressor, through slide valve achieve mmultiple-stage or sectionless of adjustment,to adapt to changes in load of smooth and compressor built-in efficient oil separator, the rate can reach 99.7%,using differential injection,no pump, oil, safe and reliable guarantee mechanism for the safe and stable operation, long service life.

Energy-saving
*  Unit adopts PLC control technology, according to user load demand changes through intelligent control, multilevel energy regulation in full or part of the unit that can reach the best energy efficiency, reduce the operating cost.
* Provide multilevel (0-25% to 50% &75% - 100%) and the energy level adjustment methods for your choice.

Intellectualized control, simple operation
* Unit adopts PLC control technology, "a key start" and automatic operation.
* In the man-machine interface screen English display, touch screen/LCD text interface for your option.
* Units with remote control functions: turbine control system with built-in WEB browser,users can pass on any computer through internet in the remote monitoring and control unit can operation conditions and parameters of the work unit, the query of the unit.

Protection function origin
* Units provided the refrigeration system, electrical system and the water system of the complete protection function, ensure its safe operation.
* Unit Settings: unit of power of inverse phase), (high/low refrigeration system protection, oil is too low to high temperature, vent protection system to protect and water flow protection, antifreeze protection safety protection function, guarantee the safe and stable operation of the mechanism.

Heat recovery function
* Units can be based on user needs, increase the heat recovery function, at the same time in refrigeration heat side will recycle waste heat utilization,and use side and heat side, improved the two-way unit running condition, improve the efficiency of the unit, the unit greatly reduce the operation cost.
* Partial heat recovery and total heat recovery.

Advanced design, superior performance of high-efficiency heat exchanger
* Shell and tube evaporator within the evaporator using the latest threaded efficient heat exchange tube and tube with high heat efficiency,combined with poor casing baffle slabs of chilled water flow and circuitous increased turbulence effect, make the evaporator heat transfer coefficient has been greatly improved,and the latest flame retardant, use shell heat preservation material, energy loss and ensure the good performance of refrigeration unit.


-- Technical Data --

Twin compressors system

Fourfold compressors system

Ground Source Heat Pump with 65ºC Hot Water Output
Single compressor system
