Ground/Water Source Heat Pumps

-- About Withair® --

Withair® is a global provider of technical products and services for sustainability and resource management, specialize in heating & cooling system, air quality system and clean energy technology development and utilization,now it has three factories,manufacturing different kinds of products,and committed to providing the first-class products & system solutions for clients.

At Withair®, our aim is to support the growth, profit, and sustainability goals of our clients by delivering innovative solutions with n x value.we gain a deep understanding of our client's needs and business objectives first and foremost by gaining and leveraging our technical knowledge, innovative thinking, and vast equipment resources. from heating & cooling solutions and air quality management,to energy performance and efficiency determination,Withair® delivers the results.

Withair® products & solutions combine utmost efficiency with minimum energy consumption and strict respect of the environment, the idea proved to be a winning one in just a few years, Withair® became the leader in the sector !

Withair® has highly effective professional team to service customers

Known for their professionalism and personal integrity, Withair's highly skilled engineers, technicians, electricians, stable manufacturing workers, strict quality controller, and quick-reaction & professional after-service staff utilize their multi-disciplinary expertise in the creation and production of every solution.

Close cooperation among Withair's design, production and service teams - who are located under one roof and linked by advanced computerized systems - enables the Company to supply the widest possible range of products - from single units to very large quantities - while assuring rapid delivery and competitive pricing.

Ground/Water Source Heat Pumps - Each Withair® system installed, one more step towards a greener tommorrow

As we know, only two metres below the surface, the ground temperature remains a steady 10-12ºC throughout the year. By installing a ground source heat pump, you could utilise this natural geothermal energy to provide a reliable and renewable cooling, heating and hot water system for your building.When the sun shines, the heat pump's borehole/ ground source heating coil gets a chance to recover and replenish. This also increases the heat pump's service life because it can rest during much of the year.

By installing Withair® a Geothermal Heat Pump, you could utilise this natural heat energy to provide a reliable and renewable heating and hot water system for your home, you can reduce costs by up to 80 % compared to direct electricity, depending on where you live, the living area, the choice of heat pump and whether you use a cooling function or not. All this while keeping noise levels exceptionally low.

Withair® the W01R series heat pumps involve a range of 282 models, with heating and cooling capacity among 2.6kW and 3,200kW, which allow to create "customized" solution, matching the different installations requests.

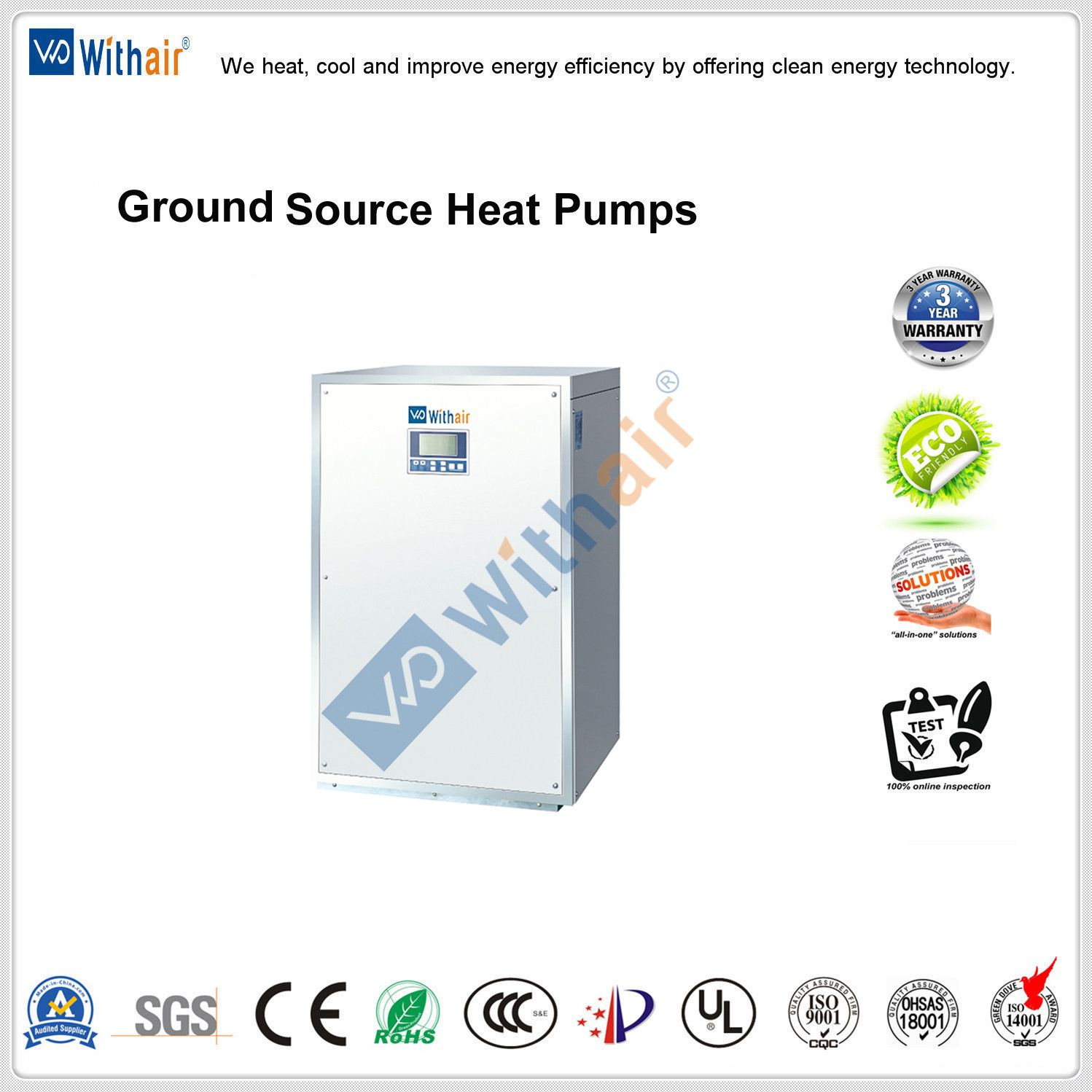

-- Product Description --

Withair® offer water-to-water heat pump from 2 to 40+ tons.

Withair® Water to Water Source Heat Pumps shall consist of high-efficiency rotary & scroll compressors and shall have dual independent refrigeration circuits and designed to operate, and contains a source-side water-to-refrigerant heat exchanger, and a load-side water-to-refrigerant heat exchanger.The source for the water-to-water heat pump is typically connected to a boiler/cooling tower, or a ground-source loop system. During the refrigeration cycle, heat is transferred from the source-side heat exchanger to the load-side heat exchanger, or vice versa.The load-side heat exchanger provides conditioned fluid (hot or cold) to a mechanical device such as radiant systems, hydronic fan coils or fresh air ventilation systems.

Withair® Water to Water Source Heat Pumps are available as heating only, cooling only,heating and cooling or heating and cooling with domestic hot water units, making them ideal for a variety of applications including geothermal and boiler. These units provide high efficiencies with precise metering of refrigerant flow under all expected operating conditions, and offer efficient, standard design features as well as additional value options to suit a building owner's needs.

The water-to-water heat pump may be applied in a boiler/cooling tower setting, in a geothermal closed or open loop application, or in a hybrid application. All units accommodate service access to the controls, and other major components to contribute to greater serviceability and maintainability of the unit.

Each unit is verified for total unit performance before shipping to insure quality standards are inherent in every unit.

Withair® Water to Water Source Heat Pumps can take low temperature heat and upgrade it to a higher, more useful temperature. If this heat comes from an ambient source, for example outside air or the ground, the use of a heat pump can result in savings in fossil fuel consumption and thus a reduction in the emission of greenhouse gases and other pollutants.

-- The Key Advantages Include --

* ECO friendly refrigerant R410A, R407C.

* Heating only, cooling only or heating and cooling models.

* Flexible configurations with top or side piping and  front or side control box.

* Large panels for accessibility to compressor and controls sections.

* Plate type, coaxial tube-in-tube or shell and tube heat exchanger for high performance, reliability, and resistance to freezing.

* Multi-function: provide cooling only, cooling with hot water, heating only and heating with hot water, hot water, total and partial heat recovery for domestic hot water heating.

* Unit choose efficient rotary or scroll compressor, the use of high efficient heat exchanger technology processing, condensation temperature greatly reduced, the COP is more 4.6 and higher 70% than air cooled heat pump.

* When multiple units were combined into a system, because each unit can be individually ON/OFF; wide range of system energy regulation and running costs fell by more 40%.

* Unique compressor anti-vibration technology (patent ZL 2020 2 0246589.1) and sound attenuation material ensure ultra-quiet performance.

* Multi-system design and wear-and-tear management technology reduces electric impulse and extend service life.

* Modular network function: unit control system is equipped with the network communication, the user can control operating units quantity according to the actual use load, make user side water system utilities, to realize the automatic device management automation and energy management.

* Smart microchip control and large LCD user interface, capable of one-key startup.

* Automatic intelligent reset. Unit shall automatically restart 5 minutes after shutdown if the fault has cleared. Should a fault occur 3 times sequentially, then lockout will occur.

* Humanized design, widened application scope: the unit's temperature settings for room, hot water, water intake/outlet, freeze protection, and compressor exhaust can be adjusted on-site according to environmental conditions.

* Communication adapter connection the unit to BMS(Building Management System) is an optional accessory, please get in touch with us or our distributor if required.

* Unit with multi-protection to guarantee the unit running stability and security, such as: high/low voltage, low oil level protection, exhaust temperature, antifreeze, power lack/reverse phase,water system cut off. operating condition with small change range stable operation, safe, reliable and long service life.

* Easy installation,  simple water piping system configuration, you can make design partition and divide second installation.


-- Technical Data --

Notes:
1.These parameter were tested according to pure water,not include anti-freezing liquid and water pump power;
2.Units can realize 1~24 unit's modular connection and control energy-regulation automatically.
3.All models, sizes, dimensions, and specifications are subject to change without prior notice, please refer to nameplates for the most accurate specifications.

Ground Loop Working Condition:
1. Cooling standard working condition: User side inlet/outlet water temperature 12ºC/7ºC; Source side inlet/outlet water temperature 25ºC/30ºC;
2. Heating standard working condition: User side inlet/outlet water temperature 40ºC/45ºC; Source side inlet water temperature 10ºC;


Ground Water Working Condition:
1. Cooling standard working condition: User side inlet/outlet water temperature 12ºC/7ºC; Source side inlet/outlet water temperature 18ºC/29ºC;
2. Heating standard working condition: User side inlet/outlet water temperature 40ºC/45ºC; Source side inlet water temperature 15ºC;

Water Lopp Working Condition:
1. Cooling standard working condition: User side inlet/outlet water temperature 12ºC/7ºC; Source side inlet/outlet water temperature 30ºC/35ºC;
2. Heating standard working condition: User side inlet/outlet water temperature 40ºC/45ºC; Source side inlet water temperature 20ºC;

-- Quality Supply Chain System --

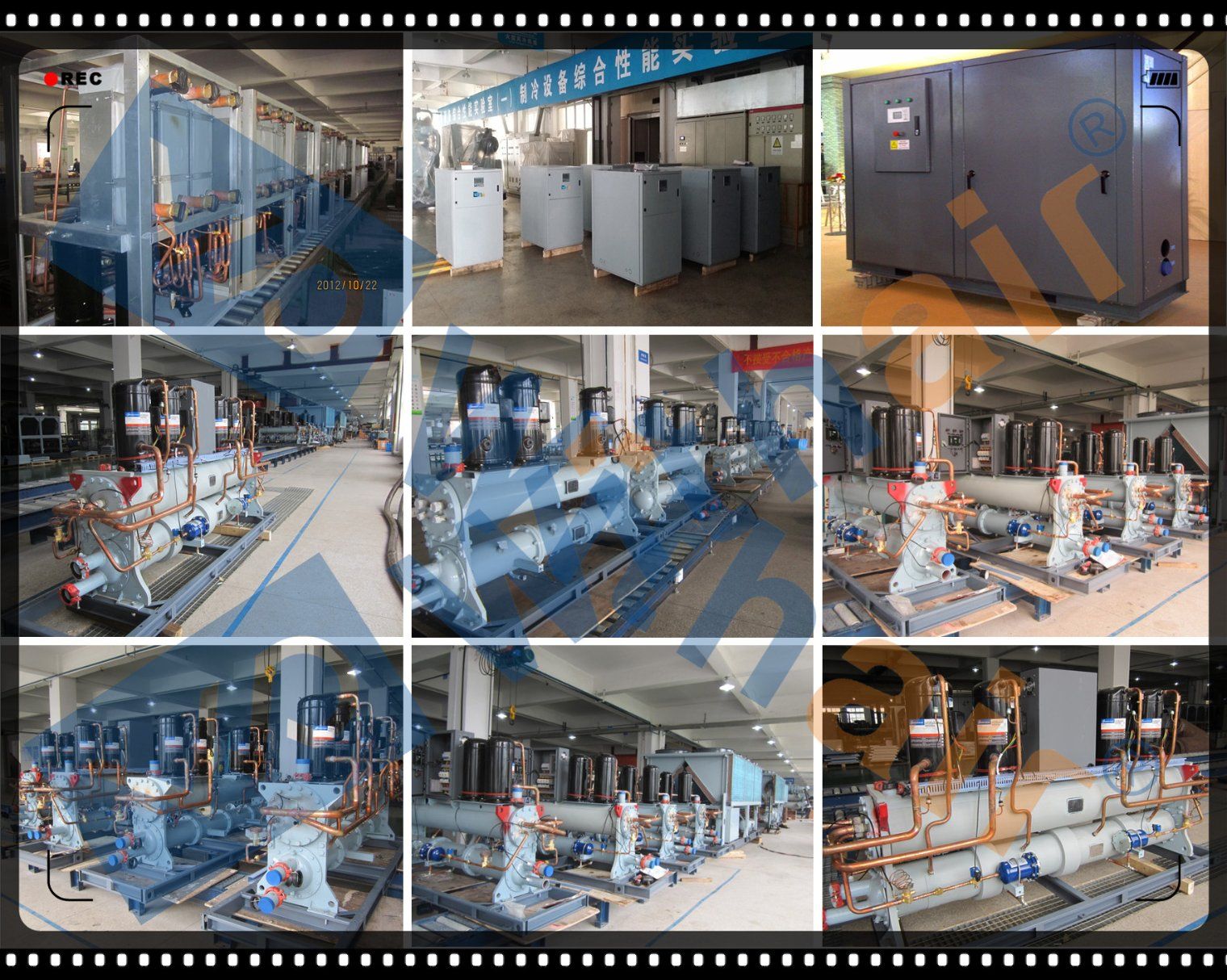

-- Withair® Production Lines --




-- Withair® Certificates and Awards --




-- Payment terms --

-- Delivery & Packaging --

*  100% test before deliverying products.
*  Products catalogue, installation & operation manual will be sent together.
*  Tracking number will be sent to customer as soon as we ship the products.
*  Item shipped in 25 working days against payment depends on the quantity.
*  Four steps of pakacges, plastic film, foam, carton and plywood for stable transporation.
*  Ocean shipping, railway shipment and air transportation are acceptable according to customer demand.

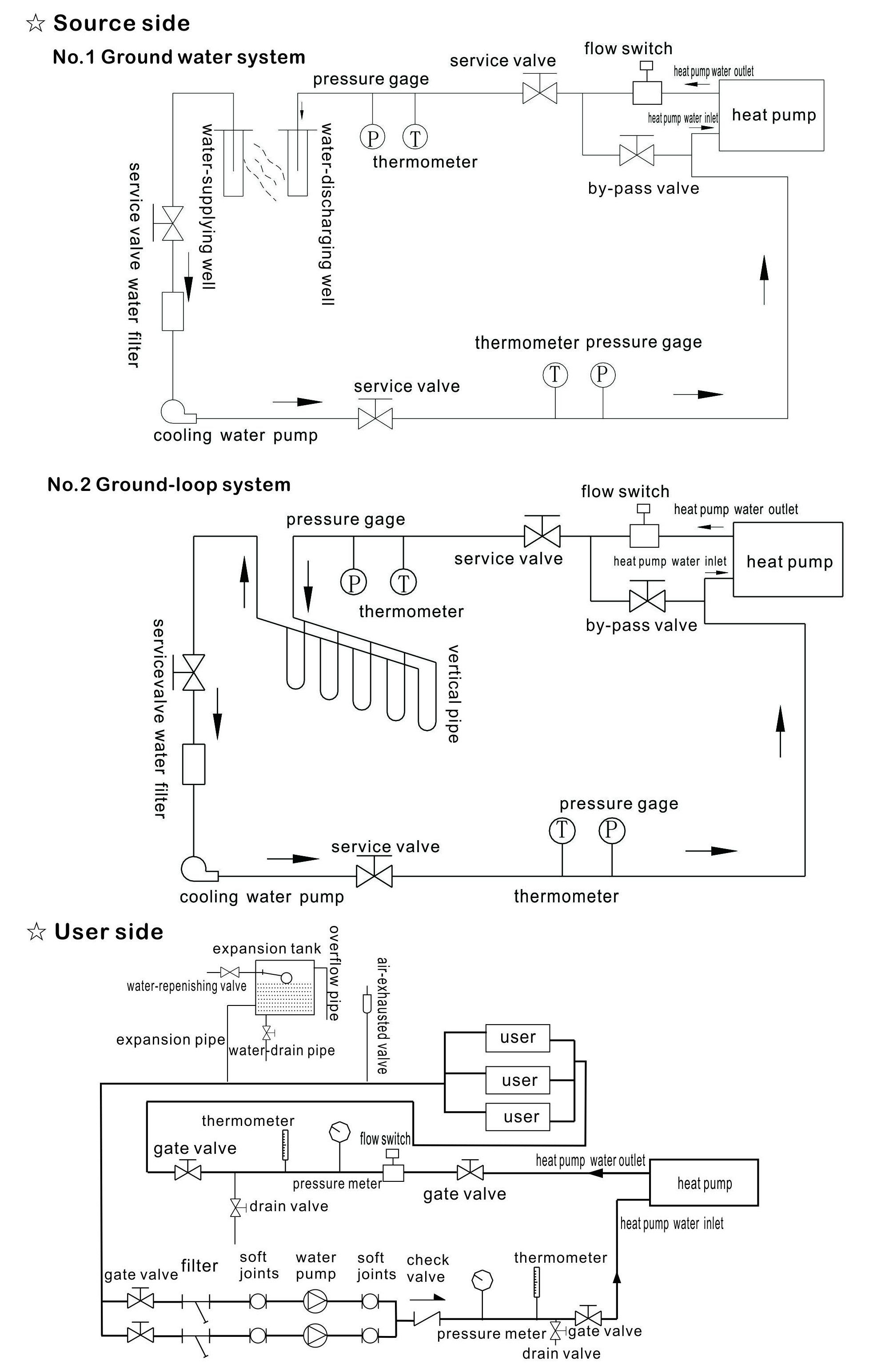

-- Installation Instruction --

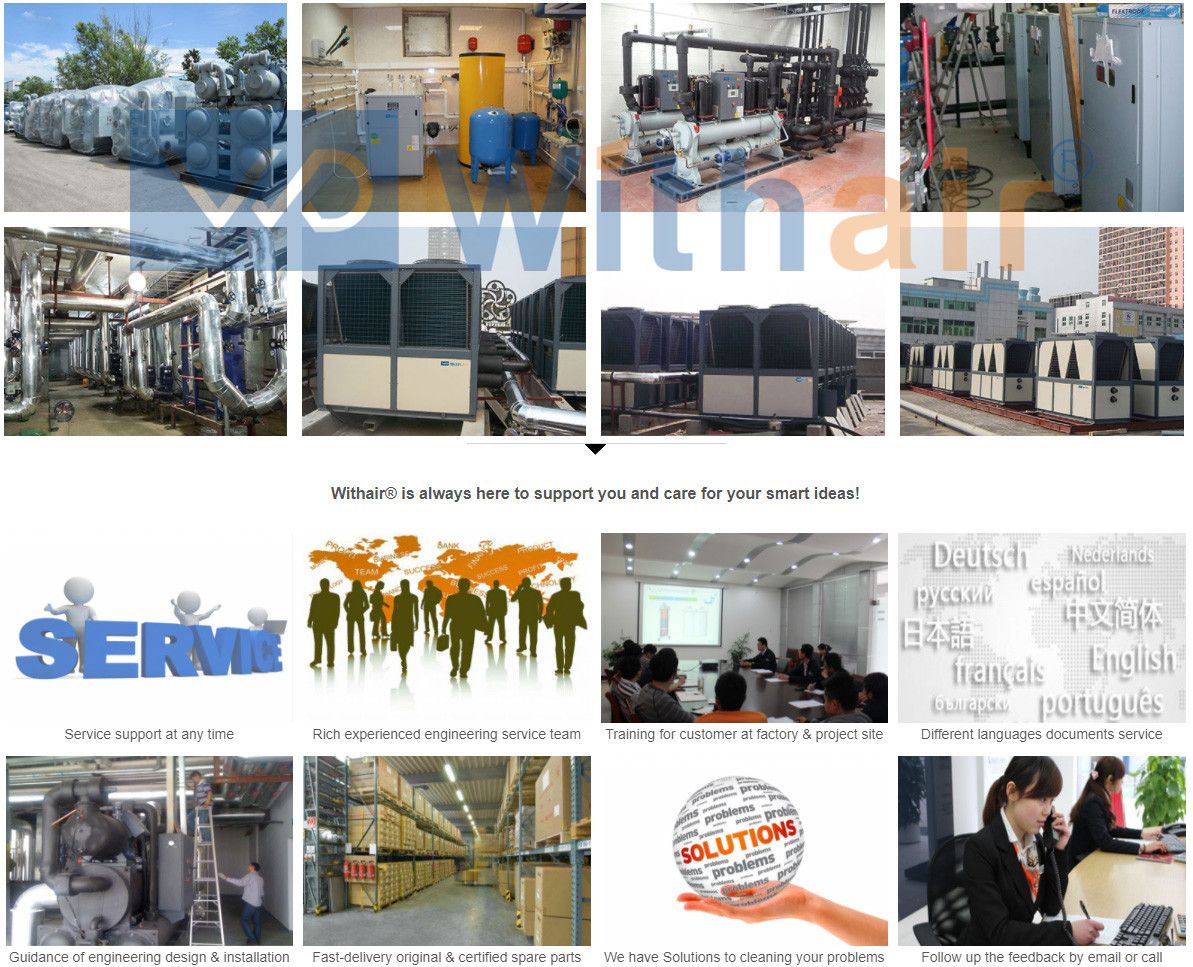

-- Case Studies & Quality Service --

Withair is a experienced partner in designing, installing small to large scale projects in the HVACR field of engineering systems for built environment of the further !

Withair Provides Global Installation Services:
We have developed close, long-term relationships with consultants, contractors, builders, and installers
around the world. Teams of technical personnel are often sent to assist these partners in the design and implentation of large projects, and in the preparation of tenders for a variety of joint ventures. Among our worldwide installations are major shopping centers, industrial parks, schools, office buildings, hospitals, restaurants, convention centers, showrooms, green houses, commercial and residential buildings, swimming pools, mobile communication centers, and special projects.




-- FAQ --

Q1. Can I have a sample order for Withair' products ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the delivery time ?
A: Sample needs 15 days, mass production time needs 2-3 weeks for order quantity more than one container

Q3. Do you have any MOQ limit for Withair' products ?
A: Low MOQ, 1pc for sample checking is available

Q4. What is Withair® certification ?
A:  The certificate we have include: CE, RoHs,SGS, CE, UL, ISO9001. ISO18001, ISO14001, national Lab inspecton report, technology patents and so on.

Q5. Where are Withair' products installed till now ?
A: Currently Withair' products has been installed China, Europe, Africa, Middle-East, U.S.A, South American and so on.

Q6. Withair® Agent's & Distributor's Benefits ?
A: *  Favorable prices & high quality products.
    *  New business opportunities & profits.
    *  Free of charge for brochures & technical data.
    *  Training for products of technical & marketing.
    *  Customer resources sharing in the territory.
    *  On-site support from sales & service team.

Q7. How to proceed an order for Withair' products ?
A: Firstly let us know your requirements or application.
Secondly We provide solution according to local weather conditions.
Thirdly customer confirms the samples and formal order.
Fourthly We arrange the production.

Q8. Is it OK to print my logo on Withair' products ?
A: Yes. legal OEM brand is accepted. Please inform us formally before our production and confirm the logo design firstly.

Q9: Do you offer guarantee for the products ?
A: Yes, we offer 3-5 years warranty to our products.

Q10: How to deal with the faulty ?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.3%.
Secondly, during the guarantee period, we will send spare parts with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
