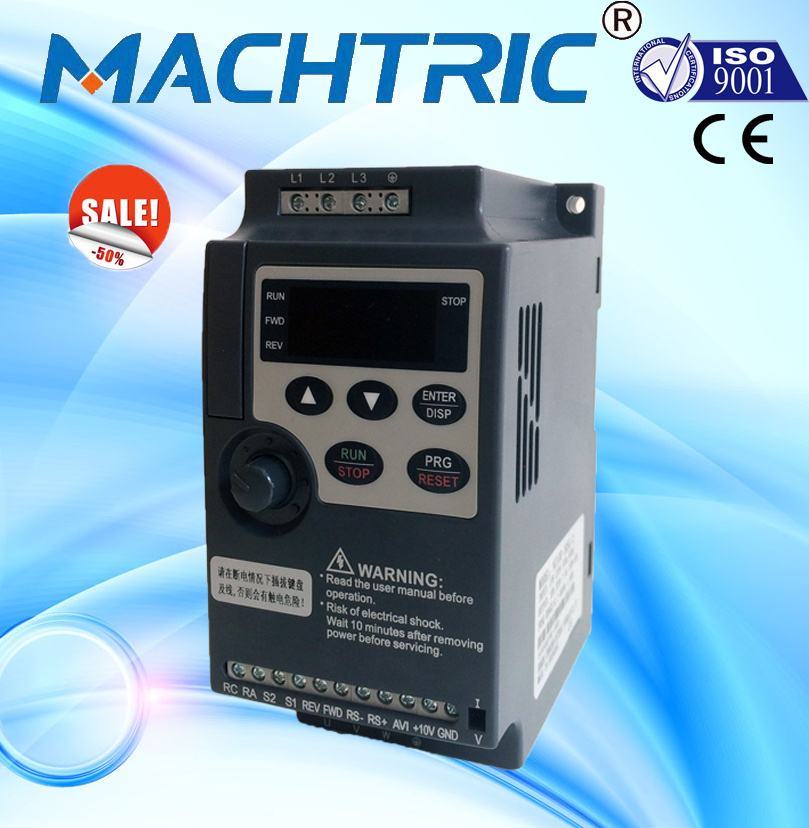

Compact Type VFD, Frequency Inverter for Cheap Price
| Price: |
US $ 35-176/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
1. Small appearance and light.
2. Installation mode:wall-mounted or standard 35MM rail mounting.
3. voltage :220V, 1phase 0.4~2.2kw 380V, 3phase 0.75~2.2kw.
4. similar as Detla VFD-L series.Technical Specifications: | Ambient Temperature | -10ºC to 40ºC(non-freezing) |
| Ambient Humidity | Max. 95% (non-condensing) |
| Altitude | Lower than 1000m |
| Vibration | Max.0.5G |
| Cooling Mode | Forced air cooling |
Protective
Structure | IP 20 |
| Mode | Wall-mounted or standard 35MM rail mounting |
| Rated voltage, Frequency |
One-phase/Three-phase AC 220V 50/60Hz |
| Voltage Range |
220V: 170~240V |
| Output Voltage Range | 220V: 0~220V |
| Output Frequency Range | 0.10~400.00Hz |
| Indication | Operating status/Alarm definition/
interactive guidance: eg , frequency
setting, the output frequency/ current,
DC bus voltage, the temperature
and so on. |
| Control method | V/F control, Space vector control. |
Output Frequency
Range | 0.10Hz~400.00Hz |
Frequency Setting
Resolution | Digital input: 0.01Hz, analog input: 0.1% of
maximum output frequency |
Output Frequency
Accuracy | 0.01Hz |
| V/F Control | Setting V/F curve to satisfy various load
Requirements. |
Torque
Control | Auto increase: auto raise torque
by loading Condition; Manual
increase: enable to set
0.0~20.0% of raising torque. |
Multifunctional
Input Terminal | Four multi-function input terminals,
realizing functions including fifteen
section speed control, Program
running, four-section acceleration/
deceleration speed switch,
UP/DOWN function and emergency
stop and other functions |
Multifunctional
Output Terminal | 1 multi-function output terminals for
displaying of running, zero speed,
counter, external abnormity, program
operation and other nformation and
warnings. |
| Acceleration/ deceleration Time Setting | 0~999.9s acceleration/deceleration
time can be set individually. |

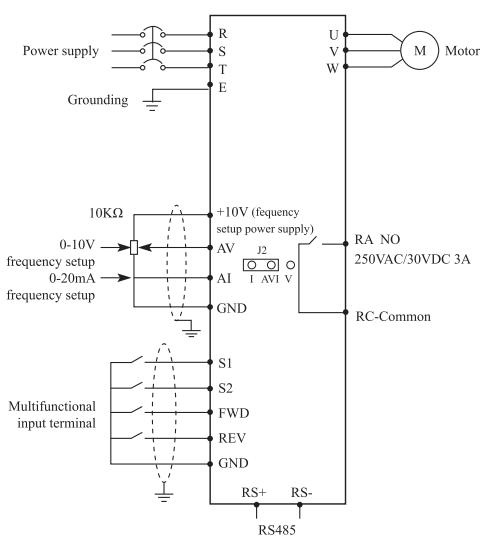

Typical Wiring Diagram:

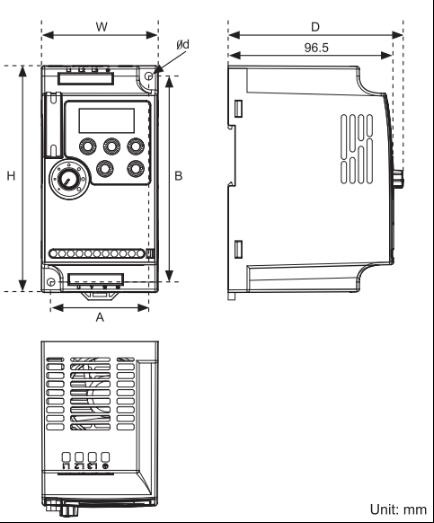

Inverter outline dimension drawings:
| Model | W | H | D | |
| S800-2T0.4GE | 68 | 132 | 102 | |
| S800-2T0.75GE |
| S800-2T1.5GE |
Package:export standard package.
Delivery time: 7 weekdays after get the payment.
Delivery mode: Ocean shipping, Air transport, Express delivery/( Choose by the customer).
Payment terms: L/C/ T/T / Western Union / MoneyGram. About us:
Our products have been broadly applied in Textile, Packing, Plastic, Ceramic, Traffic, Building, Metallurgy, Chemical industry, Light industry, Military industry etc various industry equipment.

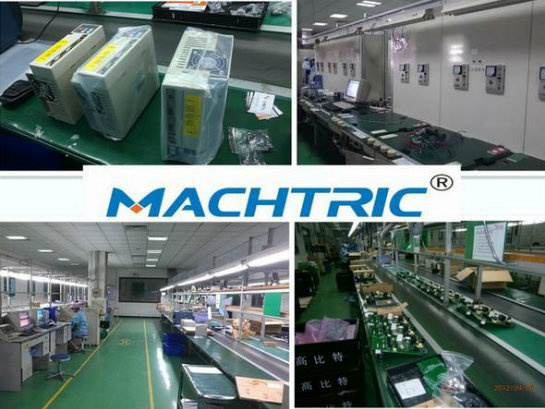

Factory:
We also have other frequency inverter. If you have any questions, please don't hesitate contact with me.WendyTEL:86-18850877082
| Prod Model: |
S800E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Frequency Range: |
0~400Hz |
| Power Range: |
220V(0.2~2.2kw)380V(0.75~2.2kw) |
| RS485: |
Standard RS485 Communication Function |
| Protection: |
Overload |
| Warranty: |
12 Months |
| Brand Name: |
Machtric |
| Color: |
OEM |
| Display: |
LED |
| Size: |
Small Appearance |
| Certificate: |
Ce/ISO9001 |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Current |
| Brand: |
Machtric |
