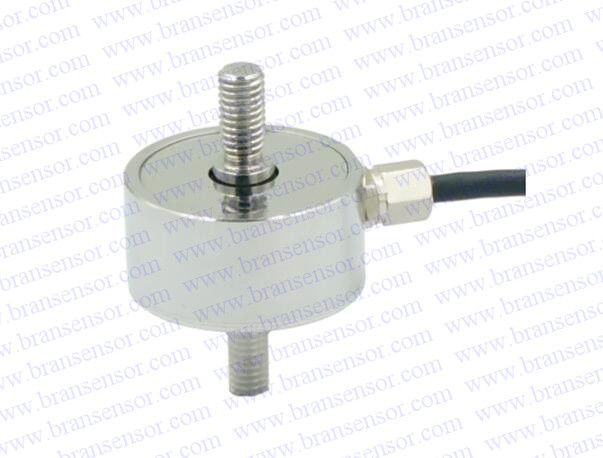

Compression & Tension Dynamometer (B303-B)
Price: |
US $ 30-40/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Prod Model: |
B303-B |
Size: |

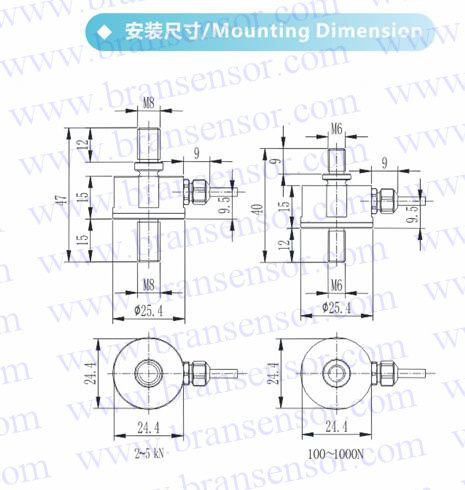

37*25.4mm(H*D) |
Capacity: |
50,100, 200, 300n 500,1000,2000n |
Accuracy: |
0.05% |
Load Direction: |
Tension and Compression |
Pattern: |
Tension and Compression |
Out-Wire: |
5 Wires |
Feature: |
High Accuracy |
Production Process: |
Stain Gauge |
Product Description
Brans's miniature load cells/force sensors are designed to fit into systems with limited space or tight clearances. The Model 303-B series are the miniature load cells designed to measure both tension and compression load forces from 1 kg up to 50kg or 10 N up to 50,0N, with high accuracies of 0.5 % full scale. The all-welded, stainless steel construction is designed to eliminate or reduce to a minimum the effect of off-axis loads.
This design can be completely welded for underwater applications. If you need special modifications or a complete custom design to meet your unique requirements, please feel free to let us know.
key Points- Miniature load cell,low profile,small deflection
- Made of stainless steel
- Tension and compression application
- Mainly used for automotive press fit, automated assembly, 3C products testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing and control system
- High dynamic response frequency
DatasheetNumber | Specifications | Technique |
1 | Capacity | 50,100, 200, 300N 500,1000,2000N |
2 | Rated output | 1.0±10%mV/V |
3 | Zero balance | ±0.05 mV/V |
4 | Non‐linearity | 0.5%F.S. |
5 | Hysteresis | 0.2%F.S. |
6 | Repeatability | 0.2%F.S. |
7 | Creep(30min) | 0.1%F.S. |
8 | Temp.effect on output | 0.05%F.S./10ºC |
9 | Temp.effect on zero | 0.05%F.S./10ºC |
10 | Input impedance | 800~1100Ω |
11 | Output impedance | 800~1100Ω |
12 | Insulation | ≥5000MΩ/100VDC |
13 | Recommended excitation | 5~10V |
14 | Maximum excitation | 15V |
15 | Compensated temp range | ‐10~60ºC |
16 | Operation temp range | ‐20~80ºC |
17 | Safe overload | 150%F.S. |
18 | Ultimate overload | 200%F.S. |
19 | Cable size | φ2×4000mm |
20 | Weight approx. | 0.1kg |
21 | Material | Stainless Steel |
22 | IP Class | IP66 |
Features
Miniature sizes ranging from 13 mm to 51mm in diameter and from 24mm to 39mm height
Load range measurements: 1kgs to 2T; 10 N to 20KN; or 2.2046 lb to 4409 lb
Stainless steel construction; All-welded option available for underwater applications
High accuracies of 0.1 % to 0.5 % full scale
