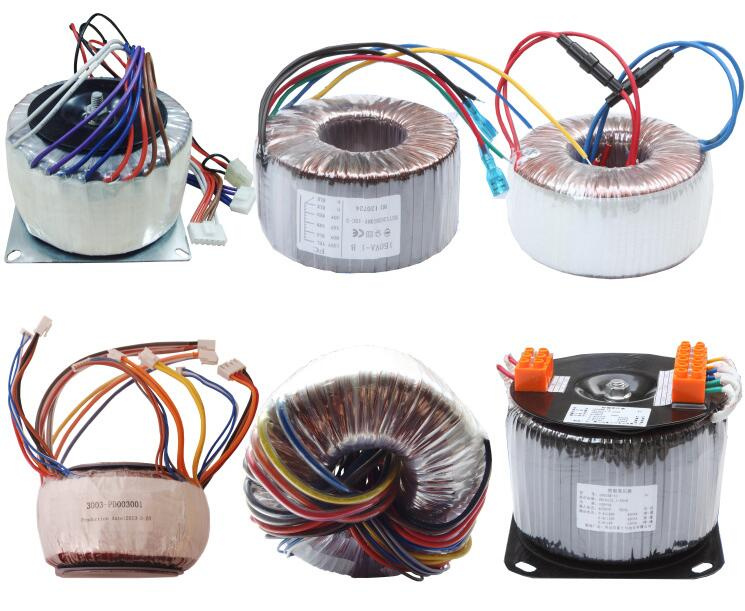

Copper Wire Toroidal Transformer for Power Supply

Copper Wire Toroidal Transformer for Power Supply
Price: US $ 0.3-0.5/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
1.  technical parameters.

Toroidal Transformer  I
PowerThermal FuseCurrent FuseDimension (mm)Approval Mark
TDW25VA135ºC 250V 2A250V  T  2A80*35CE UL TUV CQC
TDW30VA135ºC 250V 2A250V  T  2A83*35CE UL TUV CQC
TDW40VA135ºC 250V 2A250V  T  2A87*35CE UL TUV CQC
TDW50VA135ºC 250V 2A250V  T  2A93*34CE UL TUV CQC
TDW60VA135ºC 250V 2A250V  T  2A93*35CE UL TUV CQC
TDW80VA135ºC 250V 2A250V  T  2A102*35CE UL TUV CQC
TDW105VA135ºC 250V 2A250V  T  2A114*38CE UL TUV CQC
TDW120VA135ºC 250V 2A250V  T  2A113*41CE UL TUV CQC
TDW140VA135ºC 250V 2A250V  T  2A114*42CE UL TUV CQC
TDW150VA135ºC 250V 2A250V  T  2A117*43CE UL TUV CQC
TDW160VA135ºC 250V 5A250V  T  5A120*43CE UL TUV CQC
TDW180VA135ºC 250V 5A250V  T  5A125*42CE UL TUV CQC
TDW200VA135ºC 250V 5A250V  T  5A124*49CE UL TUV CQC
TDW220VA135ºC 250V 5A250V  T  5A127*50CE UL TUV CQC
TDW240VA135ºC 250V 5A250V  T  5A129*48CE UL TUV CQC
TDW250VA135ºC 250V 5A250V  T  5A130*52CE UL TUV CQC
TDW260VA135ºC 250V 5A250V  T  5A130*53CE UL TUV CQC
TDW280VA135ºC 250V 5A250V  T  5A138*45CE UL TUV CQC
TDW300VA135ºC 250V 5A250V  T  10A138*54CE UL TUV CQC
TDW320VA135ºC 250V 5A250V  T  10A138*54CE UL TUV CQC
TDW340VA135ºC 250V 5A250V  T  10A138*54CE UL TUV CQC
TDW360VA135ºC 250V 5A250V  T  10A142*55CE UL TUV CQC
TDW380VA135ºC 250V 5A250V  T  10A146*54CE UL TUV CQC
TDW400VA135ºC 250V 5A250V  T  10A148*56CE UL TUV CQC
TDW420VA135ºC 250V 5A250V  T  10A148*56CE UL TUV CQC
TDW440VA135ºC 250V 5A250V  T  10A148*60CE UL TUV CQC
TDW460VA135ºC 250V 5A250V  T  10A149*64CE UL TUV CQC
TDW480VA135ºC 250V 5A250V  T  10A153*59CE UL TUV CQC
TDW500VA135ºC 250V 5A250V  T  10A155*62CE UL TUV CQC
Toroidal Transformer
PowerDimension (mm)Efficiency %CurrentWeight
TDW20VA60*25>8210mA 1.200.45kgs
TDW30VA65*35>8410mA1.200.50kgs
TDW50VA70*40>8820mA1.151.30kgs
TDW100VA85*60>9030mA1.151.50kgs
TDW120VA90*75>9340mA1.102.00kgs
TDW200VA110*80>93100mA1.102.80kgs
TDW300VA120*80>94150mA1.083.50kgs
TDW500VA130*80>94150mA1.085.00kgs
TDW800VA140*85>94200mA1.086.50kgs
TDW1000VA140*85>95300mA1.058.50kgs
TDW1500VA160*90>95400mA1.0512.0kgs
TDW2000VA180*90>95400mA1.0515.0kgs
TDW4000VA220*95>95500mA1.0520.0kgs
TDW6000VA250*95>95500mA1.0525.0kgs

Minature Toroidal Transformer 2.5VA-15va:




Prod Model: 300
Application: Audio
Phase: Single
Coil: Core-type Transformer
Cooling Method: Dry-type Transformer
Winding Type: Separated Winding Transformer
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
