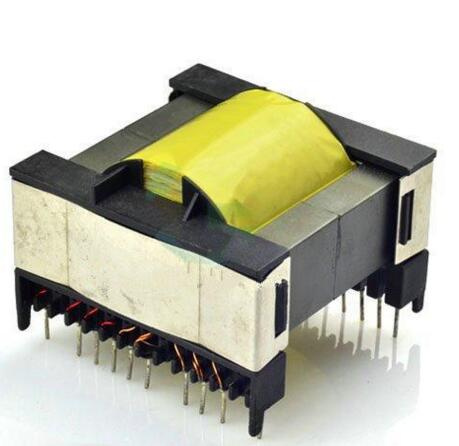

Ec28 Rectifier Transformer for Switching Power Supply

Application:	Audio
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Shape Of Coil:	Er

Product Description

Product Description


FEATURES:
-High Power
-Low Profile
-Inexpensive Type
-High Reliability
- Low price
- Cost-effective
- High impedance and low loss
-High Conversion Efficiency
-Easily Inserted into PCB
- RoHS compliance and UL
- Custom designs are welcome, Can specify special materials, the skeleton shape can be customized.

APPLICATION:
-DC/DC Converter Transformer
-Current Transformer
-Switching power supply, Adapter and UPS
-Computer products
-DVD
-LED power board
-LCD TV & Monitor Displays Power Boards
-Consumer Electric Products & Battery Charger, Printers
- Specially used in switching power supply and kinds of high-frequency circuit
- Plays a role in oscillating and separating

SPECIFICATIONS:
-Operating Temperature: -25° C to +60° C
-Storage Temperature: -25° C to +85° C
-Operating Humidity: 30 to 95%RH
-Storage Humidity: 30 to 95%RH

Reasons of our top-quality components help your business succeed:
-22 years of experience customizing and power transformers
-Your professional and reliable partner for various electronics
- Over 1000 buyers value our products

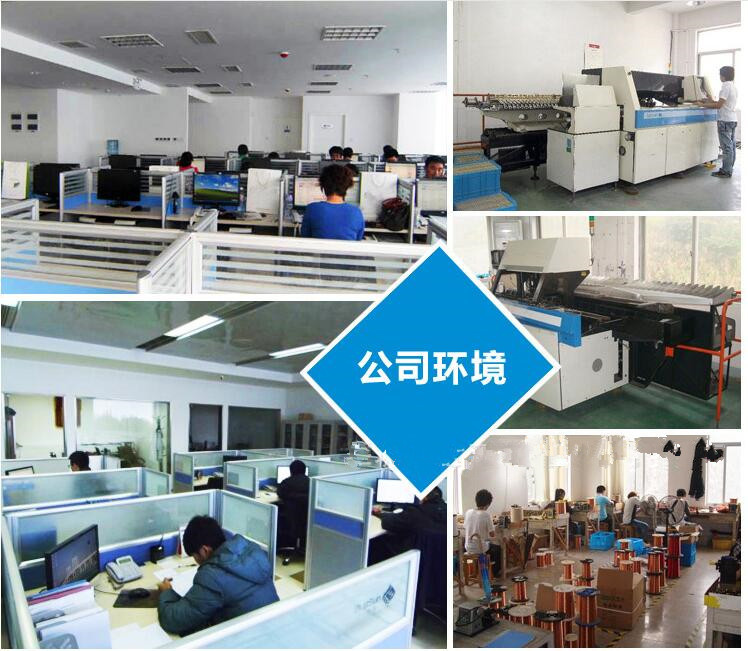

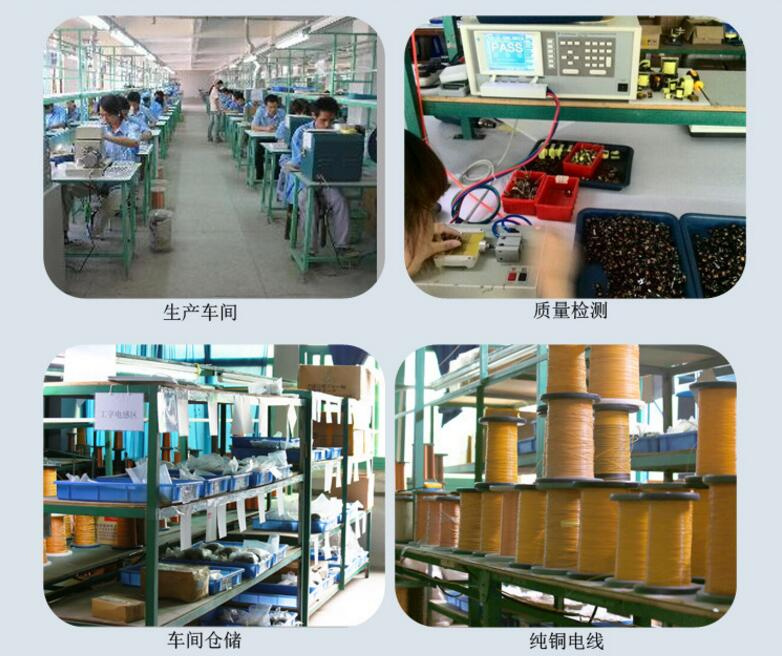

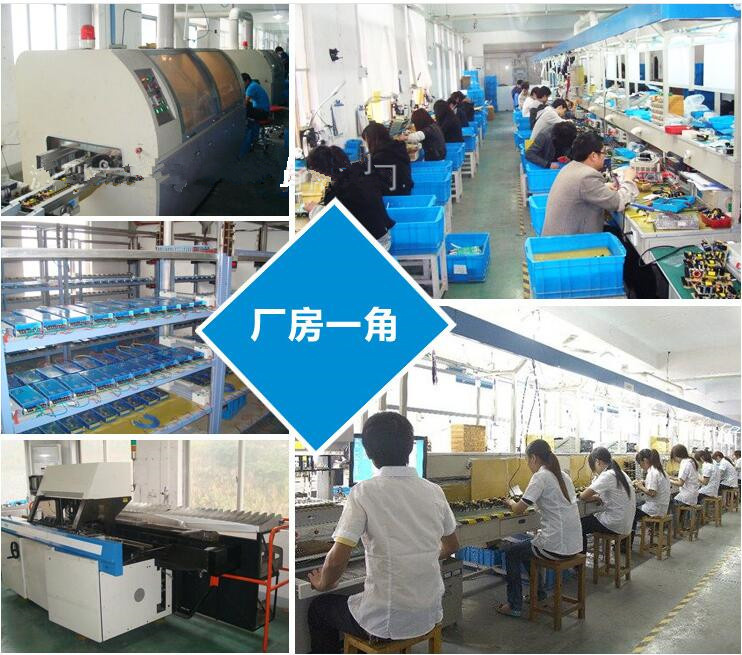

-20000m2 factory with 21 production lines and 800 employees
- 5 million units annual capacity
- Our Products has the UL Insulation System, Quality is guaranteed
- High quality and best services

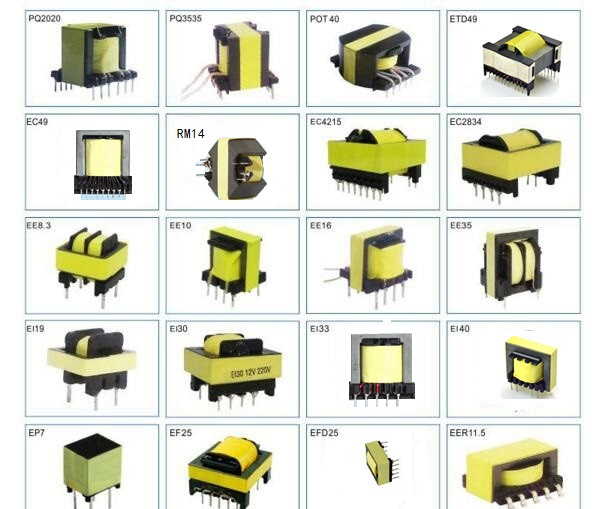

- More models and types are available. Welcome your spec and sample to make custom-manufacturing.


Browse our online showroom and contact us with your OEM/ODM specifications. Our operators are waiting your calls and E-mail. XPPOWER will also produce devices outside these specificati

ER Transformer Specification
Model	PIN	Dimension
		A	B	C+/-0.5	D+/-0.5	E	F
ER25.5	8	19.5	19.7	12.5	4	5	25.5
ER28	12	30.5	23	17.5	4	5	31
ER28	12	23.1	28.2	25	4	5	29.1
ER28	12	36	27	20	4	5	30
ER28	12	26.3	37.1	30	4	5	30.2
ER33	14	37.5	28	22.5	4	5	36
ER35	14	43.5	28	22.5	4	5	35.5
ER35	16	29.1	40.3	35.4	4	5	40.3
ER39	16	46	31.1	25	4	5	43.1
ER39	16	33	41.5	30.85	4	7.5	42.3
ER40	16	48	31.1	25	4	5	43.1
ER4215	14	45.5	30	25	4	5	42
ER4220	14	44	37.5	36	4	5	42
