Crimp Type Male N RF Connector for Rg213/LMR400/Rg8

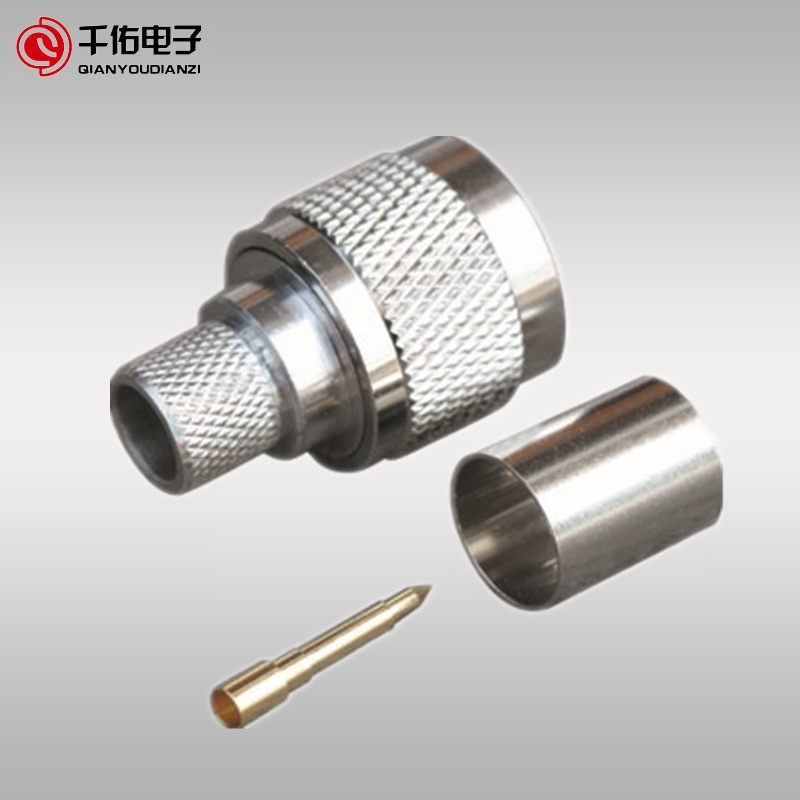

Name: Crimp Type Male N RF Connector for Rg213/LMR400/Rg8
Brand: all-electronics-online.com
SKU: 823776105
Availability: InStock
Rating: 4.6 (71 reviews)

Price:	US $ 0.68-0.7/Piece
Min Order:	1000/Piece
Pay Type:	T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	N-002
Type:	Generally Coaxial Connector
Coupling Mechanism:	Threaded Connection
Application:	RF Connector
Medium Pressure:	2500V
Brand:	Qianyou

Product Description

Temp.range	-40~+150°C
Impedance	50Ω
Frequency Range	DC~6GHz
Working Voltage	1000V max
Withstand Voltage	2500V rms
Center Contact	≤ 1mΩ
Outer Contact	≤ 1 mΩ
Insulation resistance	≥ 5000 MΩ
Salty Test	24h
Durability(mating)	≥500times
Material	brass
Plating	nickel
Inner conductor	brass
Insulator	PTFE
Applicable Standard	IEC 60169-15

Yangzhou Qianyou Electronics Co., Ltd. Specilized in producing kinds of RF connector with high quality and favorable price, such as N connector, F connector, SMA connector, BNC connector, TNC connector, etc.

Our company well saled in most areas of China, for more than 20 years has resulted in a great reputation from our customers.

We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

Welcome to establish a good business relationship.
