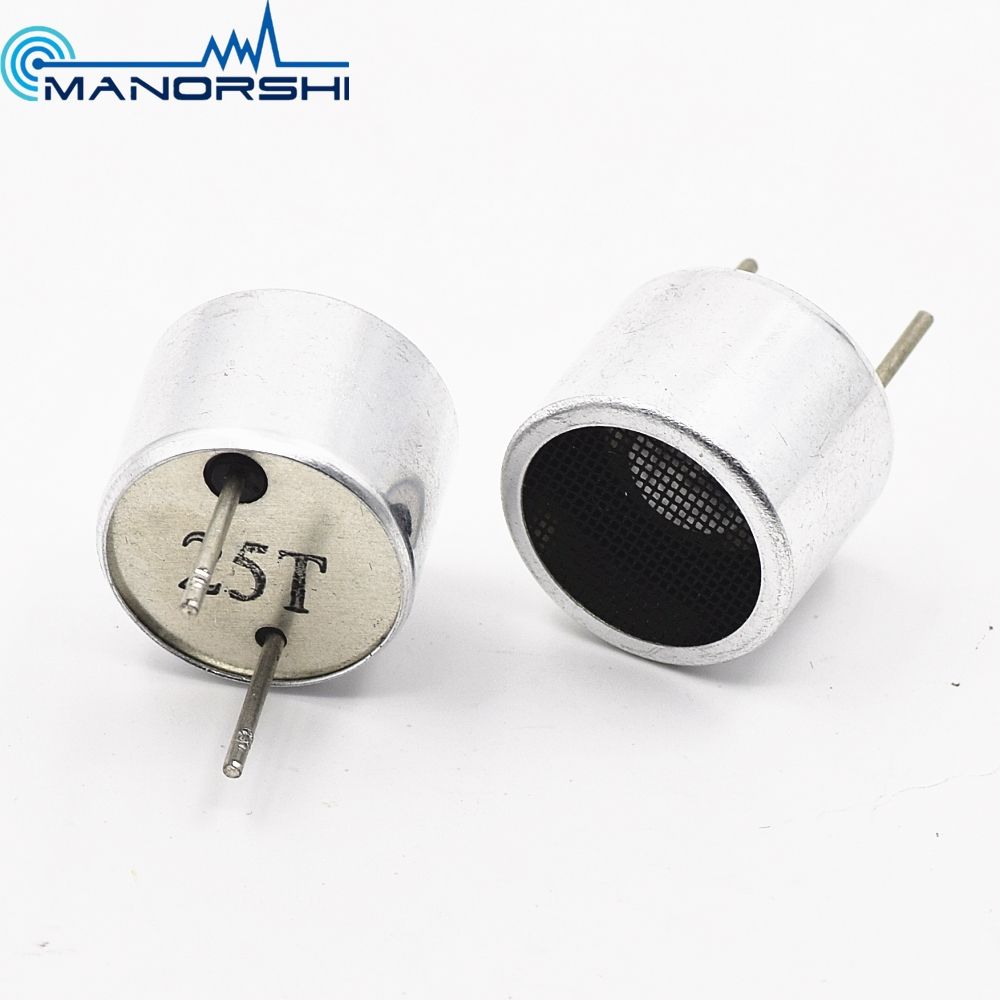

DC 25kHz 16mm Emitter Ultrasonic Sensor with Pins

Name: DC 25kHz 16mm Emitter Ultrasonic Sensor with Pins
Brand: all-electronics-online.com
SKU: 838054535
Availability: InStock
Rating: 4.3 (108 reviews)

Price:	US $ 0.2-0.8/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MSO-AT1625H12R
Product Name:	DC 25kHz 16mm Emitter Ultrasonic Sensor with Pins
Name:	25kHz 16mm Emitter Ultrasonic Sensor
Center Frequency:	25kHz
Spl:	≥115dB
Directivity:	60±15°
Capacitance:	2300±15%PF
Housing Material:	Al or Plastic Ultrasonic Sensor
Input Directivity:	80vp-P Max
Color:	Black or Sliver Ultrasonic Sensor

Product Description

dc 25khz 16mm emitter ultrasonic sensor with pins

Specification

Item	transmitter	receiver	Note
Center Frequency	25±1.0kHz
SPL	≥115dB	---------	0dB=0.0002μbar
Sensitivity	--------	≥-65dB	0dB=1vol/μbar
Directivity	60±15°		-6dB typical
Capacitance	2300±15%pF
Housing material	Al or Plastic
Input Directivity	80Vp-p max

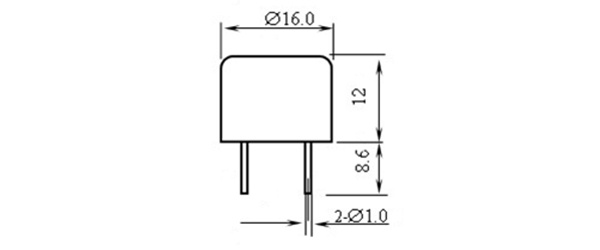

Dimension

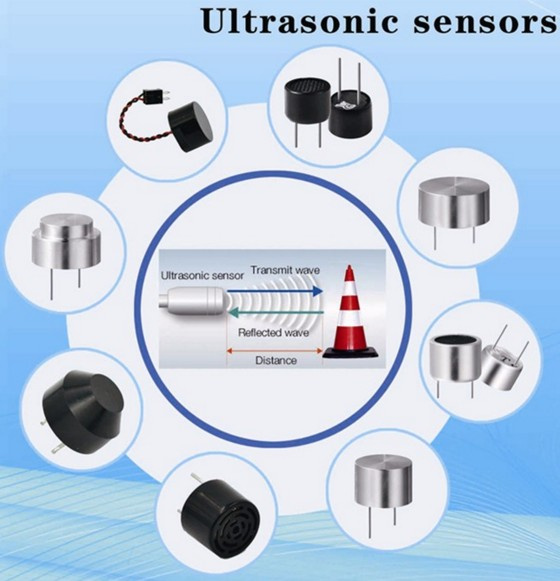

Application


Why choose us




About us
We well understand your demand of good quality, competitive prices, scheduled delivery, swift,well communication,OEM & ODM and afte-sale service . This is our advantage!

Many things to be considered and discussed before a product come into mass production. We help you to ' Print Your Idea '.
Trade show & Certification

FAQ

1.What's your MOQ?

MOQ depends of different series of products, pls contact with us.

2.Do you support OEM and ODM services?

Yes, we can customize products according to the drawing.

3.How about freight fee?

We cooperate with different express companies, enjoy the lowest discount.

4.Do you support after sales service?

The professional after-sales service team will solve all problems for you.

Manorshi Electronics Co., Ltd. is a professional manufacturers of acoustic components in China. We can supply all kinds of acoustic and security components such as Piezo Ceramic Elements, Piezo Buzzers, Magnetic Buzzers, SMD buzzers, Mechanical buzzers, Sound Alarms, We also make Ultrasonic sensors, Distance measuring sensors, Which have Water proof type and Open type, And other related products such as Speakers.

Our products are widely used in electric appliances, computers, cordless phones, alarm systems and parking systems. Backed by professional engineers and advanced equipment, we assure the best quality products, competitive prices, and fast delivery.

If you have any enquiry about our products, Pls contact us now.
