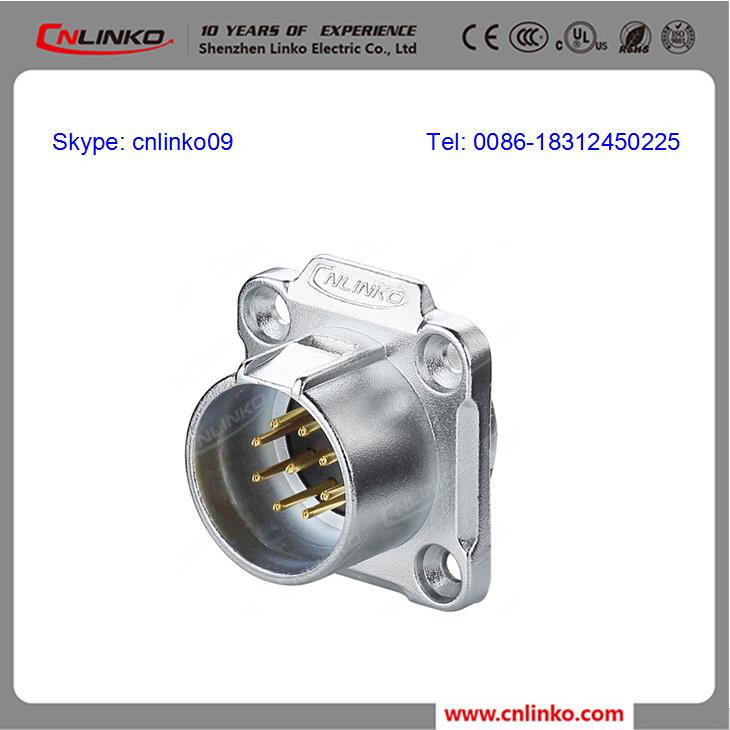

DC Inlet 20A Square Flange Socket Power Jack Connector

Name: DC Inlet 20A Square Flange Socket Power Jack Connector
Brand: all-electronics-online.com
SKU: 776670585
Availability: InStock
Rating: 4.8 (99 reviews)

Price:	US $ 2.95/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

DC inlet 20A square flange socket power jack connector

It is widely used in
·New energy
·LED
·Industrial control product
·Automotive
·Security product
·Power Supply
·Electric Vehicle
·Solar Energy
·IPC
·Various Mold
It is high performance and competitive price.

Specifications:

Connecting mode	Pull&Push
Protection level	IP65/67
Cable specification	0.15mm ² ~ 0.2mm ² /26-24AWG
Diameter range	Φ5.5mm ~Φ7mm
Contact diameter ×Qty	Φ1.0x9
Current rating(A)	5A
Operating voltage(AC.V.rms)	400V
Withstand voltage(AC.V)1min	1500V
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Prevent the combustion level	UL94-V0
Temperature rise	12A per contact at 30°C, 15A per contact at 40°C, 20A per contact at 50°C
Color	Red
Protective housing	PBT Material
Install method	1/4 Quick bayonet
Material
Shell&Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Assembly wire	Solder
Copper needles	Copper alloy(gold-plated)
Waterproof	Silica gel

Packaging & Shipping

Normally, our price is based on our box packing.Customized packing is welcome , MOQ of printing customized box is 1000 pcs/modelDelivery Detail: 1-10 working days after received deposit .You may choose our shipping partner or your own partner .100% T/T in advance is required after confirming the order.

Our Services

CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.Supply OEM service .We have professional quality control system and R&D department to strictly manufacture each product.100,000 pcs per month .National level laboratory , and have flexible production line, to make quick action to urgent customized needs.We will supply the best service to you . Anything ,please feel free to contact us at:

Contact Person: Eunice Tan
Cellphone: 0086-18312450225
Telephone:0086-0755-86960323
Website:www.cnlinko.com

Prod Model:	LP-20-C09SX-01-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Specification:	26-24AWG
Diameter Range:	5.5mm-7mm
Contact Diameter*Number:	1.0*9
Operating Voltage:	400V
Protection Level:	IP65/IP68
Durability:	500 Times
Connecting Mode:	Plug/Unplug
Assembly Wire:	Solder
Copper Needles:	Copper Alloy(Gold-Plated 4u)
Flammability Rating:	UL94-V0
