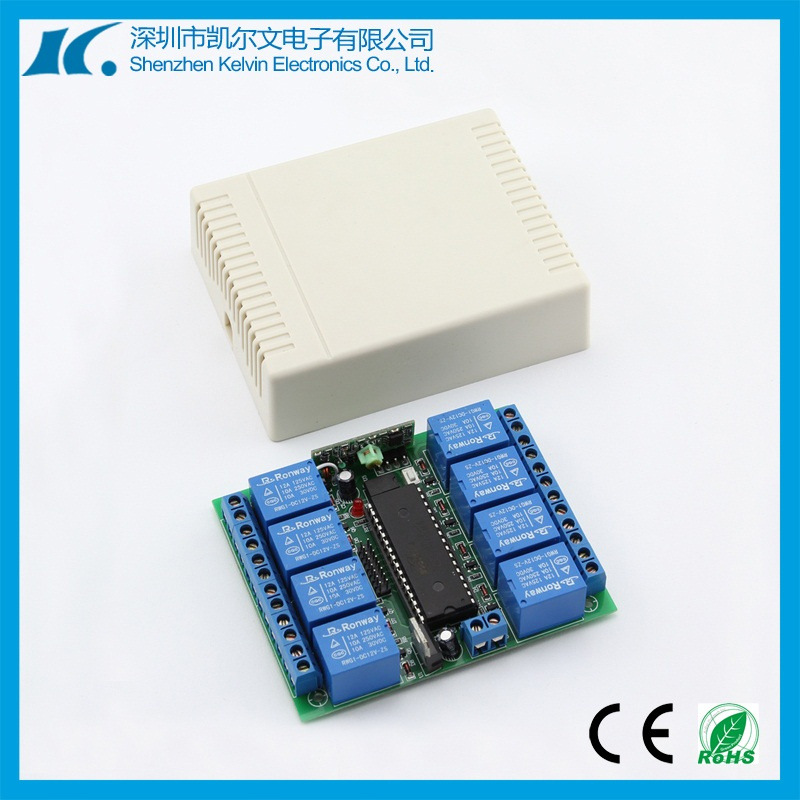

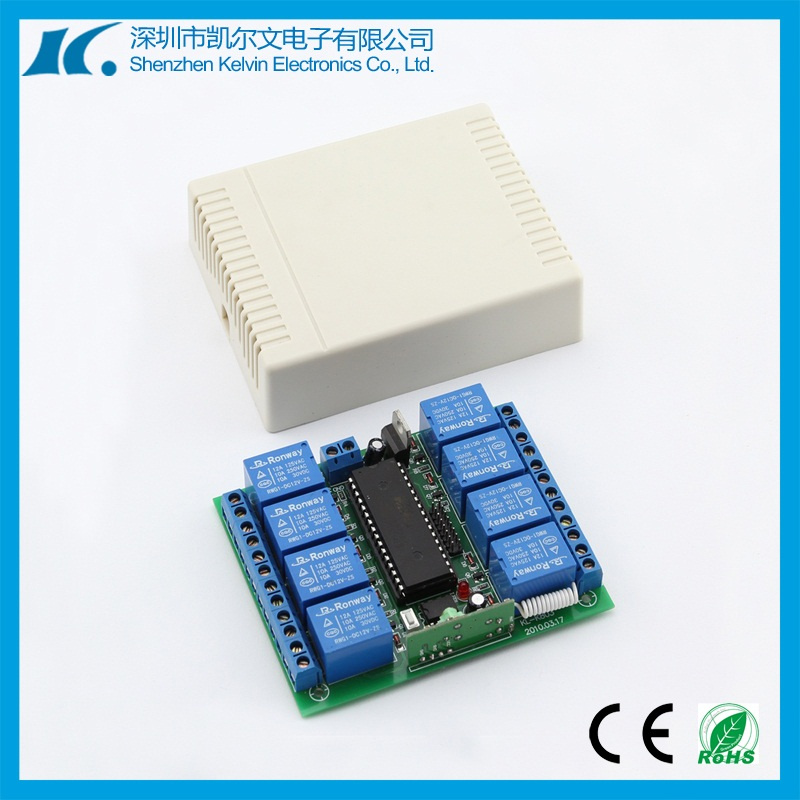

DC12V/24V Remote Control Switch for Automation Control KL-K803
KL-K803 is a 8-Channle learning code remote controller, it works at DC12V, and output switching ON/OFF via 8 channels, each channel has 3 terminals which are NO, NC and COM.

Operation Method:

1. Match code:
Hold learning button and learning indicator light blinks, then press a buttons of remote control, if indicator lights flashes 3 times, match code successfully. Maximum 20 remote controls can be matched.

2. Delete code:
Hold learning button till the indicator LED lights and then off, delete successfully.

3. Set working mode:
S1 & S2 program the sequence as follows:
Jumper on S1→ Toggle
Jumper on S2→ Latching
No Jumper on S1 &S2→ Momentary

But 8/12/15 channels not Latching function.

Tech Data:

DC 12V 4-Channel Remote Control Switch KL-K400C

Input	DC 12V (DC9V, 24V can be customized)
Channels	8
Working Current	8mA
Working Frequency	433MHz / 315MHz, Optional
Receiving Sensitivity	-103dBm
Decoding Type	Leaning Code(EV1527) / Fixed Code(PT2262)
Working Mode	Momentary / Latching
Output	Switching Signal (Dry Contact)
Max Load	5A (Relay Contact)
Dimension	957530mm

Working Mode:

1. Momentary: Press remote button A, the corresponding relay on the receiver is on; release button A, the relay is off, the same as others.

2. Toggle: Press remote button A, the corresponding relay on the receiver is on; press button A again, the relay is off, the same as others.

3. Latching: Press remote button A, the relay A is on, B is off; press button B, the replay B is on, A is off.

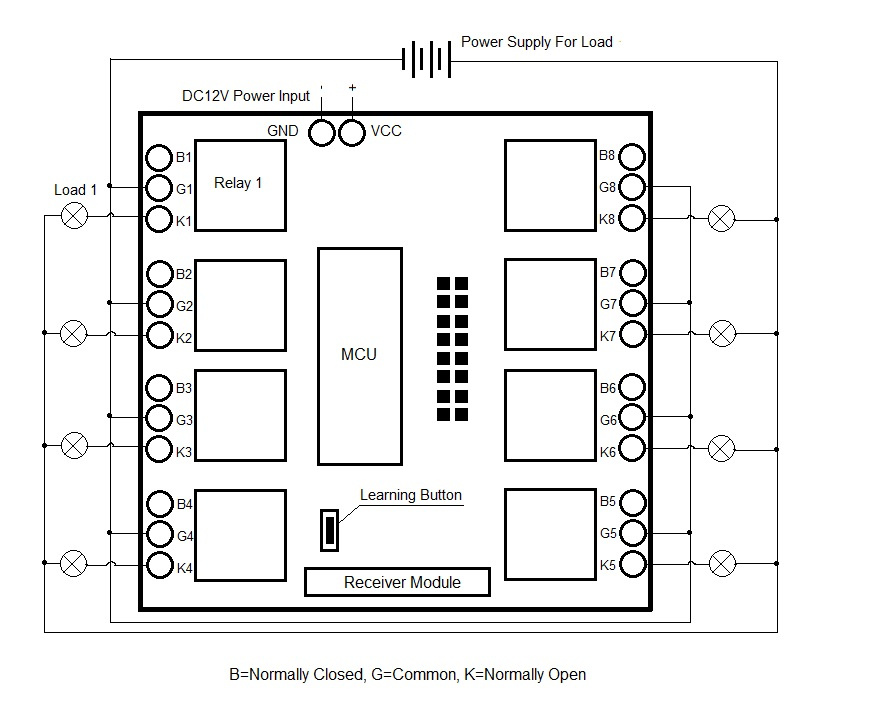

Wiring Way & Diagram:

B=Normally Closed, K=Normally Open, G=Common.

Please refer to below picture as wiring diagram:

Shipping

1) Express: DHL, FedEx, UPS, TNT, EMS, etc.

2) By air

3) By sea

4) By special line

Depends on buyer's requirement.

http://szklvn.en.made-in-china.com/

Prod Model:	KL-K803
Model Number:	Kl-K803
Channel:	8
Operating Voltage:	DC12V (Customized 9V, 24V)
Operating Frequency:	315/433.92MHz / Customized
Receiver Sensitivity:	-103dBm
Encoding Type:	Learning Code 1527
Work Mode:	Momentary, Toggle
Output Way:	Switching on/off
Dimension:	957530mm
Maximum Current:	5A
Application:	Industrial Machinery
Signal Transmission:	RF Remote Control
Certification:	CE
Universal:	Universal
Voltage:	12V
Type:	8 Channel
