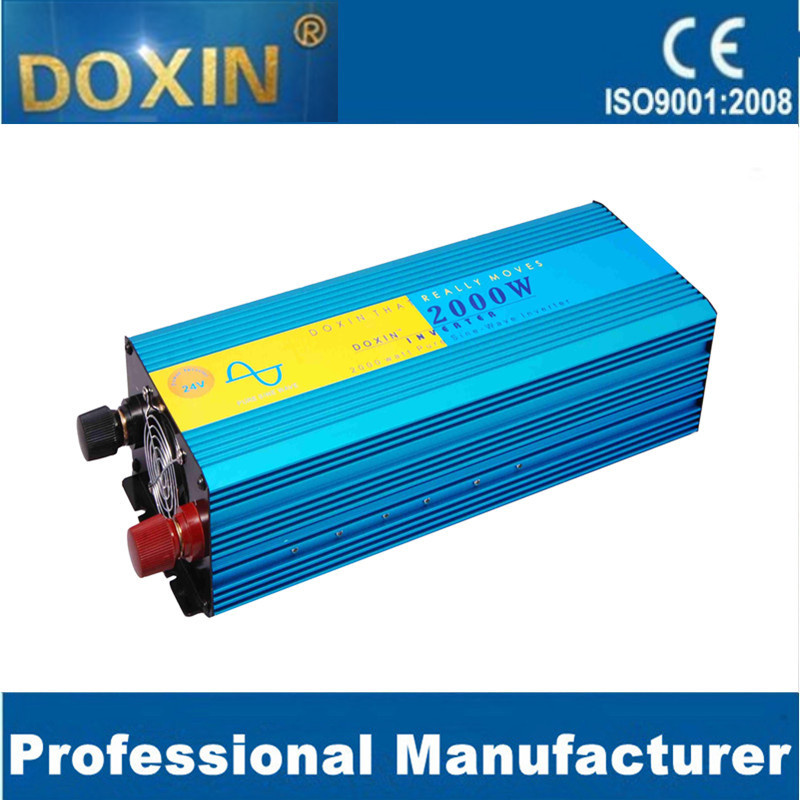

Hot! off grid DOXIN 2000Watts sine wave car inverter (DXP2020)
1. Features:
1) It is featured as high reliability, and low failure rate, with the advanced double CPU SCM intelligent controlling technology.
2) Pure sine wave output, strong ability of driving load, wide range of application
3) Perfect protection functions (Overload protection, inside overheat protection, input low-voltage protection, input overvoltage protection), enhanced the reliability of the product.
4) Small and light: with the technology of CPU centralized control and SMD inside, the product is very small and light.
5) Intelligent control of cooling fan: Using CPU to control the working status of the cooling fans extends the service life of the cooling fans, saves the power and improves the working efficiency.
6) Low noise but high efficiency while working

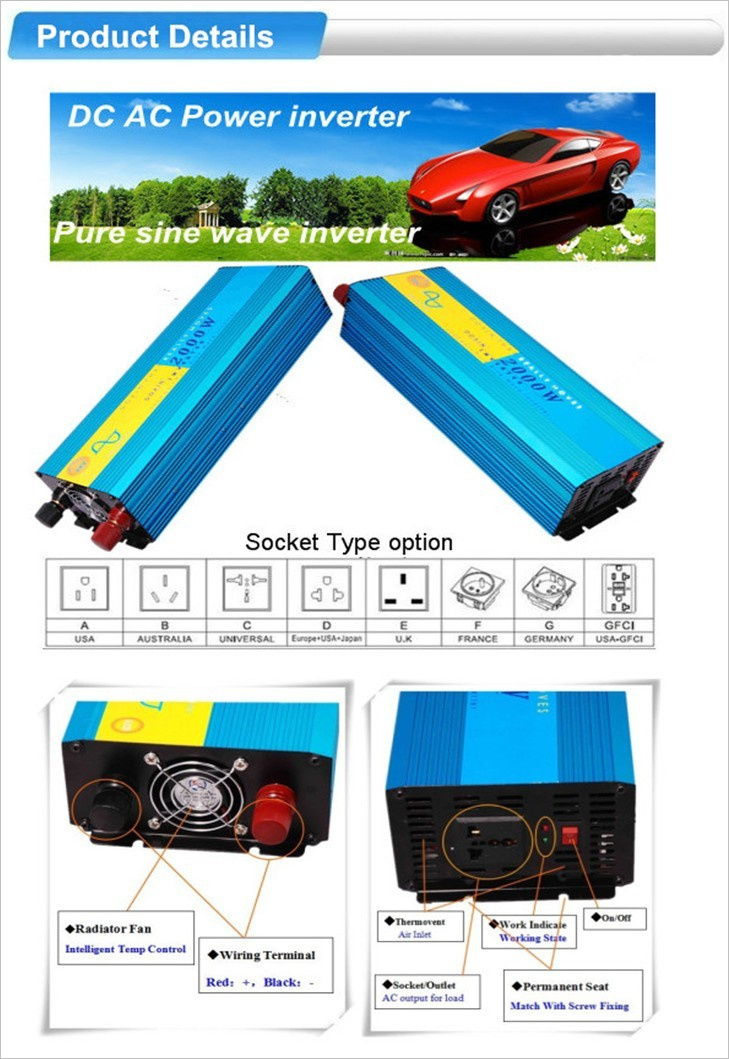

2. Detailed pictures:

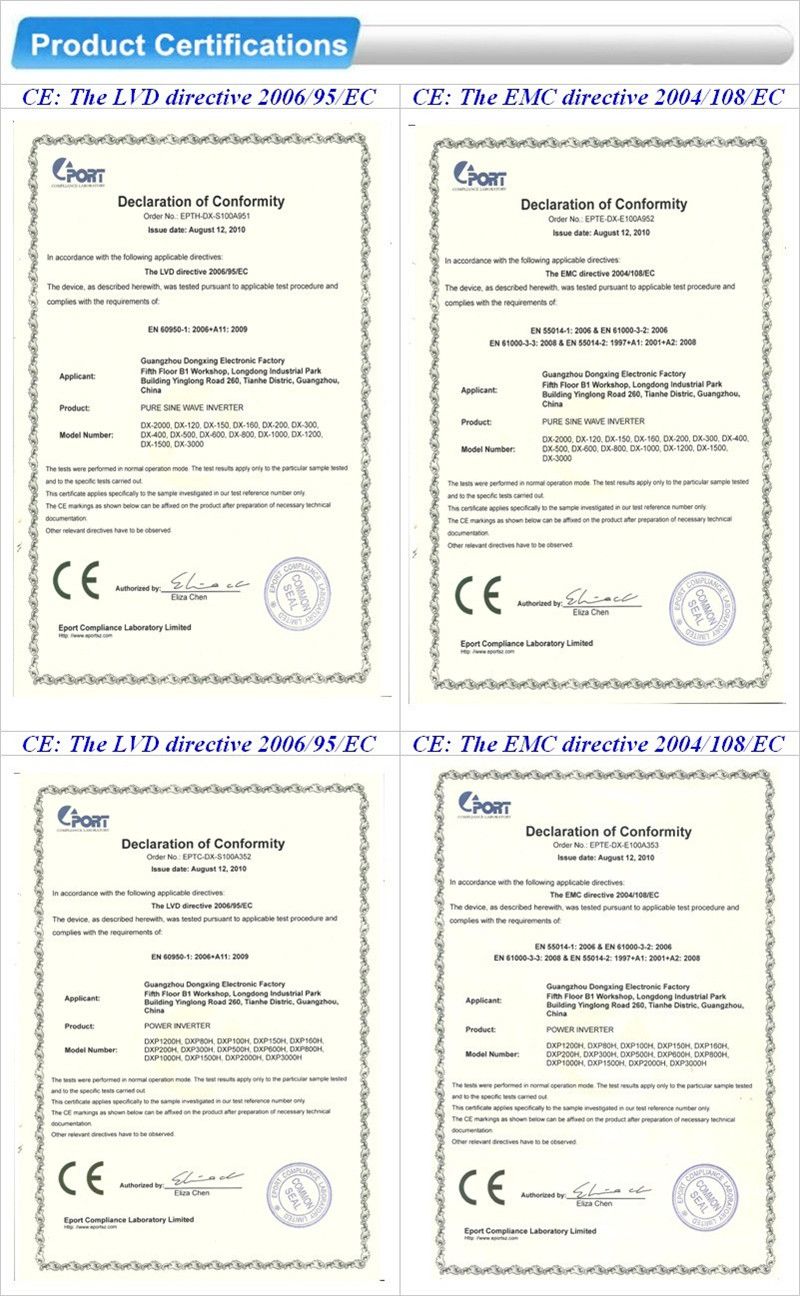

3. CE Certification
4. All protection function
(1)Over load (2)Over temperature (3)Over voltage
(4)Low voltage(5)Reserve connect protection
(6)Over current (6)Short circuit
(7)Internal built in fuse (8)Buzzer alarm
5. Application
1. Travel Equipment Series: Military vehicle, police cars, ambulances, ships, traffic lights and so on.
2. Industrial equipment series: Solar energy, wind power, metal halide lamps, high pressure sodium lamp and so on.
3. Office equipment series: Computers, printers, monitors, copiers, scanners, digital cameras, digital cameras and so on.
4. Home Equipment Series: Vacuum cleaners, fans, lights, electric cutting knife, sewing machines and so on.
5. Kitchen utensils series: Microwave ovens, electric sheet metal pot, refrigerator and so on.
6. Power tools: Saws, drilling machines, grinding machine, sandblasting machine, stamping machine, lawn mower, air compressor and so on.
7. Series of electronics: TV, DVD, game consoles, power amplifiers, audio equipment, monitoring equipment, servers, satellite communications equipment.

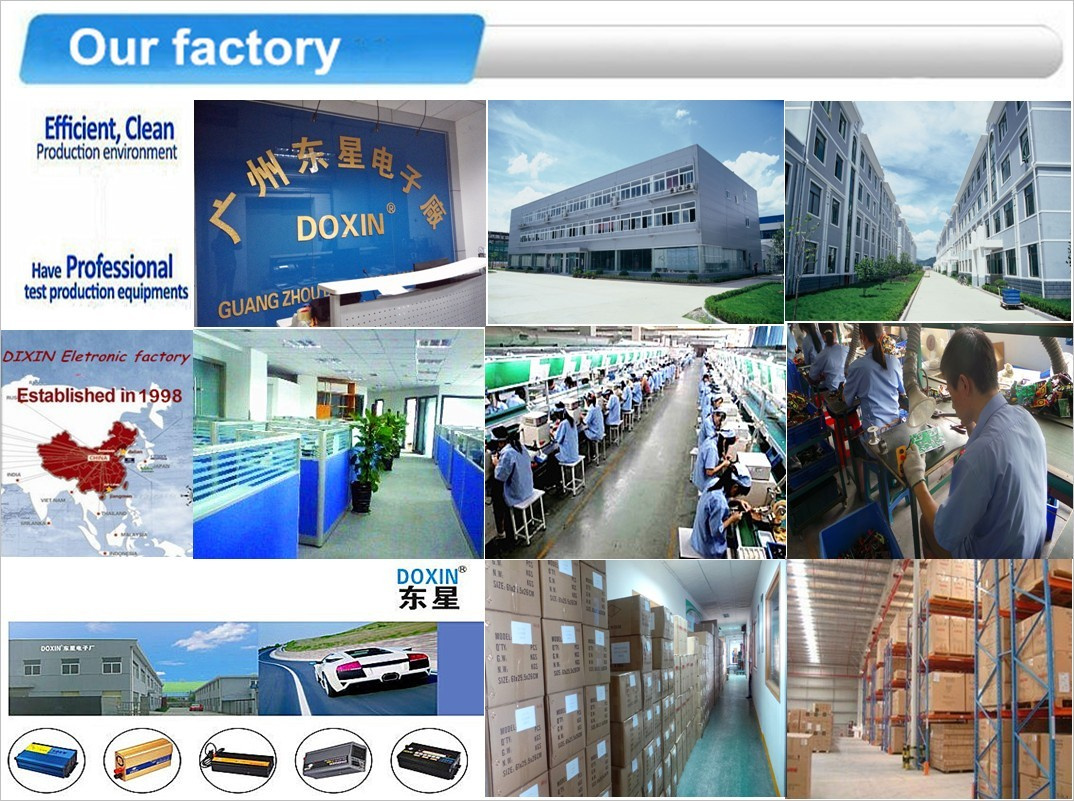

5. Our factory
Pure Sine Wave Inverter
(DC12V/24V/36V/48V--AC110V/220V/230V/240V) |
| CATALOGUE (DC48V_AC220V) |
| Item No. | DX-150 | DX-300 | DX-500 | DX-800 | DX-1000 | DX-1500 | DX-2000 | DX-2500 | DX-3000 |
| * Max continuous power: | 150W | 300W | 500W | 800W | 1000W | 1500W | 2000W | 2500W | 3000W |
| * Peak Load Power Rate: | 400W | 600W | 1000W | 1600W | 2000W | 3000W | 4000W | 5000W | 6000W |
| * NO load current draw: | <0.6A |
| * Input DC voltage Range: | DC37-60V |
| * Output Voltage Range: | AC110/220V±5% |
| * Output Frequency Range: | 60/50Hz+/-3Hz |
| * Max Outer Temperature: | < 65°C |
| * Max Power Efficiency: | > 85% |
| * High Voltage Cut Off: | >DC60V±1V |
| * Low Voltage Alarm: | DC 37.5±0.5V |
| * Low Voltage Cut Off: | DC36.5V±0.3V |
| * Overload&Short-circuit Protection | YES |
| * Input Voltage: | DC 48V |
| * THD: | ≤5% |
| * Cooling: | Fan |
| * Product Size(mm): | 167*95*55 | 175*150*70 | 270*150*70 | 370*150*70 | 370*150*70 | 370*150*70 | 435*150*90 | 430*155*130 | 460*170*120 |
| * Packing size | 49*46*47cm(40pcs/ctn) | 61*37.5*26cm
(8pcs/ctn) | 49*46*47cm(6pcs/ctn) | 51*46*47cm (8pcs/ctn) |
| * N.W: | 0.55Kg | 1.11Kg | 1.65Kg | 2.15Kg | 2.15Kg | 3.4Kg | 3.4Kg | 3.85KG | 5.7KG |
| * G.W: | 0.75Kg | 1.25Kg | 2.2Kg | 3.35Kg | 3.35Kg | 4.3Kg | 4.3Kg | 4.8KG | 6.65KG |
Guangzhou Doxin Electronic Factory is a manufacturer specialized in automobile electronic products. Currently, we mainly produce Car Power Inverter, Solar charge controller, Battery charger, transformer, Power adapter, Mobile phone charger, car emblem badge, wheel center cap, tire valve cap, car wheel sticker, car logo keychain which was established at the beginning of 1998.
We utilize advanced encrypting technologies, full automatic production line, Multi function testing. With features of "high efficiency, detection function, intelligent and environmental protection and energy saving", Products meet EU RoHS Green Directives, and wildly used in Car, Home furnishing, Outdoor, Travel, Patrol, Fieldwork ect.
Our production base with the perfect size was built and the base passed ISO9001: 2000 quality system certification, CE certification, RoHS certification, LVD certification, ETL certification and E-MARK. Modern factories, outstanding management and advanced technology become the best guarantee of product quality. Our products are selling well in our country, Europe, the United States, Middle East, Southeast Asia and other area with unique and innovative design, low interference technology, high performance-price ratio, the best technology and excellent quality. With over 10 years of R & D and production experience, OEM service. Our company has become one of the famous power inverter manufacturers in China.
Our Company continued to expand into international markets, at the same time, efforts to develop the domestic market, "DOXIN" products have caused widespread concern in the industry through the domestic marketing system, such as dealer network, OEM market. Car owners comprehensive experience to DOXIN forefront automotive technology products, which bring them convenience and happiness, once again demonstrates the strength and determination of the Guangzhou DOXIN electronic factory.
Adhering to the business principle of "Achieve Mutual Benefits from Good Cooperation", our employees are looking forward to establishing business relationships with clients both in the domestic and the overseas markets.
