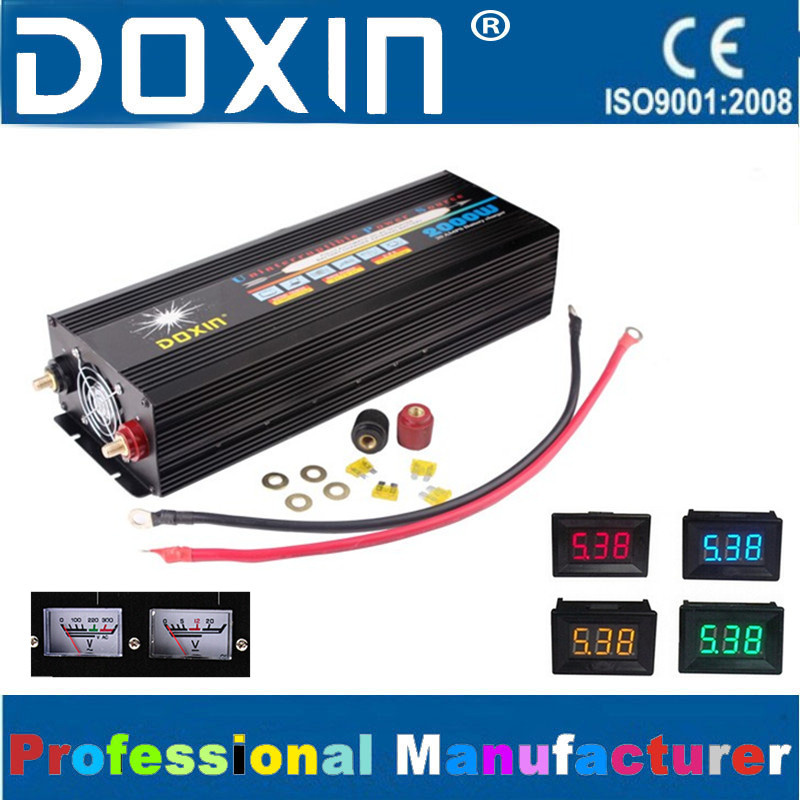

High Frequency 2000W 12V 220V Power Inverter with UPS&ChargerFeature:1,Use of imported components manufacturing.advanced circuit design,up to 90% conversion efficiency,strict quanlity management system,modernization of water production,prroduct quanlity assurance.
2,Complete product specifications,different standards at home and abroad,several major series of products can also be designed according to custoer needs.
3,internal protection circuits to prevent the electrical pulses or voltage fluctuations,the design of self-protection will automatically shut down to protect the vehicle.
4,no work noise.
5,Aluminum product,high-pressure plasma process Ti surface,high hardness,chemical composition and stability,anti-oxidation,amateur appearance.
6,a variety input and output mode:12v input,24input,220v AC output,110V output,fully able to meet domestic and foreign users of the exchange of electriccity demand.
FAQ:
1. What is Inverter?
Inverter is an electronic equipment that turn DC12V/24V/48V into AC110V/220V/230V/240V.
2. How many kinds of output wave form for Inverters?
Pure sine wave Inverter: It could provides high quality AC and carry various loads,While it requires high tech and high cost.
Modified sine wave Inverter: It can load poorly not carrying inductive load, but the price is moderate.
3. How to choose a power inverter?
Mose of the electronic products are signed out their rated power, and the rated power should be less than the rated power of the power inverter.
The method of how to estimate the power(W): The total of load power should be equal to the rated power(W) of the power inverter.
You can choose inverter in this way.
Warranty&Return:
1 year warranty from date of purchase record:
Please email us first if you have any questions or problems with the item received. We will try our best to solve the problem for you.
If we cannot help you through emails, we will give you return instructions.
No refund or replacement will be processed without the item being returned back to us. We reserve the right to refuse any returns for our reasons.
Buyer is responsible for return shipping cost in any situation.
We will not be liable to customer for any damages beyond the amount of money that customer has actually paid us.
For more info you need, please contact us anytime!
Call us: +86 18028085970

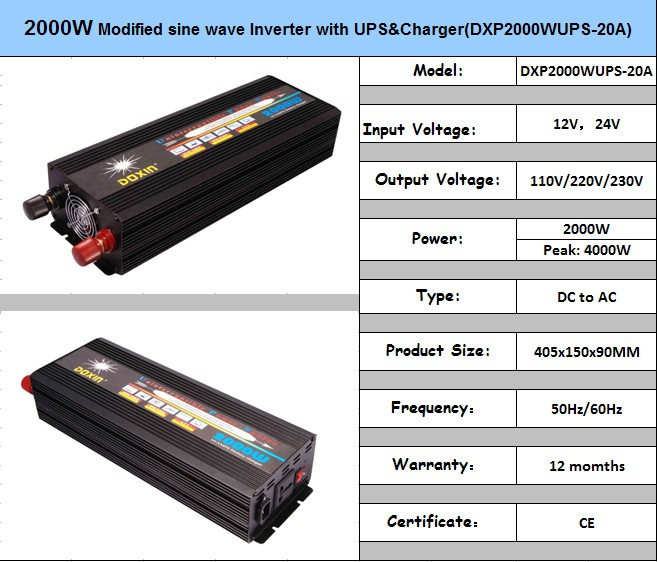

| Model | DXP2000WUPS-20A |
| Input | DC Voltage | |
| VoltageRange | 10-15VDC or 21-30VDC or 42-60VDC or 92-132VDC |
| No Load Current Draw | < 0.2A |
| Efficiency | > 90% |
| DC Connector | Cables With Clips or Car Adaptor |
| Output | AC Voltage | 110/220/230/240 V AC |
| Continuous Power | 2000W |
| Surge Power | 4000W |
| Waveform | Modified sine wave |
| Frequency | 50Hz or 60Hz |
| AC Regulation | 3% |
| Protection | Low Voltage Alarm | 10DC± 0.5V or 20.5DC± 1V or 44VDC± 1V or 100VDC± 1V |
| Low Voltage Shut Down | 9.5DC± 0.5V or 19.5DC± 1V or 42VDC± 1V or 96VDC± 5V |
| Over Load | Shut Off Output |
| Over Voltage Shut Down | 15.5V or 30.5V or 61.2V or 120V |
| Over Thermal | Shut Off Output Automatically |
| Environment | Working Temperature | Between -10° C and +50° C |
| Working Humidity | 20%-90%RH non-condensing |
| Storage Temperature | Between -30° C and +70° C |
| Package | Machine Size(mm) | 445X155X95MM |
| Packing Size(mm) | 49*31*39CM |
| Net Weight(kg) | 4.8 |
| Gross Weight(kg) | 5.3 |
| Packing Mode | Carton |
| Other | Start | Soft Start |
| Cooling Ways | Cooling Fan |
|
