Dedicated High-Voltage Current Limiting Fuse for Mitsubishi Vacuum Contactor Protection

Name: Dedicated High-Voltage Current Limiting Fuse for Mitsubishi Vacuum Contactor Protection
Brand: all-electronics-online.com
SKU: 832727025
Availability: InStock
Rating: 4.5 (95 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CLS
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage
Fusing Device:	Fuse Link

Product Description

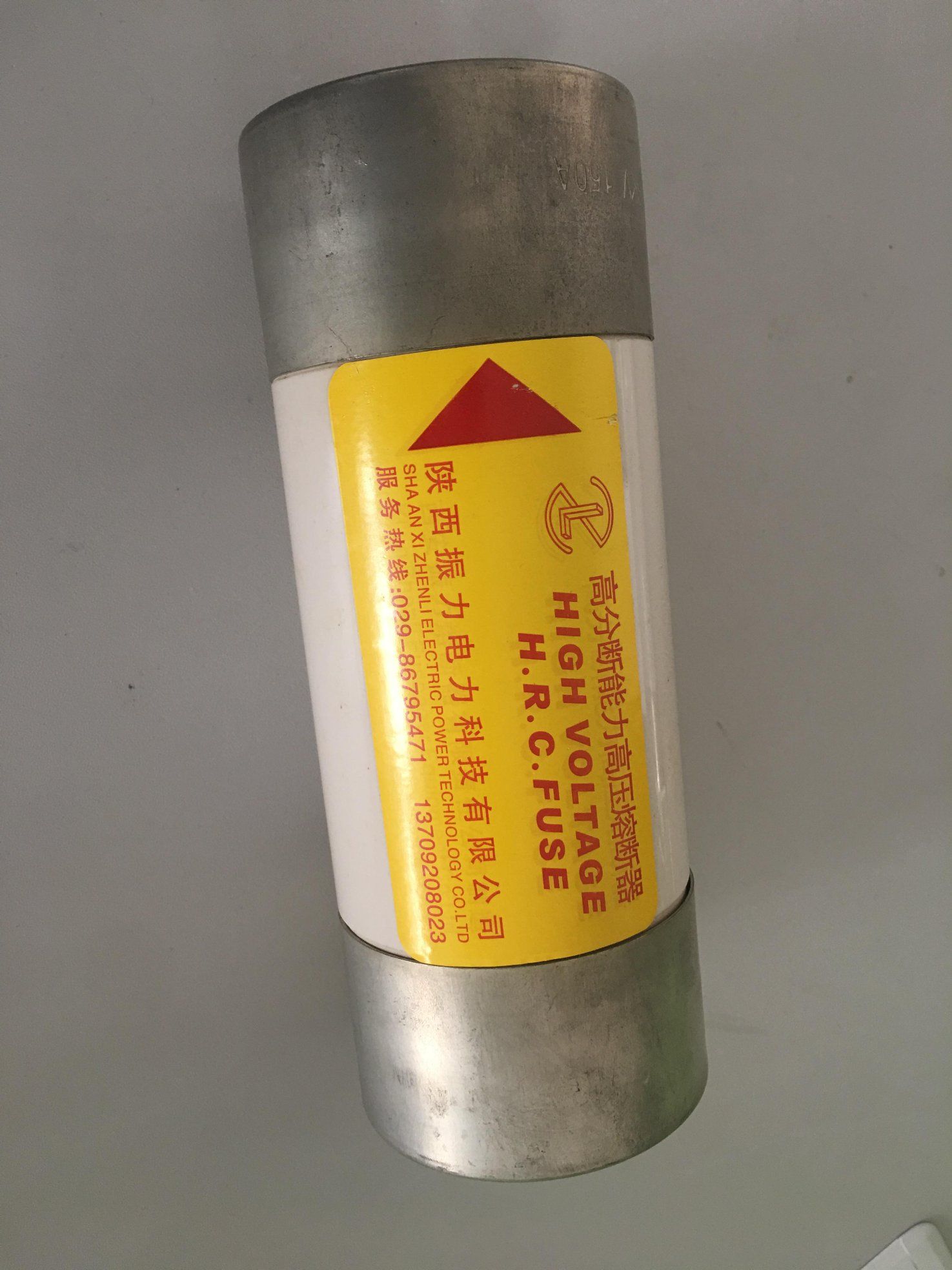

This product applies to the indoor AC 50 ~ 60Hz system with the rated voltage of 3.6~7.2kV, and may be used along with Mitsubishi vacuum contactor as short-circuit and overload protection element for the high-voltage motor and transformer.
Basic parameters

Model	Rated Voltage (kV)	Rated Current (A)	Outline Drawing				Purpose
Model	Rated Voltage (kV)	Rated Current (A)	φA±1	φA±2	C±2	D±1	Purpose
CLS	3.6	M20,M50,M100	Φ60	Φ58	200	31	Indoor
		M150,M200	Φ77	Φ75	200	45
		M300,M400	Φ87	Φ84	250	52
	7.2	M20.M50	Φ60	Φ58	310	31
		M100,M150,M200	Φ77	Φ75	350	45
		M300,M400	Φ87	Φ84	450	52

Fig. 1 Outline drawing of CLS3A

Fig. 2 CLS3A time - current characteristic curve

Fig. 3 CLS3A time - current characteristic curve
