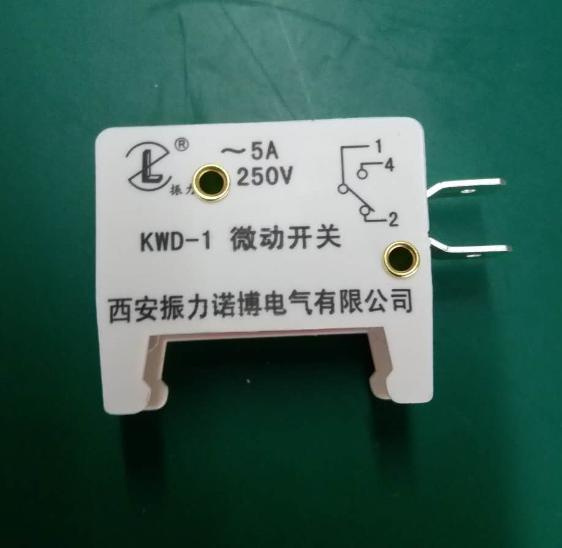

KWD-1 and KWD-2 microswitches are the signal switches supporting the fuse with base. KWD-1 switch is equipped with a normally-open or normally-close contact, and KWD-2 with two normally-open or normally-close contacts which may be selected by user according to the demands.
Electrical parameter
Rated voltage: 250V AC;
Rated current: 5A
Notes:
1. The bottom corner of switch shall be aligned with the base mounting slot and inserted before the use.
2. Signal wire and terminal shall be connected reliably according to the switch contact wiring diagram.

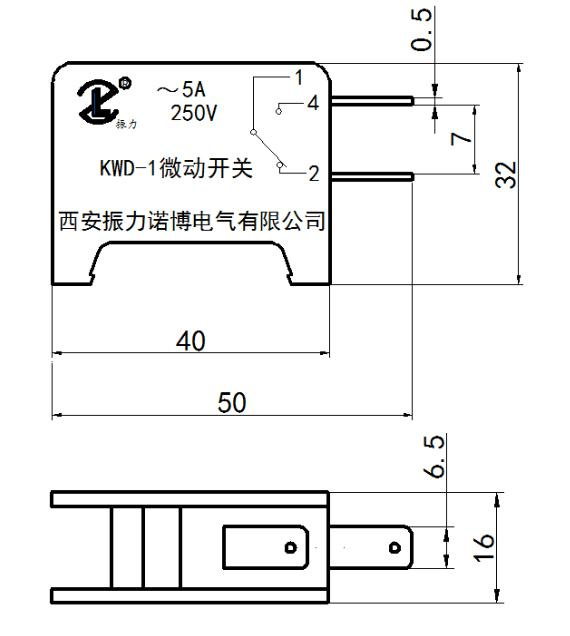

Figure 1Outline Dimensions Diagram of KWD-1

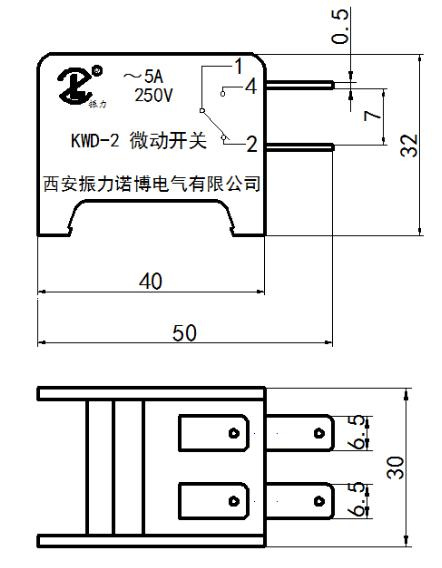

Figure 2Outline Dimensions Diagram of KWD-2

Prod Model:	KWD
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	Low Voltage
Fusing Device:	Fuse Link
