High-voltage current limiting fuse for transformer protection

-Fuse as per BS standard
This product applies to the indoor AC 50 ~ 60Hz system with the rated voltage of 3.6~40.5kV, and may be used along with other switching devices (such as load switch, vacuum contactor, etc.) This product is as short-circuit and overload protection element for the power transformer and other power equipment. The temperature rise of fuse is slow due to the bus type installation.
Model
International model:XRNT3A-12/-50

Basic parameters

Product Model	Equivalent Model	Rated Voltage (kV)	Rated Current of Fuse Element (A)	Rated Breaking Current (kA)
XRNT3A-12	BDG☆☆	12	3.15, 6.3, 10, 20, 22.4, 25, 31.5, 35.5, 40,50	50
	BFG☆☆	12	56,63,71,80,90,100
	AKG☆☆	12	112, 125

Main technical data
1. The fuse under specified operating conditions is able to reliably break any fault current from the minimum breaking current (2.5~3) ln to the rated breaking current 50kA.
2. Time - current characteristic curve is as shown in Fig. 3.
3. Current limiting characteristic curve is as shown in Fig. 4.

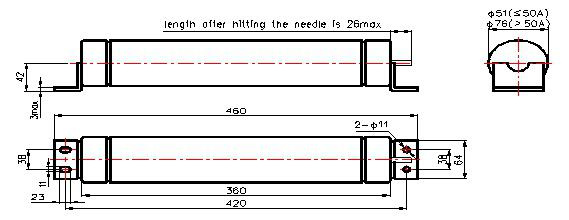

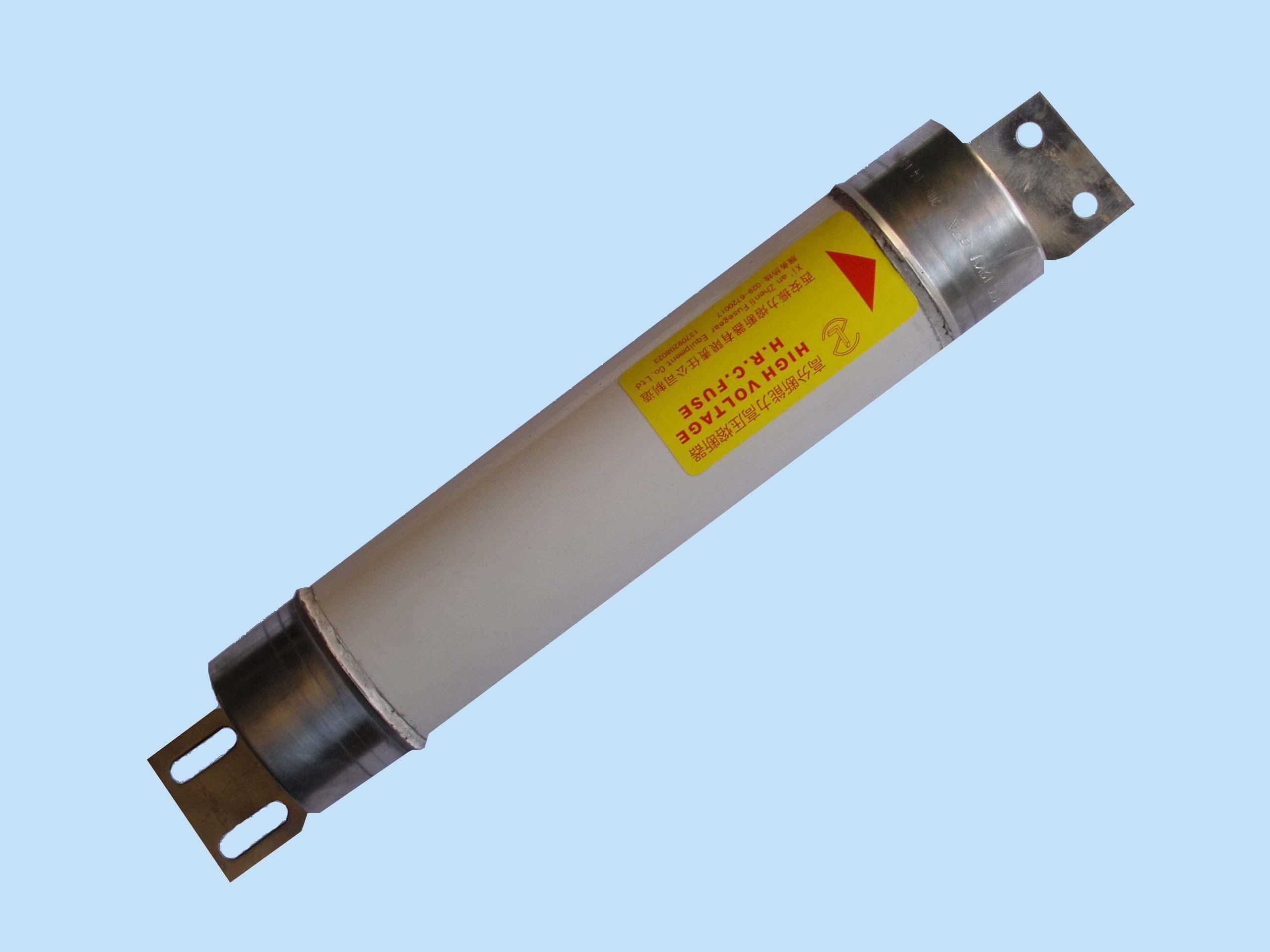

Fig. 1 XRNT3A-12 bus fuse

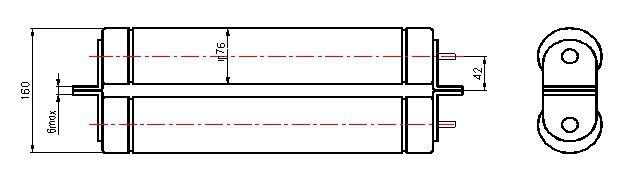

Fig. 2 a) Bus type double-parallel fuse

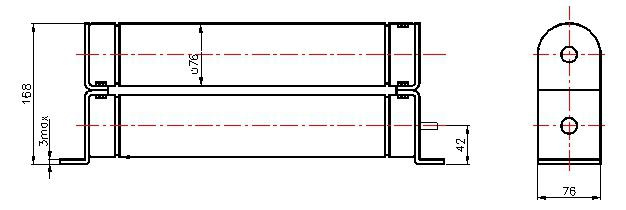

Fig. 2 b) Bus type double-parallel fuse

Main technical data
1. The fuse under specified operating conditions is able to reliably break any fault current from the minimum breaking current (2.5~3) ln to the rated breaking current 50kA.
2. Time - current characteristic curve is as shown in Fig. 3.
3. Current limiting characteristic curve is as shown in Fig. 4.

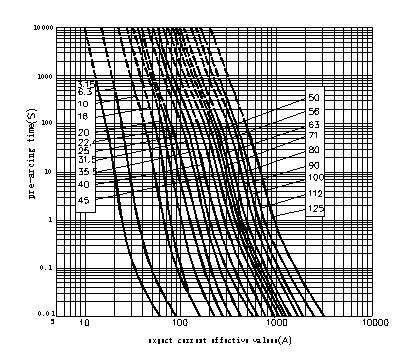

Fig. 3 XRNT3A-12 (bus type ) time - current characteristic curve

Fig. 4 XRNT3A-12 (bus type) current limiting characteristic curve

Prod Model:	XRNT3A-12/-50
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage
Fusing Device:	Fuse Link
Standard:	BS
