Pd-12/100A-12.5 Closed Type Drop out Fuse
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |

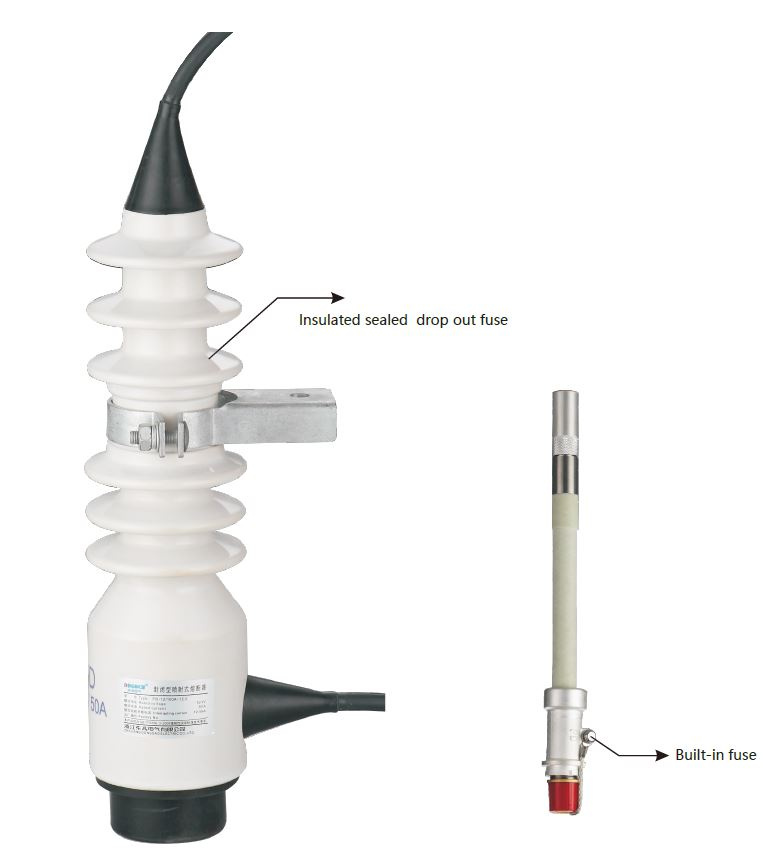

product mix Outdoor high-pressure sealing injection fuse product design is unique, there are mainly selects the domestic high quality silicone rubber insulation sleeve, the upper enclosed design, lower the ceramic sets of silicone rubber sealing design, the product structure of interpolation, the contactor is a kind of arc surface contact, CARDS and elastic, the contactor adopts double-sided CARDS and contactor, safer, more contact this product on the ground in order to facilitate movement state, the use of blown fuse or disconnected load fuse can through the center of rubber sealing cover structure, after melting a pop-up have clear instructions, at the bottom of the weld pipe also increased the reset sets, positioning spring, dynamic contact, when the fuse overload open circuit, fusion tube can be reset and slid down the casing, under contact and moving contact (reset sets), the fusion tube sliding out, which can be easily found that won't delay overhaul, bring convenience to the operating personnel, the product easy to install and arbitrary Angle operation.featureThe body of the closed-type jet fuse is integrated, sealed, fully insulated, and has solved the insufficiency of the insulation and anti-fouling performance of the traditional falling type fuse.
Upper and lower export leads adopt the rubber integrated structure, which can effectively resist dust pollution and salt pollution, and have high weather-ability.
The ceramic base of the body is designed as the sealing mechanism. The material is selected with high weather-resistant polyethylene resin and is protected by sealing cover. It has excellent sealing performance and weatherability.
After the open - break fuse pops up, the bottom sealing cap drops, as the open - cut instruction is easy to identify. The injection type fuse has the function of load current, which can be carried out by simple tool.

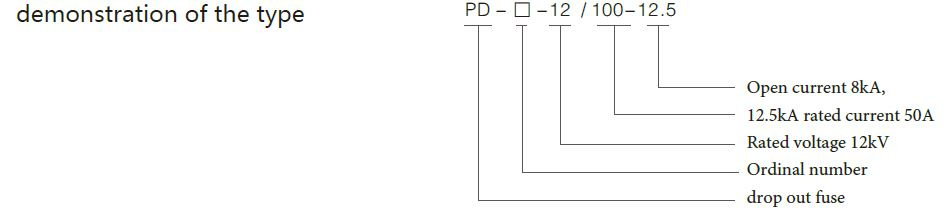

| Prod Model: |
PD1-12 |
| Breaking Capacity: |
High |
| Type: |
Current Fuse |
| Usaga: |
High Voltage |
| Fusing Device: |
Fuse |
