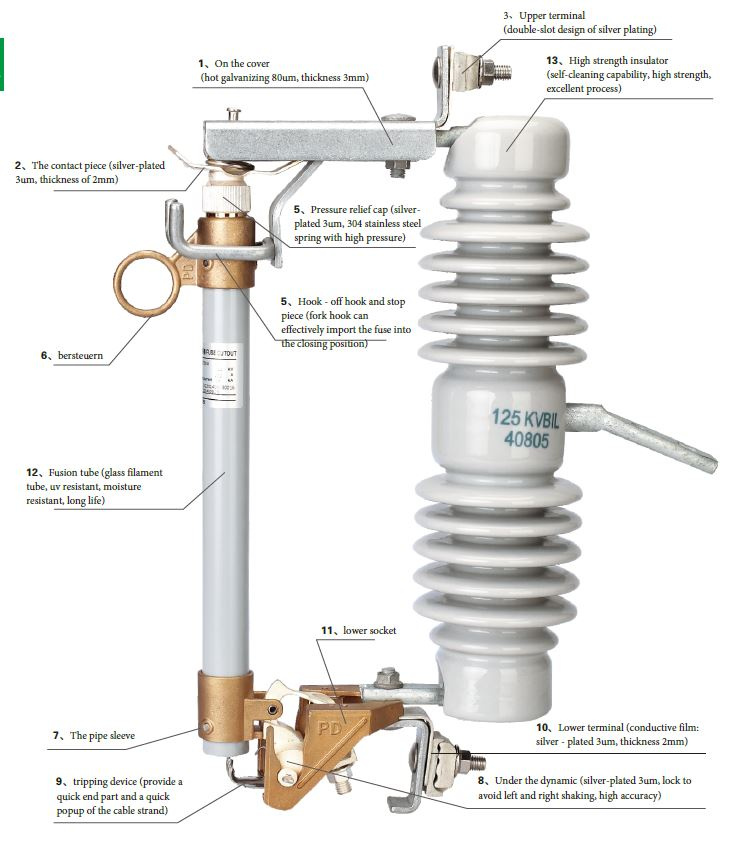

Drop-out Fuse Cutout (Standard-type)

Name: Drop-out Fuse Cutout (Standard-type)
Brand: all-electronics-online.com
SKU: 835289035
Availability: InStock
Rating: 4.5 (82 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Applied range:
PD series drop out fuse is suitable for up to and including 35 kV voltage frequency 50 HZ in the power system, transmission lines, power transformer overload and short circuit protection device. The rated load current only use mechanical life 2000 times or more.

environment:
1. The altitude is 1000m, and the wind speed is not greater than 35m/s (high elevation needs to be customized);
2. the environment temperature is not higher than + 40 ºC, no less than - 30 ºC;
3.   Relative humidity: the daily average is not more than 95%; the monthly average is not greater than 90%;
4.   The earthquake intensity shall not exceed 8 degrees;
5.   No fire, explosion danger, severe defilement, chemical corrosion and violent vibration.

properties of product:
PD series drop out fuse is suitable for up to and including 35 kV voltage frequency 50 HZ in the power system, transmission lines, power transformer overload and short circuit protection device. The rated load current only use mechanical life 2000 times or more.

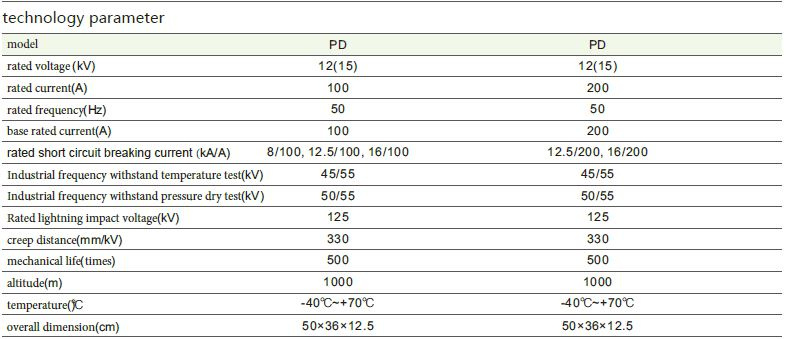

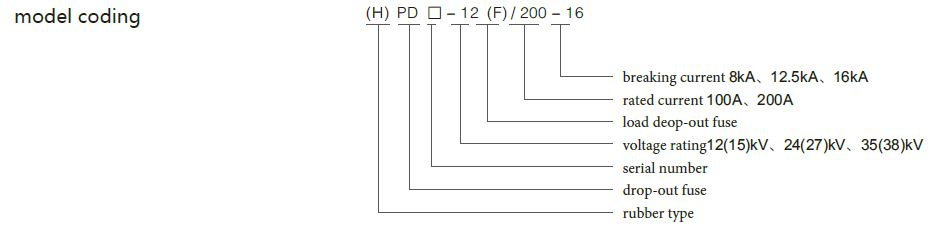

Prod Model:	PD3-12
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage
Fusing Device:	Fuse

Founded on March 7, 1998, Shaanxi Zhenli Electric Power Technology Co., Ltd. (formerly known as Xi'an Zhenli Fuse Co., Ltd. ) was located in F4-402 Lutong Industrial Park, East Section of Kuangshan Road, East Er'huan, Xi'an with the industrial plants covering 1771.08 square meters. As the company business gradually expanded, it was moved to No 2055, Shanglinyuan No. 5 Road, High-tech District, Xi'an in 2017, with three self-built standard plants covering 20847.26 square meters and a total of 80 staff including 8 research staff, 6 professionals and 6 product designers. As required by High-tech District of Xi'an, the company was restructured into Xi'an Xiangyuan Zhenli Electric Co., Ltd., a high-tech enterprise specialized in research and development, production and sales of indoor and outdoor fuses whose production scale and technical level lead the industry in China. So far, the number of fuses running in the power grid in the world is more than 3 million and the company has rich experience of line operation. Its products cover the voltage within 3.6~40.5kV and the current within 0.2A~315A. Its main products belong to new-energy wind-photovoltaic power hybrid power generation system strongly supported and developed by the nation. Currently, its main clients are Schneider, ABB, TBEA, Shandong Taikai, Jiangsu Huapeng and other Top 500 enterprises in the world and listed companies in China. The products are sold as far away as Portugal, Thailand, Mexico, Pakistan and other countries.
