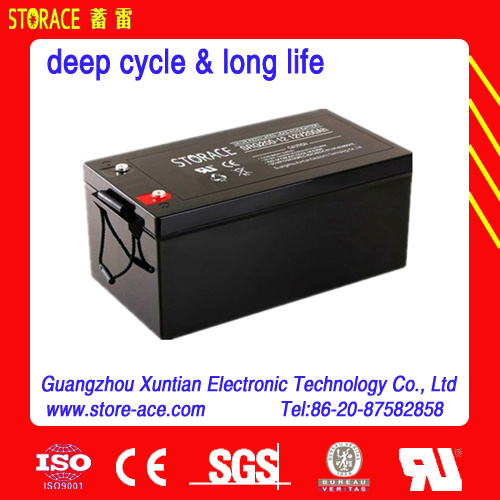

Deep Cycle 12V Battery 12V 200ah

Name: Deep Cycle 12V Battery 12V 200ah
Brand: all-electronics-online.com
SKU: 701812745
Availability: InStock
Rating: 4.3 (133 reviews)

Price:	US $ 125-250/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	30/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Solar series Detailed Product Description

solar series batteries with valve regulated lead acid use particular alloy and material technology design to ensure a excellent performance in various environments, especially high and low temp. solar series baattaeries is optimal for storage and conversion of photovoltaic energy and wind energy.

12V Battery SRD200-12 Solar/Wind power system battery 12V 200ah

Application
Solar street light system, solar power home system, Photovoltaic system, Alternative energy system, Electric Utility, Outdoor control equipment, Railroad Utility, control systems, power systems, wind energy systems, telecommunications/communication systems & UPS system & etc.

Characteristics
1. Long service life: Designed life is over five years.
2. Good deep charge cycle performance: Good performance in charging, over-discharging and deep-discharging.
3. Good resistance to corrosion and small internal resistance.
Widely working environment: The solar battery can be used at widely difference in temperature from subzero 40 degree centigrade to 60 degree centigrade.

Data Sheet

Capacity 77° F(25º C)	20 hours rate(10.2A 10.8V)	204Ah
	10 hours rate(20A 10.8V)	200Ah
	5 hours rate(35A 10.5V)	175Ah
	1 hour rate(125A 9.6V)	125Ah
Internal Resistance	Full charged battery 77° F(25º C): 4mΩ

Capacity affected by Temperature (10 hour rate)	104° F(40º C)	102%
	77° F(25º C)	100%
	32° F(10º C)	85%
	5° F(-15º C)	65%
Self-Discharge 68° F(20º C)	Capacity after 3 month storage	90%
	Capacity after 6 month storage	80%
	Capacity after 12 month storage	60%
Max discharge current77° F(25º C): 1000A(5S)
Charge (Constant Voltage)	Float: 13.6 to 13.8V/77° F/(25º C)
	Cycle: 14.4 to 14.7V/77° F/(25º C)
	Max Current: 50A

Prod Model:	SRD200-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	522240216mm
Weight:	64.00kg
Cell:	6
Color:	Black
Sealing:	Glue Sealing
Battery Cover:	ABS
Separator:	AGM
Terminal:	Boil and Nut
Safety:	Explosion-Proof
Charging Rate:	<0.3c
Type:	Lead-Acid Batteries
Usage:	Solar
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Rechargeable:	Chargeable
Shape:	Rectangle

Guangzhou Xuntian Electronic Technology Co., Ltd.is located in beautiful flower city-----Guangzhou, Guangdong province, China. Our company is a high new technical company, and we focus on research and development of lead acid battery, deep cycle battery and Gel storage battery. Beside, we sale full range of different capacity 12 voltage, 6 voltage or 2 voltage battery.

Storage Battery is used mainly in UPS electric power; Telecommunication; Solar or wind power system; Aerospace and navigation; Bank and medical system; Rail transit; Military area and so on.

After years of development, we builded up a professional product reseach and develop term, and a mature engineering technology reseach centre. With such facility and domestic famous senior engineers of battery production as consultant, our technology is leading in battery production field.

Our reseached and developed storage battery earned a high reputation not only in China but also in all over the world. Our batteries sale to European market; American market; Southeast Asia market; Africa market and Middle East market, what is more, they all received high compliment from customer.
