Dgl-125~4000A Load Isolation Switch

Name: Dgl-125~4000A Load Isolation Switch
Brand: all-electronics-online.com
SKU: 13343
Availability: InStock
Rating: 4.4 (116 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Dgl-125~4000/3(4)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type Of Switch:	Load Isolation Switch
Usage:	Electrical Appliance
Structure:	Screw Shank
Operation:	Knob
Certification:	IEC,GB,CCC,ISO9001
Condition:	New

Product Description

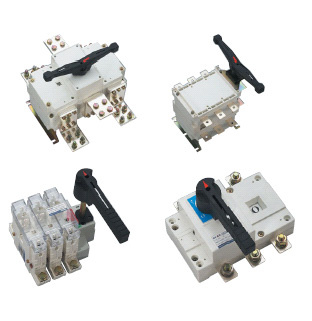

DGL-125-4000A Series Load Isolation Switch
DGL load isolation switch can be divided into 18 specs form 125A to 4000A,it is the basic type of module design,it has three poles and four poles(three poles +switch netural pole),applied to make and break circuit or electric isolate,over 1000A is only for electric isolation.
symbol window on front face indicates the contact on-off state.
Application
AC 50 HZ,660 VAC(rated voltage),440VDC(rated DC voltage),1600A(rated current).it is used for making and breaking circuit infrequently.
service enviroment
· DGL load-isolation switch can operate under the following canditions
· Altitude not more than 2000m;
· The range of ambient temperature is fron 5º C to 40º C;
· Relative humidity not more than 95%;
· The environment without any explosive medium.
· The environment without any rain or snow attacking.
Note: If the product is expected to be used in the environment where temperature is over +40º Cor below-5º C~45º C. Users shall tell it to the manufacturer.

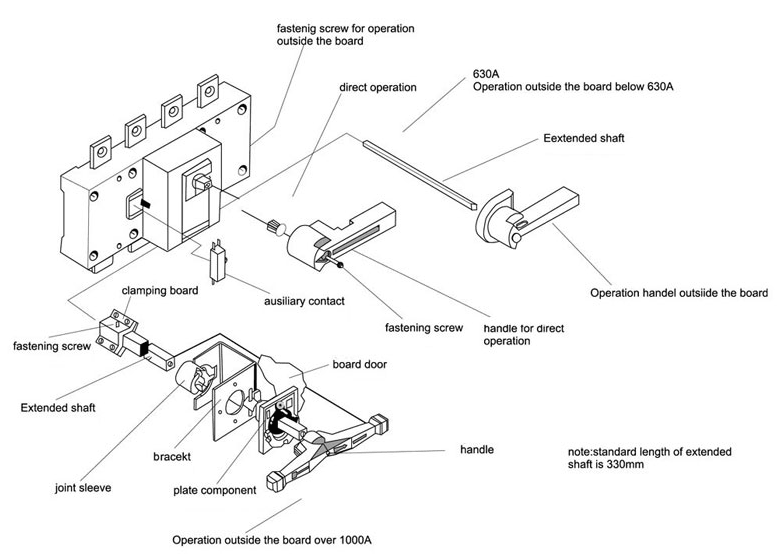

operation model
direct operation:the handle is installed in the middle of switch directly.
operate outside of cabinet:the handle is installed outside of disctrbuion cabinet.
it can be assemble two groups auxiliary contacts.

You can visit our website www.dhecn.com to know more details.
If you find some suitable,you can contact with us.Hoping we can have a mutual benifical cooperation in the near future.
