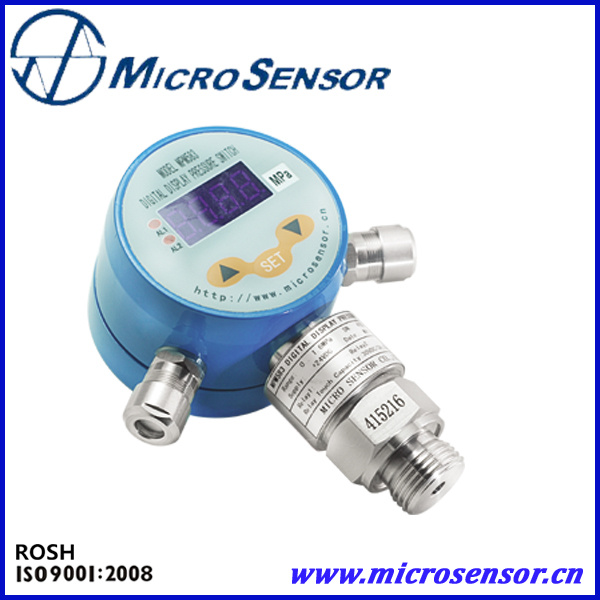

Digtal Mpm583 Pressure Switch for Water

Name: Digtal Mpm583 Pressure Switch for Water
Brand: all-electronics-online.com
SKU: 706623632
Availability: InStock
Rating: 4.5 (108 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

                                        Digtal MPM583 Pressure Switch for water

Features:
1. Digtal display;
2. Easy installation;
3. 2-wire;
4. Panel display

Applications:
1. Oil;
2. Chemical industry;
3. Tap water;
4. Power station;
5. Engineer

Specifications:

1. Accuracy: ±0.5%FS                                             Control accuracy:   ±0.5%FS
2. Stability: ≤0.5%/year                                           Power supply effect: ≤±0.1%FS
3. Control range: -0.10~0.01100MPa                         Power : 13~31VDC(suggested 24VDC)
4. Max.consumption: <1.2W                                    Relay lifetime: >100000 times
5. Relay capacitance: 220VAC/3A 30VDC/3A            Protection: IP65
6. Relay quantity:    2×(NO+NC)                              Pressure port: to see order guide
7. Display: 4 digit 0.36" nixietube, 2 LED lights           Wiring: terminals
8. Display range: -1999~9999
9. Environment temp.: -30ºC~70ºC                              Media temp.: -40ºC~85ºC
10. Storage temp.: -40ºC~85ºC                                Relative humility: 0~80%

Order guide:

MPM583

Digital Display Pressure Switch

Range

Control range: kPa,MPa,mH2O

[0~X]kPa or MPa or mH2O

Control range -0.10~0.01100MPa
X=actual max. pressure value

Code

Relay

Relay: 1,2 are upper limit control

Relay: 1 is upper limit control; 2 is lower limit control

Relay: 1 is lower limit control; 2 is upper limit control

Relay: 1,2 are lower limit control

Code

Construction material

Diaphragm

Iterface

Housing

SS 316L

Aluminum-alloy

Tantalum

Aluminum-alloy

Tantalum

Hastelloy C

Aluminum-alloy

Code

Others

M20×1.5 male, face type seal

G1/2 male

M20×1.5 male, waterline seal

H/L

Upper, lower limit pressure control value

Flush diaphragm: G1/2 male

Gauge

Absolute

Sealed gauge

MPM583 [0~2.0]MPa 10 22 C1(1.0/0.5MPa)G the whole spec

Prod Model:	mpm583
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measurement Range:	-0.1...0~0.01...100MPa
Principle:	Pressure Controller
Wires:	Two-Wires
Long Term Stability:	<=+-0.5%Fs/Y
Accuracy:	+-0.5%Fs(Typ.)
Protection:	IP65
Media Temperature:	-40~85c
Storage Temp:	-40~85c
Humidity:	0~80%
Pressure Range:	Sealed Gauge,Gauge,Absolute
Type:	Electronic
Application:	Industrial
Explosion-proof Type:	Non Explosion-proof
Contact:	Normally Open
Brand:	Micro Sensor
